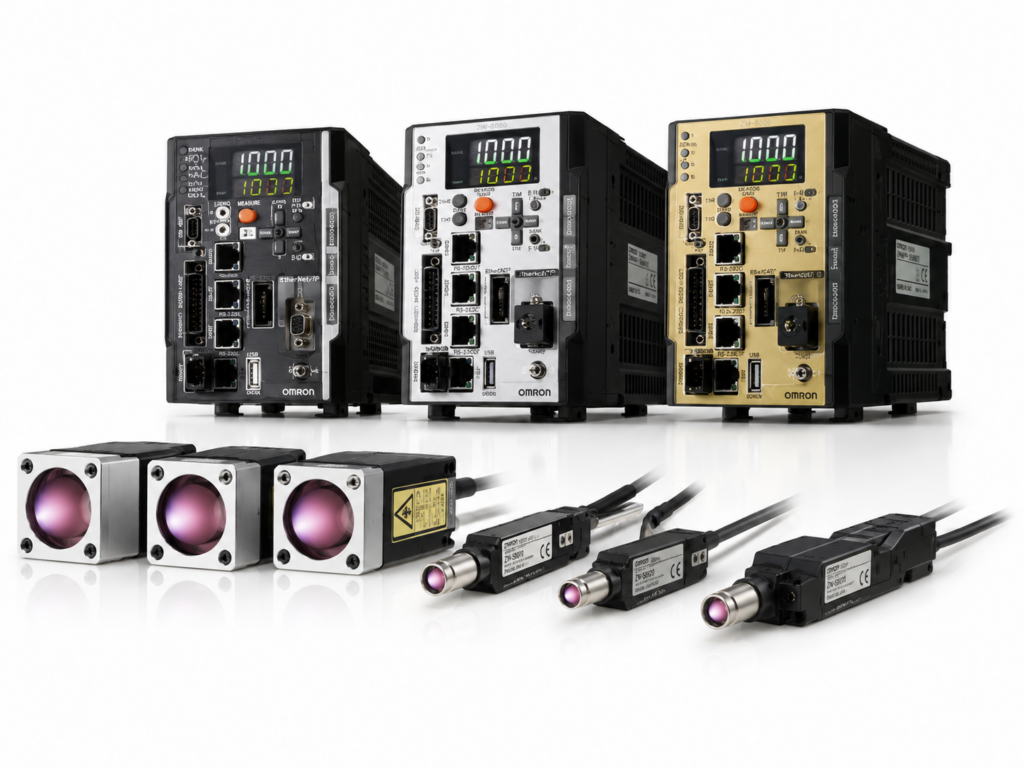

[OMRON] — ZW-8000 Confocal Fiber Displacement Sensor Head (Square / Pen-straight / Pen-right-angle)
Family ID: OMRON-ZW-8000-HEAD
OMRON ZW-8000 Series confocal fiber displacement sensor heads. Static resolution 0.25 μm (with ZW-8000T controller). Square straight: ZW-S8010/20/30 (4/7/10 μm spot). Pen straight: ZW-SP8007/8010 (7/10 μm spot). Pen right-angle: ZW-SPR8007/8010 (8/11 μm spot). Cable 2 m and 0.3 m. Extension fiber cables sold separately.
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ZW-S8010 2M | ZW-8000 Square straight 4 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 4 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-S8010 0.3M | ZW-8000 Square straight 4 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 4 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-S8020 2M | ZW-8000 Square straight 7 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 7 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-S8020 0.3M | ZW-8000 Square straight 7 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 7 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-S8030 2M | ZW-8000 Square straight 10 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 10 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-S8030 0.3M | ZW-8000 Square straight 10 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Square straight | Spot Diameter: 10 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-SP8007 2M | ZW-8000 Pen straight 7 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen straight | Spot Diameter: 7 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-SP8007 0.3M | ZW-8000 Pen straight 7 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen straight | Spot Diameter: 7 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-SP8010 2M | ZW-8000 Pen straight 10 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen straight | Spot Diameter: 10 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-SP8010 0.3M | ZW-8000 Pen straight 10 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen straight | Spot Diameter: 10 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-SPR8007 2M | ZW-8000 Pen right-angle 8 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen right-angle | Spot Diameter: 8 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-SPR8007 0.3M | ZW-8000 Pen right-angle 8 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen right-angle | Spot Diameter: 8 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach | ||
| ZW-SPR8010 2M | ZW-8000 Pen right-angle 11 μm dia. sensor head 2m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen right-angle | Spot Diameter: 11 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 2 m | ||
| ZW-SPR8010 0.3M | ZW-8000 Pen right-angle 11 μm dia. sensor head 0.3m | OMRON | Series: ZW-8000 | Sensing Method: Confocal fiber displacement | Shape: Pen right-angle | Spot Diameter: 11 μm dia. | Static Resolution: 0.25 μm | Measuring Range: Refer to datasheet | Required Controller: ZW-8000T | Cable Length: 0.3 m | Note: Use Extension Fiber Cable ZW-XF[][]R for longer reach |
