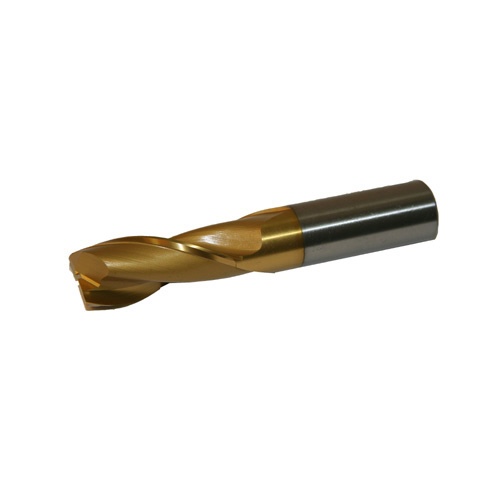

[OSG] — 130148K Coated End Mill
End Mills OSG

[OSG] — 130148K Coated End Mill

Family ID: 311-2315

OSG 130148K Coated End Mill is a coated carbide cutting tool designed for precision milling operations, sourced direct from Korea. End mills in this category are commonly used by machinists and tooling engineers to machine slots, profiles, and contoured surfaces across a range of metal and composite workpiece materials. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

46 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-2315 130148K OSG 2F-39MM (TIN-EDN)(130148K)
311-2449 630000K OSG 2F-2MM(TICN-EDN)(630000K) | Spec: 2 | Flute Length: 6 | Number of Flutes: 2F | Overall Length: 55 | Shank Diameter: 6 | Type: Coated
311-2458 630002K OSG 2F-2.5MM(TICN-EDN)(630002K) | Spec: 2.5 | Flute Length: 7(10) | Number of Flutes: 2F | Overall Length: 55(50) | Shank Diameter: 6 | Type: Coating
311-2467 630004K OSG 2F-3MM(TICN-EDN)(630004K) | Spec: 3 | Flute Length: 10(10) | Flutes: 2F | Overall Length: 55(50) | Shank d: 6 | Type: Coated
311-2476 630006K OSG 2F-3.5MM(TICN-EDN)(630006K) | Spec: 3.5 | Flute Length: 12 | Flute Count: 2F | Overall Length: 60 | Shank Dia: 8 | Type: Coated
311-2485 630008K OSG 2F-4MM(TICN-EDN)(630008K) | Spec: 4 | Flute Length: 12 | Flute Count: 2F | Overall Length: 60 | Shank Diameter: 8 | Type: Coated
311-2494 630010K OSG 2F-4.5MM(TICN-EDN)(630010K) | Spec: 4.5 | Flute Length: 15 | Number of Flutes: 2F | Overall Length: 65(60) | Shank Diameter: 8 | Type: Coated
311-2500 630012K OSG 2F-5MM(TICN-EDN)(630012K) | Spec: 5 | Flute Length: 15 | Number of Flutes: 2F | Overall Length: 65(60) | Shank Diameter: 8 | Type: Coated
311-2519 630014K OSG 2F-5.5MM(TICN-EDN)(630014K) | Spec: 5.5 | Flute Length: 15 | Flute Count: 2F | Overall Length: 65(60) | Shank Diameter: 8 | Type: Coated
311-2528 630016K OSG 2F-6MM(TICN-EDN)(630016K) | Spec: 6 | Flute Length: 15 | Number of Flutes: 2F | Overall Length: 65(60) | Shank Diameter: 8 | Type: Coating
311-2537 630018K OSG 2F-6.5MM(TICN-EDN)(630018K) | Spec: 6.5 | Flute Length: 20 | Number of Flutes: 2F | Overall Length: 75(60) | Shank d: 10 | Type: Coating
311-2546 630020K OSG 2F-7MM(TICN-EDN)(630020K) | Spec: 7 | Flute Length: 20 | Flute Count: 2F | Overall Length: 75(60) | Shank Diameter: 10 | Type: Coated
311-2555 630022K OSG 2F-7.5MM (TICN-EDN)(630022K) | Spec: 7.5 | Flute Length: 20 | Number of Flutes: 2F | Overall Length: 75(60) | Shank Diameter: 10 | Type: Coated
311-2564 630024K OSG 2F-8MM(TICN-EDN)(630024K) | Spec: 8 | Flute Length: 20 | Number of Flutes: 2F | Overall Length: 75(60) | Shank Diameter: 10 | Type: Coated
311-2573 630026K OSG 2F-8.5MM (TICN-EDN)(630026K) | Spec: 8.5 | Flute Length: 25 | Flute Count: 2F | Overall Length: 80(70) | Shank Diameter: 10 | Type: Coated
311-2582 630028K OSG 2F-9MM(TICN-EDN)(630028K) | Spec: 9 | Flute Length: 25 | Number of Flutes: 2F | Overall Length: 80(70) | Shank d: 10 | Type: Coated
311-2591 630030K OSG 2F-9.5MM(TICN-EDN)(630030K) | Spec: 9.5 | Flute Length: 25 | Flute Count: 2F | Overall Length: 80(70) | Shank Diameter: 10 | Type: Coated
311-2607 630032K OSG 2F-10MM(TICN-EDN)(630032K) | Spec: 10 | Flute Length: 25 | Flute Count: 2F | Overall Length: 80(70) | Shank d: 10 | Type: Coated
311-2616 630036K OSG 2F-11MM(TICN-EDN)(630036K) | Spec: 11 | Flute Length: 30 | Number of Flutes: 2F | Overall Length: 90(80) | Shank Diameter: 12 | Type: Coated
311-2634 630040K OSG 2F-12MM(TICN-EDN)(630040K) | Spec: 12 | Flute Length: 30 | Flute Count: 2F | Overall Length: 90(80) | Shank Diameter: 12 | Type: Coating
311-2643 630044K OSG 2F-13MM(TICN-EDN)(630044K) | Spec: 13 | Flute Length: 35 | Number of Flutes: 2F | Overall Length: 95(85) | Shank Diameter: 12 | Type: Coated
311-2652 630048K OSG 2F-14MM (TICN-EDN)(630048K) | Spec: 14 | Flute Length: 35 | Number of Flutes: 2F | Overall Length: 100(90) | Shank Diameter: 16 | Type: Coated
311-2661 630052K OSG 2F-15MM(TICN-EDN)(630052K) | Spec: 15 | Flute Length: 40 | Flute Count: 2F | Overall Length: 105(95) | Product Name: Coated | Shank Diameter: 16
311-2670 630056K OSG 2F-16MM(TICN-EDN)(630056K) | Spec: 16 | Flute Length: 40 | Number of Flutes: 2F | Overall Length: 105(95) | Shank Diameter: 16 | Type: Coated
311-2689 630060K OSG 2F-17MM(TICN-EDN)(630060K) | Spec: 17 | Flute Length: 40 | Number of Flutes: 2F | Overall Length: 105(95) | Shank Diameter: 16 | Type: Coated
311-2698 630064K OSG 2F-18MM(TICN-EDN)(630064K) | Spec: 18 | Flute Length: 40 | Number of Flutes: 2F | Overall Length: 105(95) | Shank Diameter: 16 | Type: Coated
311-2704 630068K OSG 2F-19MM(TICN-EDN)(630068K) | Spec: 19 | Flute Length: 45 | Flute Count: 2F | Overall Length: 115(110) | Shank Diameter: 20 | Type: Coated
311-2713 630072K OSG 2F-20MM(TICN-EDN)(630072K) | Spec: 20 | Flute Length: 45 | Number of Flutes: 2F | Overall Length: 115(110) | Shank Diameter: 20 | Type: Coated 2F
311-2722 630076K OSG 2F-21MM(TICN-EDN)(630076K) | Spec: 21 | Flute Length: 45 | Number of Flutes: 2F | Overall Length: 115(110) | Shank Diameter: 20 | Type: Coated
311-2731 630080K OSG 2F-22MM(TICN-EDN)(630080K) | Spec: 22 | Flute Length: 45 | Number of Flutes: 2F | Overall Length: 115(110) | Shank Diameter: 20 | Type: Coated
311-2740 630084K OSG 2F-23MM(TICN-EDN)(630084K) | Spec: 23 | Flute Length: 50 | Number of Flutes: 2F | Overall Length: 125(120) | Shank Diameter: 25 | Type: Coated
311-2759 630088K OSG 2F-24MM(TICN-EDN)(630088K) | Spec: 24 | Flute Length: 50 | Number of Flutes: 2F | Overall Length: 125(120) | Shank Diameter: 25 | Type: Coated
311-2768 630092K OSG 2F-25MM(TICN-EDN)(630092K) | Spec: 25 | Flute Length: 50 | Number of Flutes: 2F | Overall Length: 125(120) | Shank Diameter: 25 | Type: Coated
311-2777 630096K OSG 2F-26MM (TICN-EDN)(630096K) | Spec: 26 | Flute Length: 50 | Number of Flutes: 2F | Overall Length: 125(120) | Shank Diameter: 25 | Type: Coated
311-2786 630100K OSG 2F-27MM(TICN-EDN)(630100K) | Spec: 27 | Flute Length: 55 | Number of Flutes: 2F | Overall Length: 125 | Shank Diameter: 25 | Type: Coated
311-2795 630108K OSG 2F-29MM(TICN-EDN)(630108K) | Spec: 29 | Flute Length: 55 | Flutes: 2F | Overall Length: 125 | Shank d: 25 | Type: Coating
311-2801 630112K OSG 2F-30MM(TICN-EDN)(630112K) | Spec: 30 | Flute Length: 55 | Flute Count: 2F | Overall Length: 125 | Shank Diameter: 25 | Type: Coated
311-2810 630116K OSG 2F-31MM(TICN-EDN)(630116K) | Spec: 31 | Flute Length: 60 | Number of Flutes: 2F | Overall Length: 145 | Shank Diameter: 32 | Type: Coated
311-2829 630120K OSG 2F-32MM(TICN-EDN)(630120K) | Spec: 32 | Flute Length: 60 | Flute Count: 2F | Overall Length: 145 | Shank Diameter: 32 | Type: Coated
312-8626 630104K OSG 2F-28MM (TICN-EDN)(630104K) | Spec: 28 | Flute Length: 55 | Flute Count: 2F | Overall Length: 125 | Shank Diameter: 25 | Type: Coated
313-8030 630124K OSG 2F-33MM(TICN-EDN)(630124K) | Spec: 33 | Flute Length: 60 | Flute Count: 2F | Overall Length: 145 | Shank Diameter: 32 | Form: Coated
313-8058 630128K OSG 2F-34MM(TICN-EDN)(630128K) | Spec: 34 | Flute Length: 60 | Number of Flutes: 2F | Overall Length: 145 | Shank Diameter: 32 | Type: Coated
313-8076 630140K OSG 2F-37MM(TICN-EDN)(630140K) | Spec: 37 | Flute Length: 65 | Number of Flutes: 2F | Overall Length: 150 | Shank Diameter: 32 | Type: Coated
313-8085 630144K OSG 2F-38MM(TICN-EDN)(630144K) | Spec: 38 | Flute Length: 65 | Flutes: 2F | Overall Length: 150 | Shank d: 32 | Type: Coating
313-8094 630148K OSG 2F-39MM(TICN-EDN)(630148K) | Spec: 39 | Flute Length: 2F | Number of Flutes: 2F | Overall Length: 150 | Shank Diameter: 32 | Type: Coating
313-8100 630152K OSG 2F-40MM(TICN-EDN)(630152K) | Spec: 40 | Flute Length: 65 | Number of Flutes: 2F | Overall Length: 150 | Shank d: 32 | Type: Coated
