[WIDIN] — B302020 Carbide Ball End Mill
End Mills WIDIN

[WIDIN] — B302020 Carbide Ball End Mill

Family ID: 386-6975

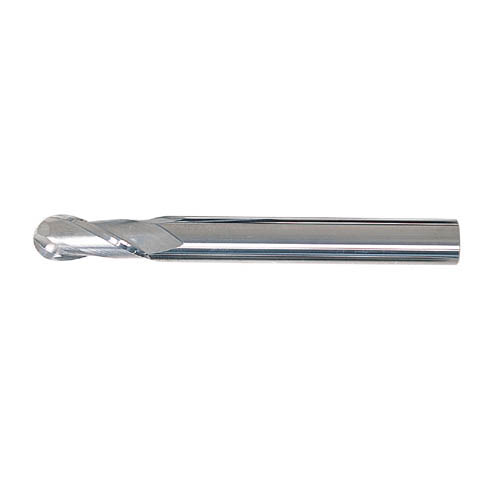

WIDIN B302020 Carbide Ball End Mill is a solid carbide cutting tool designed for precision milling of curved surfaces and complex 3D contours, sourced direct from Korea. Ball end mills of this type are widely used in mold and die work, aerospace component machining, and general CNC profiling where smooth radial cutting paths are required. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.

9 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
386-6975 B302020 WIDIN 2F*2MM*1R(B302020) | Spec: 1.0 | Cutting Length: 6 | Overall Length: 60 | Shank Diameter: 6
386-6984 B302030 WIDIN 2F*3MM*1.5R(B302030) | Spec: 1.5 | Cutting Length: 8 | Overall Length: 70 | Shank Diameter: 6
386-7035 B302060 WIDIN 2F*6MM*3R(B302060) | Spec: 3.0 | Cutting Length: 12 | Overall Length: 90 | Shank Diameter: 6
386-7044 B302065 WIDIN 2F*6.5MM*3.25R(B302065)
386-7062 B302080 WIDIN 2F*8MM*4R(B302080) | Spec: 4.0 | Cutting Length: 20 | Overall Length: 100 | Shank Diameter: 8
386-7071 B302090 WIDIN 2F*9MM*4.5R(B302090) | Spec: 4.5 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7080 B302100 WIDIN 2F*10MM*5R(B302100) | Spec: 5.0 | Cutting Length: 25 | Overall Length: 100 | Shank Diameter: 10
386-7099 B302110 WIDIN 2F*11MM*5.5R(B302110) | Spec: 5.5 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
386-7105 B302120 WIDIN 2F*12MM*6R(B302120) | Spec: 6.0 | Cutting Length: 30 | Overall Length: 110 | Shank Diameter: 12
