[OSG] — 80803K Ball End Mill

Family ID: 311-3925

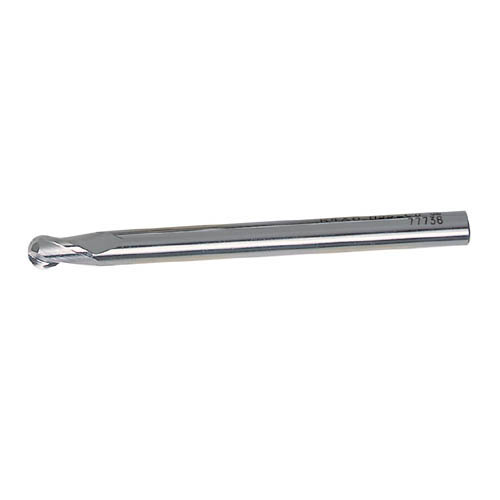

OSG 80803K Ball End Mill is a spherical-tipped cutting tool designed for contoured milling and 3D profiling operations, sourced direct from Korea. Ball end mills of this type are commonly used in mold and die machining, aerospace component finishing, and any application requiring smooth curved surface interpolation. Request a quote today for export-ready supply, competitive Korean factory pricing, and reliable fulfillment through a KITA-registered exporter.

11 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-3925 80803K OSG EBD R1.5 (3.0MM)(80803K) | Spec: 1.5 | Flute Length: 8 | Overall Length: 60 | Product Name: Standard | Shank Diameter: 6
311-3943 80805K OSG EBD R2.5 (5.0MM)(80805K) | Spec: 2.5 | Flute Length: 10 | Overall Length: 80 | Product Name: Standard | Shank Diameter: 6
311-3952 80806K OSG EBD R3 (6.0MM)(80806K) | Spec: 3 | Flute Length: 12 | Overall Length: 90 | Product Name: Standard | Shank Diameter: 6
311-3961 80807K OSG EBD R3.5 (7.0MM)(80807K) | Spec: 3.5 | Flute Length: 14 | Overall Length: 90 | Product: Standard | Shank d: 6
311-3970 80808K OSG EBD R4 (8.0MM)(80808K) | Spec: 4 | Flute Length: 14 | Overall Length: 100 | Product: General | Shank Diameter: 8
311-3998 80810K OSG EBD R5 (10.0MM)(80810K) | Spec: 5 | Flute Length: 18 | Overall Length: 100 | Product Name: Standard | Shank Diameter: 10
311-4003 80811K OSG EBD R5.5 (11.0MM)(80811K) | Spec: 5.5 | Flute Length: 22 | Overall Length: 100 | Product Name: Standard | Shank d: 10
311-4012 80812K OSG EBD R6 (12.0MM)(80812K) | Spec: 6 | Flute Length: 22 | Overall Length: 110 | Product Name: Standard | Shank Diameter: 12
311-4021 80813K OSG EBD R6.5 (13.0MM)(80813K) | Spec: 6.5 | Flute Length: 26 | Overall Length: 110 | Product Name: Standard | Shank Diameter: 12
311-4030 80814K OSG EBD R7 (14.0MM)(80814K) | Spec: 7 | Flute Length: 26 | Overall Length: 110 | Product Name: Standard | Shank Diameter: 12
311-4058 80816K OSG EBD R8 (16.0MM)(80816K) | Spec: 8 | Flute Length: 30 | Overall Length: 140 | Product Name: General Purpose | Shank d: 16
