End Mills
YG-1

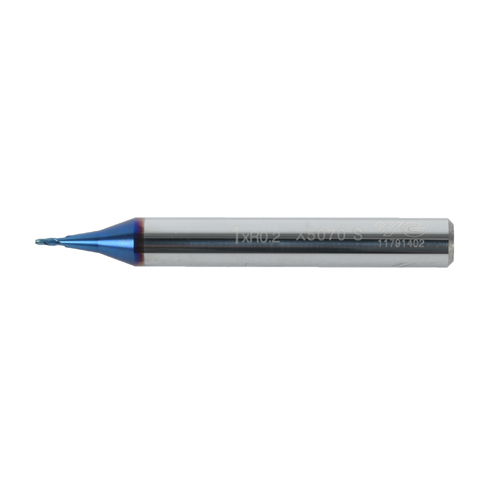

[YG-1] — SG8A36008005 Carbide End Mill Carbide Radius End Mill (X5070S)
Family ID: 304-5110
Carbide Radius End Mill (X5070S) from YG-1, sourced from Korea.
27 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-5110 | SG8A36008005 | YG-1 | 2F-0.8(R0.05)*4*1.6*40MM(SG8A36008005) | Spec: 0.8 | Flute Length: 1.6 | Overall Length: 40 | Shank d: 4 | Corner R: 0.05 | ||
| 304-5606 | SG8A36004005 | YG-1 | 2F-0.4(R0.05)*4*0.8*40(SG8A36004005) | Spec: 0.4 | Flute Length: 0.8 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.05 | ||
| 304-7677 | SG8A36005005 | YG-1 | 2F-0.5(R0.05)*4*1*40MM(SG8A36005005) | Spec: 0.5 | Flute Length: 1.0 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.05 | ||
| 304-7853 | SG8A3602005 | YG-1 | 2F-2(R0.5)*6*5*50MM(SG8A3602005) | Spec: 2.0 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 304-7862 | SG8A3602001 | YG-1 | 2F-2(R0.1)*6*5*50MM(SG8A3602001) | Spec: 2.0 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 0.1 | ||
| 305-2493 | SG8A3600501 | YG-1 | 2F-0.5(R0.1)*4*1*40MM(SG8A3600501) | Spec: 0.5 | Flute Length: 1.0 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.1 | ||
| 305-2509 | SG8A36006005 | YG-1 | 2F-0.6(R0.05)*4*1.2*40MM(SG8A36006005) | Spec: 0.6 | Flute Length: 1.2 | Overall Length: 40 | Shank d: 4 | Corner R: 0.05 | ||
| 305-2518 | SG8A3600601 | YG-1 | 2F-0.6(R0.1)*4*1.2*40MM(SG8A3600601) | Spec: 0.6 | Flute Length: 1.2 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.1 | ||
| 305-2527 | SG8A36007005 | YG-1 | 2F-0.7(R0.05)*4*1.4*40MM(SG8A36007005) | Spec: 0.7 | Flute Length: 1.4 | Overall Length: 40 | Shank d: 4 | Corner R: 0.05 | ||
| 305-2536 | SG8A3600701 | YG-1 | 2F-0.7(R0.1)*4*1.4*40MM(SG8A3600701) | Spec: 0.7 | Flute Length: 1.4 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.1 | ||
| 305-2545 | SG8A3600401 | YG-1 | 2F-0.4(R0.1)*4*0.8*40MM(SG8A3600401) | Spec: 0.4 | Flute Length: 0.8 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.1 | ||
| 305-2554 | SG8A3600801 | YG-1 | 2F-0.8(R0.1)*4*1.6*40MM(SG8A3600801) | Spec: 0.8 | Flute Length: 1.6 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.1 | ||
| 305-2563 | SG8A36009005 | YG-1 | 2F-0.9(R0.05)*4*1.8*40MM(SG8A36009005) | Spec: 0.9 | Flute Length: 1.8 | Overall Length: 40 | Shank Diameter: 4 | Corner Radius: 0.05 | ||
| 305-2572 | SG8A3600901 | YG-1 | 2F-0.9(R0.1)*4*1.8*40MM(SG8A3600901) | Spec: 0.9 | Flute Length: 1.8 | Overall Length: 40 | Shank d: 4 | Corner R: 0.1 | ||
| 305-2581 | SG8A36010005 | YG-1 | 2F-1(R0.05)*6*2*50MM(SG8A36010005) | Spec: 1.0 | Flute Length: 2 | Overall Length: 50 | Shank d: 6 | Corner R: 0.05 | ||
| 305-2590 | SG8A3601001 | YG-1 | 2F-1(R0.1)*6*2*50MM(SG8A3601001) | Spec: 1.0 | Flute Length: 2 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 305-2606 | SG8A3601002 | YG-1 | 2F-1(R0.2)*6*2*50MM(SG8A3601002) | Spec: 1.0 | Flute Length: 2 | Overall Length: 50 | Shank d: 6 | Corner R: 0.2 | ||
| 305-2615 | SG8A36015005 | YG-1 | 2F-1.5(R0.05)*6*3*50MM(SG8A36015005) | Spec: 1.5 | Flute Length: 2 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.05 | ||
| 305-2624 | SG8A3601501 | YG-1 | 2F-1.5(R0.1)*6*3*50MM(SG8A3601501) | Spec: 1.5 | Flute Length: 3 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 305-2633 | SG8A3601502 | YG-1 | 2F-1.5(R0.2)*6*3*50MM(SG8A3601502) | Spec: 1.5 | Flute Length: 3 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 305-2642 | SG8A3601503 | YG-1 | 2F-1.5(R0.3)*6*3*50MM(SG8A3601503) | Spec: 1.5 | Flute Length: 3 | Overall Length: 50 | Shank Dia: 6 | Corner R: 0.3 | ||
| 305-2651 | SG8A3601505 | YG-1 | 2F-1.5(R0.5)*6*3*50MM(SG8A3601505) | Spec: 1.5 | Flute Length: 3 | Overall Length: 50 | Shank d: 6 | Corner R: 0.5 | ||
| 305-2679 | SG8A3602002 | YG-1 | 2F-2(R0.2)*6*5*50MM(SG8A3602002) | Spec: 2.0 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 305-2688 | SG8A3602003 | YG-1 | 2F-2(R0.3)*6*5*50MM(SG8A3602003) | Spec: 2.0 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 305-2697 | SG8A3602501 | YG-1 | 2F-2.5(R0.1)*6*7*60MM(SG8A3602501) | Spec: 2.5 | Flute Length: 7 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 305-2703 | SG8A3602502 | YG-1 | 2F-2.5(R0.2)*6*7*60MM(SG8A3602502) | Spec: 2.5 | Flute Length: 7 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 305-2712 | SG8A3602503 | YG-1 | 2F-2.5(R0.3)*6*7*60MM(SG8A3602503) | Spec: 2.5 | Flute Length: 7 | Overall Length: 60 | Shank Dia: 6 | Corner R: 0.3 |
