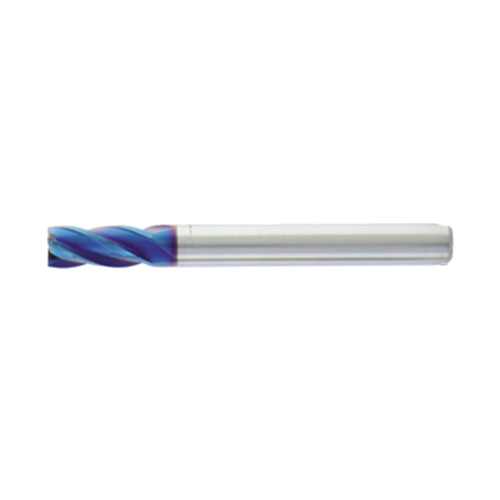

[YG-1] — SG8A02010 Carbide End Mill Carbide End Mill (X5070S)
End Mills YG-1

[YG-1] — SG8A02010 Carbide End Mill Carbide End Mill (X5070S)

Family ID: 305-2156

Carbide End Mill (X5070S) from YG-1, sourced from Korea.

8 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
305-2156 SG8A02010 YG-1 4F-1*6*2.5*50MM(SG8A02010) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank d: 6
305-2165 SG8A02012 YG-1 4F-1.2*6*3*50MM(SG8A02012) | Spec: 1.2 | Flute Length: 3 | Overall Length: 50 | Shank Diameter: 6
305-2174 SG8A02015 YG-1 4F-1.5*6*4*50MM(SG8A02015) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6
305-2183 SG8A02020 YG-1 4F-2*6*6*50MM(SG8A02020) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6
305-2192 SG8A02025 YG-1 4F-2.5*6*7*50MM(SG8A02025) | Spec: 2.5 | Flute Length: 7 | Overall Length: 50 | Shank Diameter: 6
305-2217 SG8A02030 YG-1 4F-3*6*8*60MM(SG8A02030) | Spec: 3.0 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
305-2226 SG8A02035 YG-1 4F-3.5*6*9*60MM(SG8A02035) | Spec: 3.5 | Flute Length: 9 | Overall Length: 60 | Shank Diameter: 6
305-2235 SG8A02040 YG-1 4F-4*6*10*60MM(SG8A02040) | Spec: 4.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
