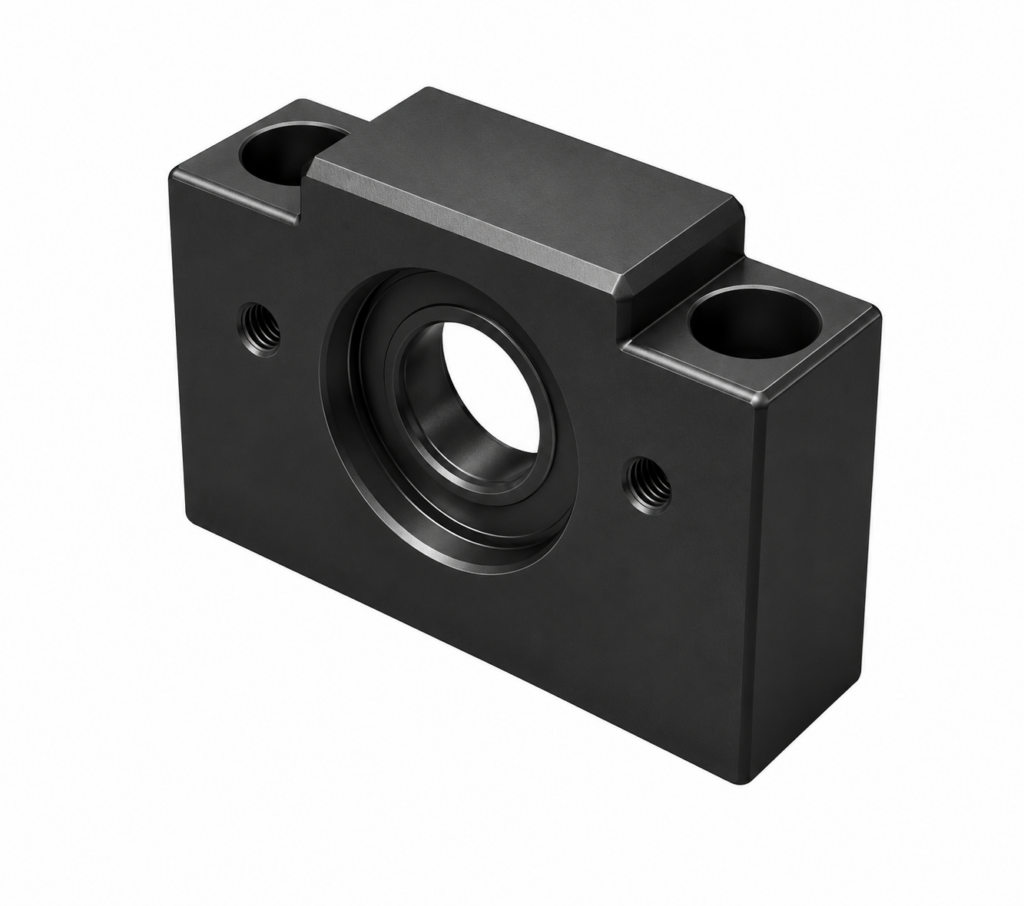

[THK] — BF Support Unit (Support Side, Square Type, for Ball Screw)

Family ID: THK-BF

THK BF-type Ball Screw Support Unit (support side, square housing). Deep groove ball bearing with snap ring for simple support-side mounting. Compact and simple installation. Shaft diameter range φ8~40mm.

9 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
BF10	THK BF10, Support Side Unit, φ8mm	THK	Shaft Diameter: φ8mm \| Housing Length L: 20mm \| Width B: 60mm \| Height H: 39mm \| b: 30mm \| h1: 22mm \| B1: 34mm \| H1: 32.5mm \| Bearing: 608ZZ \| Snap Ring: C8 \| Mass: 0.29kg \| Type: Support Side, Square Housing (BF)
BF12	THK BF12, Support Side Unit, φ10mm	THK	Shaft Diameter: φ10mm \| Housing Length L: 20mm \| Width B: 60mm \| Height H: 43mm \| b: 30mm \| h1: 25mm \| B1: 35mm \| H1: 32.5mm \| Bearing: 6000ZZ \| Snap Ring: C10 \| Mass: 0.3kg \| Type: Support Side, Square Housing (BF)
BF15	THK BF15, Support Side Unit, φ15mm	THK	Shaft Diameter: φ15mm \| Housing Length L: 20mm \| Width B: 70mm \| Height H: 48mm \| b: 35mm \| h1: 28mm \| B1: 40mm \| H1: 38.0mm \| Bearing: 6002ZZ \| Snap Ring: C15 \| Mass: 0.38kg \| Type: Support Side, Square Housing (BF)
BF17	THK BF17, Support Side Unit, φ17mm	THK	Shaft Diameter: φ17mm \| Housing Length L: 23mm \| Width B: 86mm \| Height H: 64mm \| b: 43mm \| h1: 39mm \| B1: 50mm \| H1: 55.0mm \| Bearing: 6203ZZ \| Snap Ring: C17 \| Mass: 0.74kg \| Type: Support Side, Square Housing (BF)
BF20	THK BF20, Support Side Unit, φ20mm	THK	Shaft Diameter: φ20mm \| Housing Length L: 26mm \| Width B: 88mm \| Height H: 60mm \| b: 44mm \| h1: 34mm \| B1: 52mm \| H1: 50.0mm \| Bearing: 6004ZZ \| Snap Ring: C20 \| Mass: 0.76kg \| Type: Support Side, Square Housing (BF)
BF25	THK BF25, Support Side Unit, φ25mm	THK	Shaft Diameter: φ25mm \| Housing Length L: 30mm \| Width B: 106mm \| Height H: 80mm \| b: 53mm \| h1: 48mm \| B1: 64mm \| H1: 70.0mm \| Bearing: 6205ZZ \| Snap Ring: C25 \| Mass: 1.42kg \| Type: Support Side, Square Housing (BF)
BF30	THK BF30, Support Side Unit, φ30mm	THK	Shaft Diameter: φ30mm \| Housing Length L: 32mm \| Width B: 128mm \| Height H: 89mm \| b: 64mm \| h1: 51mm \| B1: 76mm \| H1: 78.0mm \| Bearing: 6206ZZ \| Snap Ring: C30 \| Mass: 1.97kg \| Type: Support Side, Square Housing (BF)
BF35	THK BF35, Support Side Unit, φ35mm	THK	Shaft Diameter: φ35mm \| Housing Length L: 32mm \| Width B: 140mm \| Height H: 96mm \| b: 70mm \| h1: 52mm \| B1: 88mm \| H1: 79.0mm \| Bearing: 6207ZZ \| Snap Ring: C35 \| Mass: 2.22kg \| Type: Support Side, Square Housing (BF)
BF40	THK BF40, Support Side Unit, φ40mm	THK	Shaft Diameter: φ40mm \| Housing Length L: 37mm \| Width B: 160mm \| Height H: 110mm \| b: 80mm \| h1: 60mm \| B1: 100mm \| H1: 90.0mm \| Bearing: 6208ZZ \| Snap Ring: C40 \| Mass: 3.27kg \| Type: Support Side, Square Housing (BF)
