Ball Screws
THK

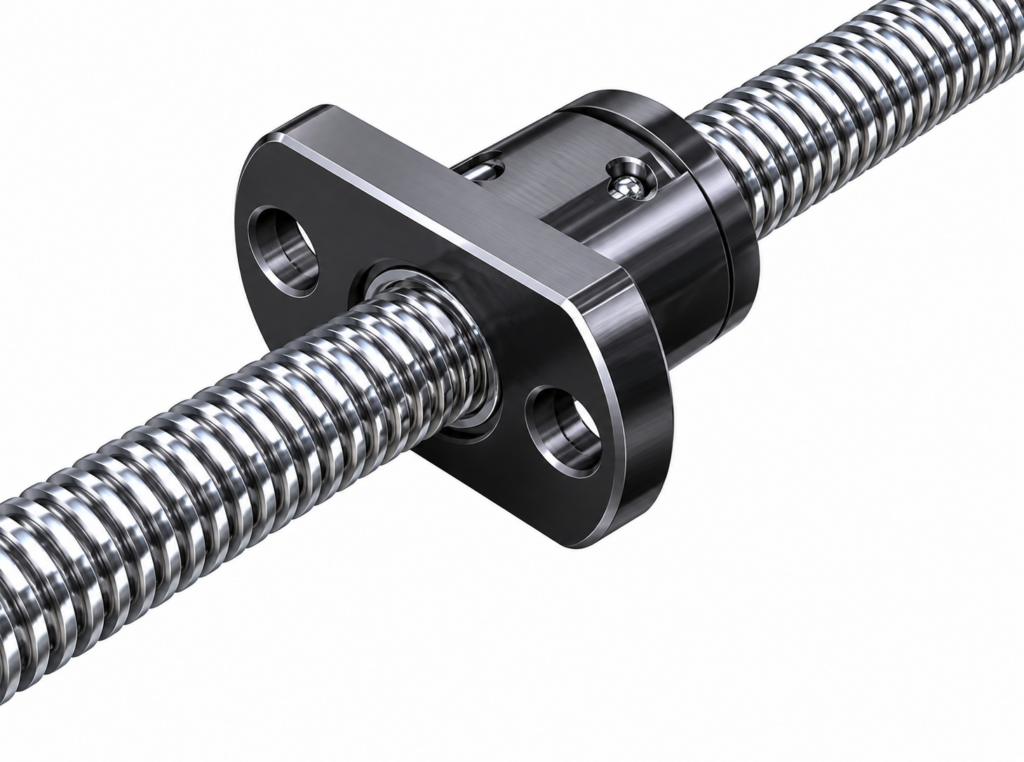

[THK] — MTF Rolled Ball Screw (Unfinished Shaft End, Non-preloaded, φ6~12)
Family ID: THK-MTF
THK MTF Series Rolled Ball Screw with unfinished shaft end (Non-preloaded type). Sold as set (nut + shaft) only. Standard AP-C surface treatment on nut. DN value 50,000. Shaft diameter range φ6~12mm, lead 1~2mm. Grade C7.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MTF0601-3.7+150LC7T | THK MTF0601-3.7, φ6 Lead1, L=150mm, C7 | THK | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF0601-3.7+250LC7T | THK MTF0601-3.7, φ6 Lead1, L=250mm, C7 | THK | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF0802-3.7+150LC7T | THK MTF0802-3.7, φ8 Lead2, L=150mm, C7 | THK | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF0802-3.7+250LC7T | THK MTF0802-3.7, φ8 Lead2, L=250mm, C7 | THK | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF1002-3.7+200LC7T | THK MTF1002-3.7, φ10 Lead2, L=200mm, C7 | THK | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF1002-3.7+300LC7T | THK MTF1002-3.7, φ10 Lead2, L=300mm, C7 | THK | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF1202-3.7+200LC7T | THK MTF1202-3.7, φ12 Lead2, L=200mm, C7 | THK | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) | ||
| MTF1202-3.7+300LC7T | THK MTF1202-3.7, φ12 Lead2, L=300mm, C7 | THK | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF) |
