Ball Screws
THK

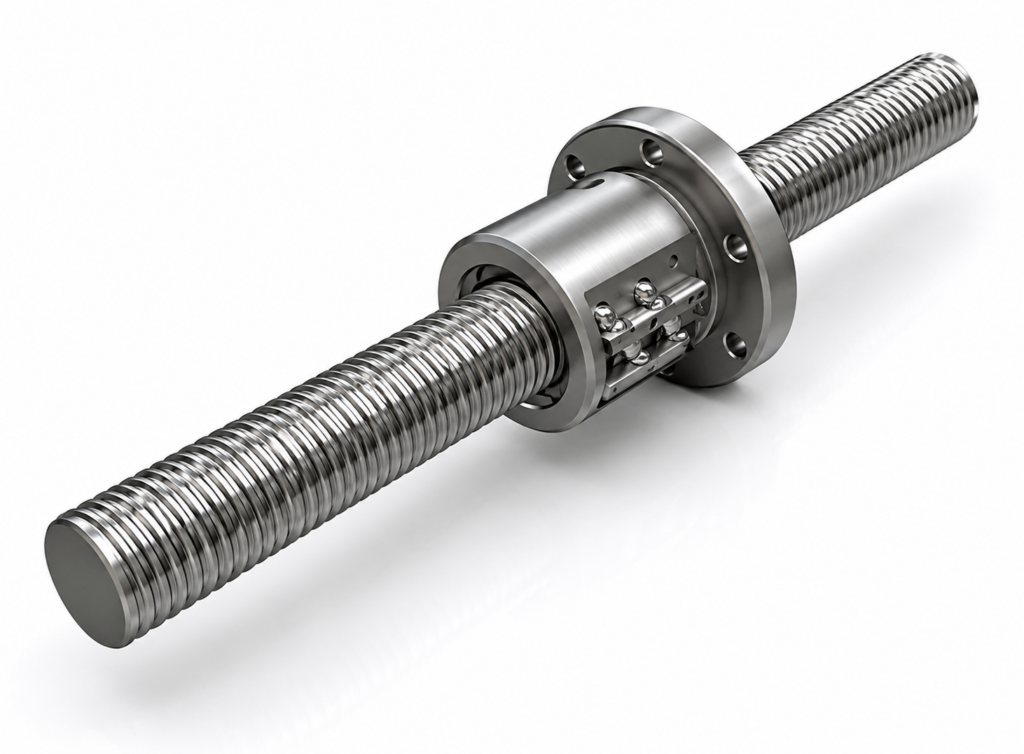

[THK] — BIF1605V-5 Ball Screw Nut Unit (Small, Shaft φ16, Lead 5mm)
Family ID: THK-BIF1605V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ16mm, lead 5mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=7.4kN, static C0a=13.9kN, rigidity K=330N/μm.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF1605V-5+510 | THK BIF1605V-5, φ16 Lead5, L=510mm | THK | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 510mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF1605V-5+710 | THK BIF1605V-5, φ16 Lead5, L=710mm | THK | Shaft Diameter: φ16mm | Lead: 5mm | Shaft Total Length L: 710mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 7.4kN | C0a: 13.9kN | K: 330N/μm | Nut OD D: 40mm | Flange D1: 60mm | Type: Preloaded, Unfinished Shaft End |
