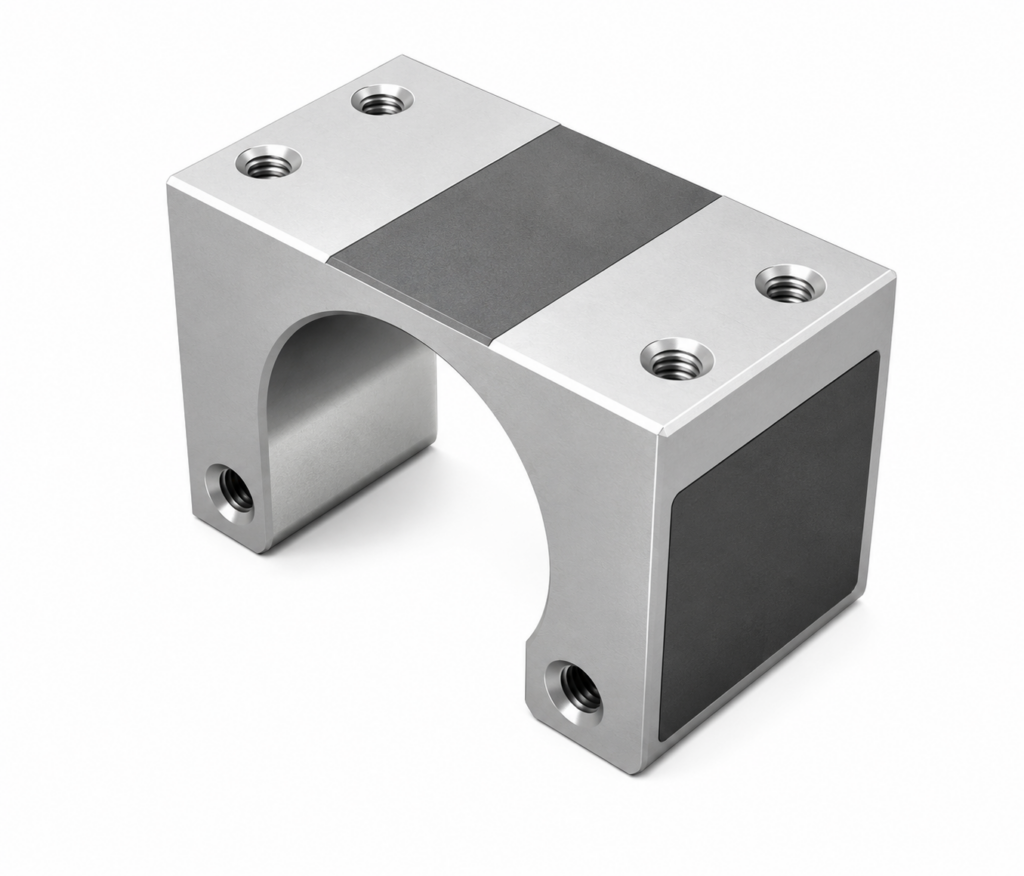

[THK] — MC Nut Bracket (for BNK Finished Shaft Ball Screw)
Family ID: THK-MC-NUT-BRACKET
THK MC Series Nut Bracket for BNK finished shaft ball screws. Standardized bracket for direct table mounting using bolts only — no housing required. Low-profile design for compact installation. Compatible with BNK series: BNK1004~BNK2020.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MC1004 | THK MC1004, Nut Bracket, for BNK1004, BNK1010 | THK | Compatible Ball Screw: BNK1004, BNK1010 | Width W: 48mm | W1: 24mm | B: 40mm | B1: 4mm | Length L: 32mm | C: 16mm | C1: 10mm | F: 20mm | K: 32.5mm | T: 9mm | Bore D: 26.4mm | PCD: 36mm | Bolt S: M5×10 | Bolt S1: M4×7 | Mass: 0.24kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC) | ||
| MC1205 | THK MC1205, Nut Bracket, for BNK1205 | THK | Compatible Ball Screw: BNK1205 | Width W: 60mm | W1: 30mm | B: 47mm | B1: 6.5mm | Length L: 36mm | C: 24mm | C1: 6mm | F: 21mm | K: 37.0mm | T: 9mm | Bore D: 30.4mm | PCD: 40mm | Bolt S: M6×12 | Bolt S1: M4×7 | Mass: 0.38kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC) | ||
| MC1408 | THK MC1408, Nut Bracket, for BNK1408, BNK1510, BNK1520, BNK1616 | THK | Compatible Ball Screw: BNK1408, BNK1510, BNK1520, BNK1616 | Width W: 60mm | W1: 30mm | B: 50mm | B1: 5mm | Length L: 36mm | C: 20mm | C1: 10mm | F: 21.5mm | K: 37.0mm | T: 9mm | Bore D: 34.4mm | PCD: 45mm | Bolt S: M6×12 | Bolt S1: M5×7 | Mass: 0.34kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC) | ||
| MC2010 | THK MC2010, Nut Bracket, for BNK2010 | THK | Compatible Ball Screw: BNK2010 | Width W: 86mm | W1: 43mm | B: 70mm | B1: 8mm | Length L: 50mm | C: 30mm | C1: 10mm | F: 31mm | K: 54.0mm | T: 16mm | Bore D: 46.4mm | PCD: 59mm | Bolt S: M10×20 | Bolt S1: M6×10 | Mass: 1.04kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC) | ||
| MC2020 | THK MC2020, Nut Bracket, for BNK2020 | THK | Compatible Ball Screw: BNK2020 | Width W: 86mm | W1: 43mm | B: 70mm | B1: 8mm | Length L: 40mm | C: 24mm | C1: 8mm | F: 28mm | K: 51.0mm | T: 16mm | Bore D: 39.4mm | PCD: 59mm | Bolt S: M10×20 | Bolt S1: M6×10 | Mass: 0.83kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC) |
