Ball Screws
THK

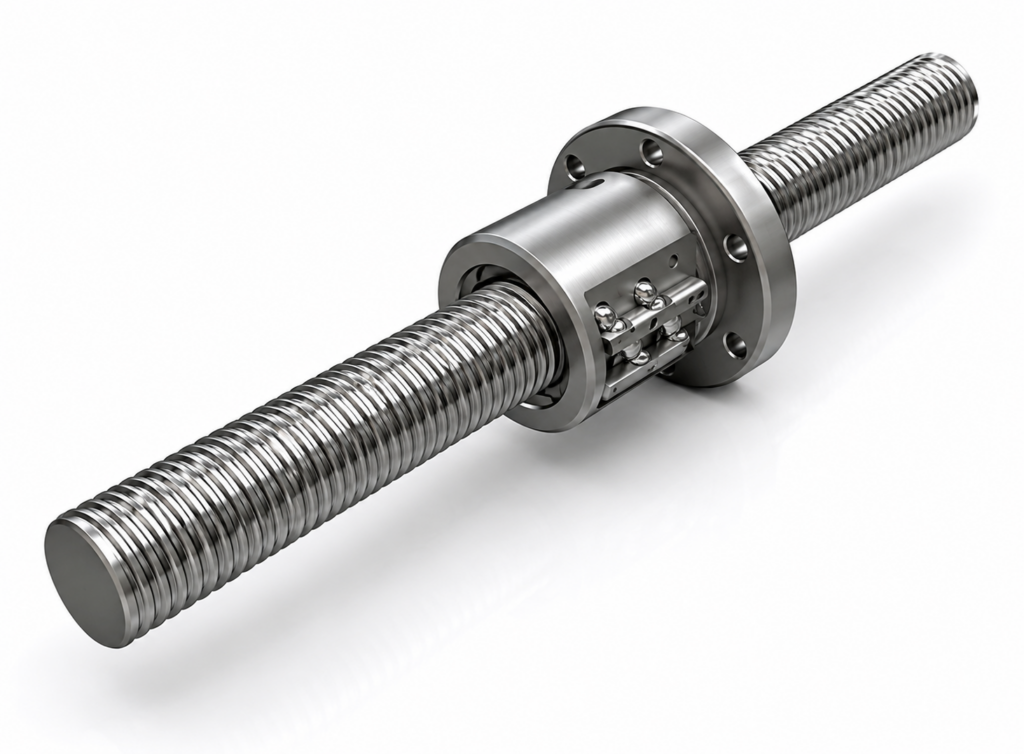

[THK] — BIF2505V-10 Ball Screw Nut Unit (Small, Shaft φ25, Lead 5mm)
Family ID: THK-BIF2505V-10
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ25mm, lead 5mm. 2×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=16.7kN, static C0a=43.9kN, rigidity K=910N/μm.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF2505V-10+620 | THK BIF2505V-10, φ25 Lead5, L=620mm | THK | Shaft Diameter: φ25mm | Lead: 5mm | Shaft Total Length L: 620mm | Nut Length L1: 85mm | Ball Circuit: 2×2.5 | Ca: 16.7kN | C0a: 43.9kN | K: 910N/μm | Nut OD D: 50mm | Flange D1: 73mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2505V-10+820 | THK BIF2505V-10, φ25 Lead5, L=820mm | THK | Shaft Diameter: φ25mm | Lead: 5mm | Shaft Total Length L: 820mm | Nut Length L1: 85mm | Ball Circuit: 2×2.5 | Ca: 16.7kN | C0a: 43.9kN | K: 910N/μm | Nut OD D: 50mm | Flange D1: 73mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2505V-10+1020 | THK BIF2505V-10, φ25 Lead5, L=1020mm | THK | Shaft Diameter: φ25mm | Lead: 5mm | Shaft Total Length L: 1020mm | Nut Length L1: 85mm | Ball Circuit: 2×2.5 | Ca: 16.7kN | C0a: 43.9kN | K: 910N/μm | Nut OD D: 50mm | Flange D1: 73mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2505V-10+1420 | THK BIF2505V-10, φ25 Lead5, L=1420mm | THK | Shaft Diameter: φ25mm | Lead: 5mm | Shaft Total Length L: 1420mm | Nut Length L1: 85mm | Ball Circuit: 2×2.5 | Ca: 16.7kN | C0a: 43.9kN | K: 910N/μm | Nut OD D: 50mm | Flange D1: 73mm | Type: Preloaded, Unfinished Shaft End |
