![[THK] — DIK Ball Screw (Offset Preload Single Nut, Shaft φ28~32)](https://prosourcemro.com/wp-content/uploads/2026/05/001-865-1024x683.png)
Ball Screws
THK

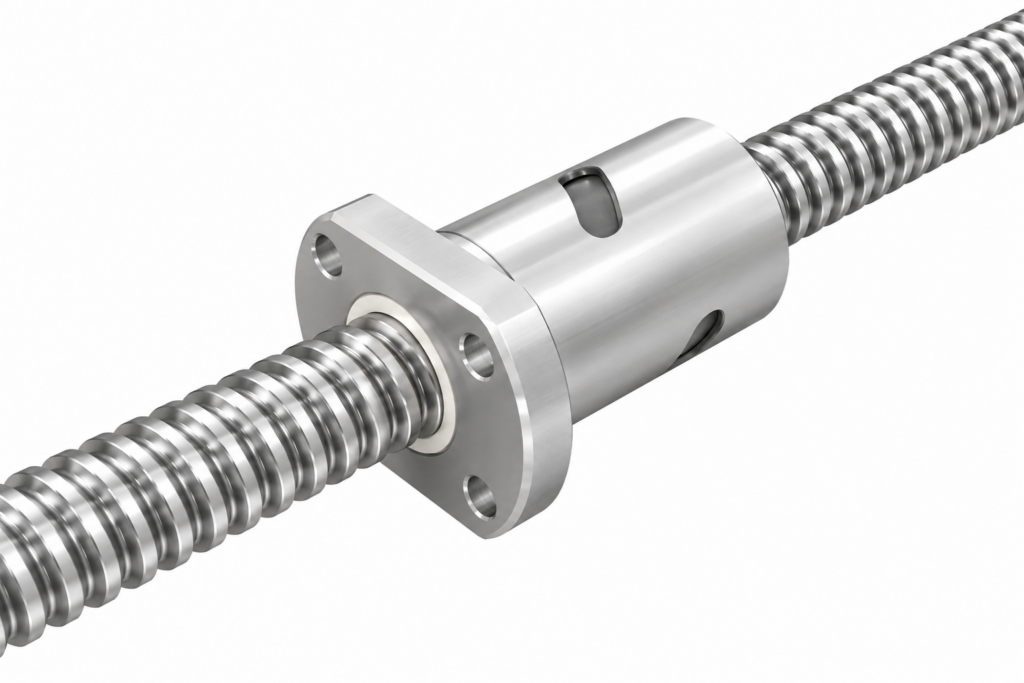

[THK] — DIK Ball Screw (Offset Preload Single Nut, Shaft φ28~32)
Family ID: THK-DIK-28-32
THK DIK Series Precision Ball Screw with Offset Preload Single Nut. Phase-shifted left/right threads in a single nut eliminate axial clearance (preloaded). Compact and smooth motion. Shaft diameter φ28~32mm.
13 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| DIK2805-6 | THK DIK2805-6, φ28 Lead5, Ca=10.5kN | THK | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 10.5kN | C0a: 26.4kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 69mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK2805-8 | THK DIK2805-8, φ28 Lead5, Ca=13.4kN | THK | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 13.4kN | C0a: 35.2kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 79mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK2806-6 | THK DIK2806-6, φ28 Lead6, Ca=14.0kN | THK | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 14.0kN | C0a: 32.0kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK2810-4 | THK DIK2810-4, φ28 Lead10, Ca=12.3kN | THK | Shaft Diameter: φ28mm | Lead: 10mm | Ca: 12.3kN | C0a: 25.0kN | Nut OD D: 45mm | Flange D1: 71mm | Nut Length L1: 84mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3204-6 | THK DIK3204-6, φ32 Lead4, Ca=6.4kN | THK | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 6.4kN | C0a: 19.6kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 64mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3204-8 | THK DIK3204-8, φ32 Lead4, Ca=8.2kN | THK | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 8.2kN | C0a: 26.1kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 72mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3204-10 | THK DIK3204-10, φ32 Lead4, Ca=10.0kN | THK | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 10.0kN | C0a: 32.7kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 80mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3205-6 | THK DIK3205-6, φ32 Lead5, Ca=11.1kN | THK | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 11.1kN | C0a: 30.2kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 62mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3205-8 | THK DIK3205-8, φ32 Lead5, Ca=14.2kN | THK | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 14.2kN | C0a: 40.3kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3206-6 | THK DIK3206-6, φ32 Lead6, Ca=14.9kN | THK | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 14.9kN | C0a: 37.1kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3206-8 | THK DIK3206-8, φ32 Lead6, Ca=19.1kN | THK | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 19.1kN | C0a: 49.5kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 87mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3210-6 | THK DIK3210-6, φ32 Lead10, Ca=25.7kN | THK | Shaft Diameter: φ32mm | Lead: 10mm | Ca: 25.7kN | C0a: 52.2kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 110mm | Type: Offset Preload, Single Nut (DIK) | ||
| DIK3212-4 | THK DIK3212-4, φ32 Lead12, Ca=18.8kN | THK | Shaft Diameter: φ32mm | Lead: 12mm | Ca: 18.8kN | C0a: 37.0kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 98mm | Type: Offset Preload, Single Nut (DIK) |
