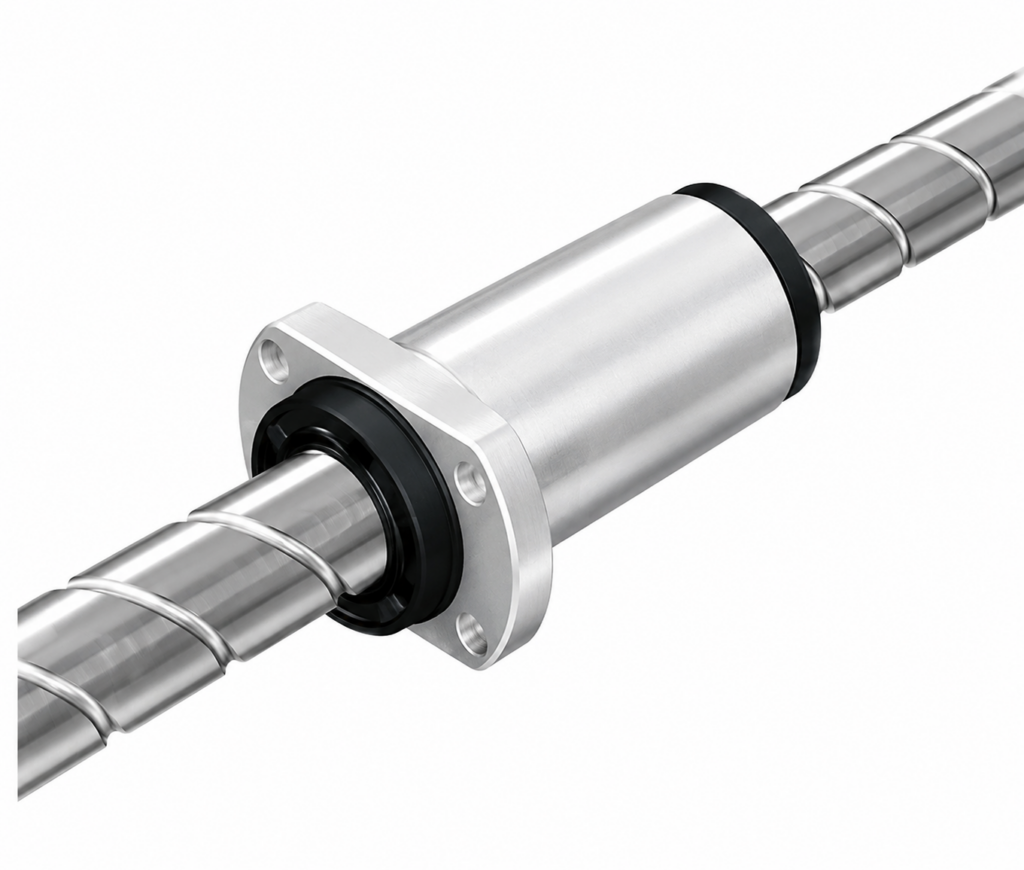

[THK] — WGF1530-3 Ball Screw (Super Lead, Shaft φ15, Lead 30mm)
Family ID: THK-WGF1530-3
THK WGF Series Precision Ground Ball Screw (Super Lead type). Lead 30mm is 2.0× shaft diameter — designed for high-speed feed. DN value 70,000. Shaft diameter φ15mm, 2×1.6 ball circuit. Ca=8.1kN, C0a=14.6kN, K=220N/μm. Custom shaft length available up to 1500mm. Note: Seal not provided.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| WGF1530-3GT+C5 | THK WGF1530-3, GT (Preloaded), C5 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal | ||
| WGF1530-3GT+C7 | THK WGF1530-3, GT (Preloaded), C7 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal | ||
| WGF1530-3G0+C5 | THK WGF1530-3, G0 (Zero clearance), C5 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal | ||
| WGF1530-3G0+C7 | THK WGF1530-3, G0 (Zero clearance), C7 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal | ||
| WGF1530-3G2+C5 | THK WGF1530-3, G2 (Standard), C5 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal | ||
| WGF1530-3G2+C7 | THK WGF1530-3, G2 (Standard), C7 | THK | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal |
