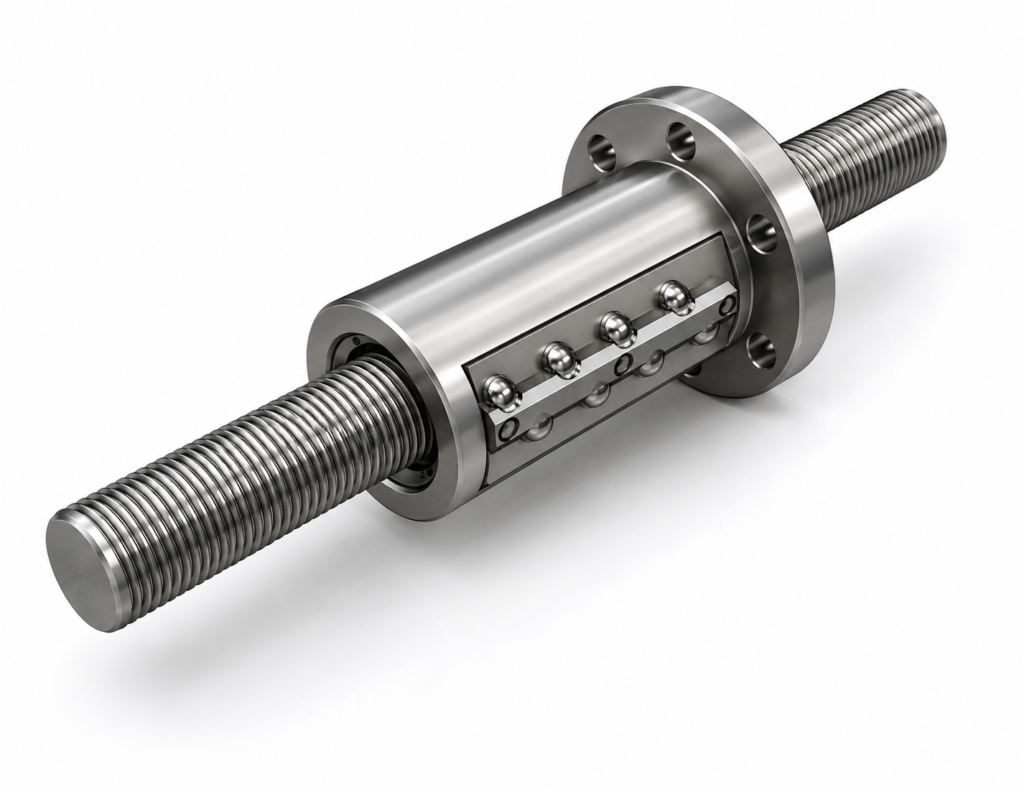

[THK] — BIF2510V-5 Ball Screw Nut Unit (Medium, Shaft φ25, Lead 10mm)
Family ID: THK-BIF2510V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ25mm, lead 10mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=15.8kN, static C0a=32.9kN, rigidity K=500N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF2510V-5+620 | THK BIF2510V-5, φ25 Lead10, L=620mm | THK | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 620mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2510V-5+1020 | THK BIF2510V-5, φ25 Lead10, L=1020mm | THK | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1020mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2510V-5+1420 | THK BIF2510V-5, φ25 Lead10, L=1420mm | THK | Shaft Diameter: φ25mm | Lead: 10mm | Shaft Total Length L: 1420mm | Nut Length L1: 100mm | Ball Circuit: 1×2.5 | Ca: 15.8kN | C0a: 32.9kN | K: 500N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End |
