Ball Screws
THK

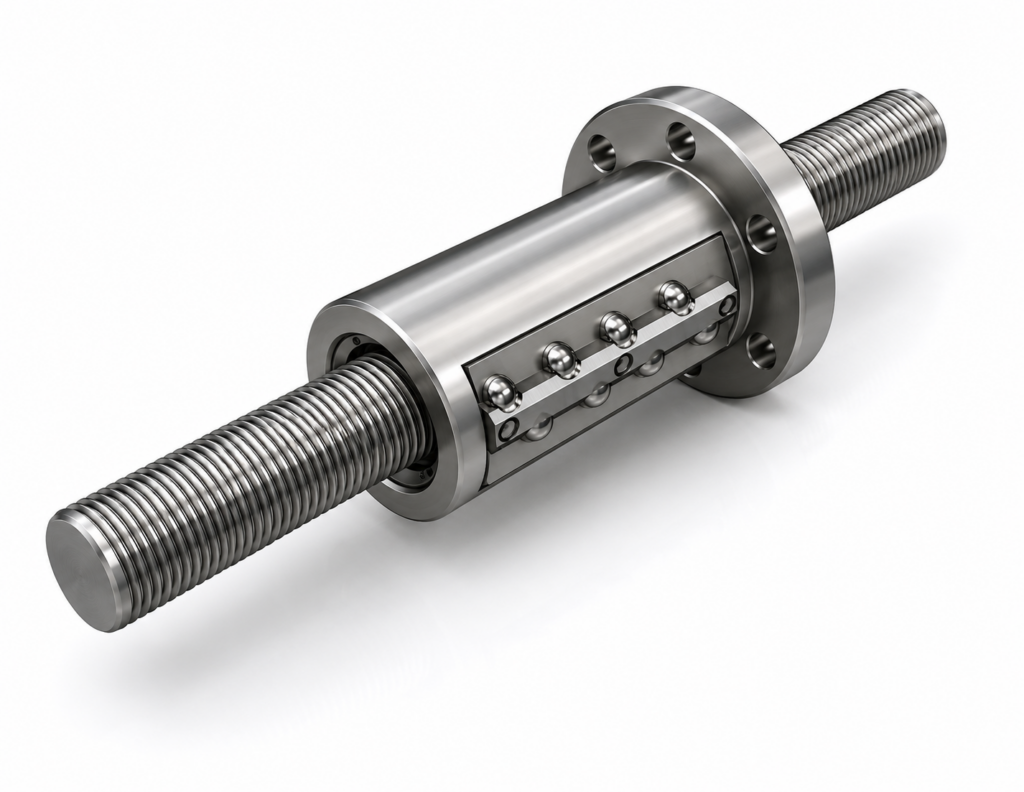

[THK] — BIF3212V-7 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 12mm)
Family ID: THK-BIF3212V-7
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ32mm, lead 12mm. 1×3.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=40.4kN, static C0a=88.5kN, rigidity K=888N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3212V-7+930 | THK BIF3212V-7, φ32 Lead12, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 930mm | Nut Length L1: 146mm | Ball Circuit: 1×3.5 | Ca: 40.4kN | C0a: 88.5kN | K: 888N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3212V-7+1430 | THK BIF3212V-7, φ32 Lead12, L=1430mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 1430mm | Nut Length L1: 146mm | Ball Circuit: 1×3.5 | Ca: 40.4kN | C0a: 88.5kN | K: 888N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3212V-7+1830 | THK BIF3212V-7, φ32 Lead12, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 12mm | Shaft Total Length L: 1830mm | Nut Length L1: 146mm | Ball Circuit: 1×3.5 | Ca: 40.4kN | C0a: 88.5kN | K: 888N/μm | Nut OD D: 76mm | Flange D1: 121mm | Type: Preloaded, Unfinished Shaft End |
