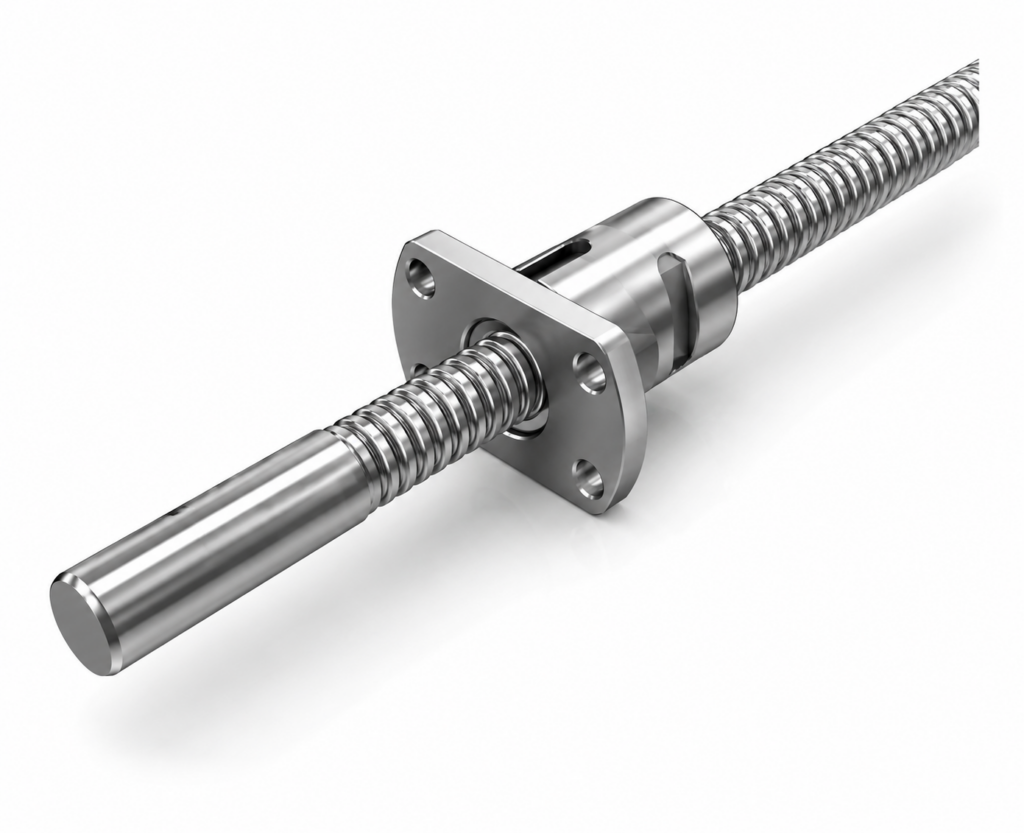

[THK] — MDK1202-3 Ball Screw Nut Unit (Shaft φ12, Lead 2mm)

Family ID: THK-MDK1202-3

THK MDK Series Precision Ground Ball Screw Nut Unit. Standardized unfinished shaft end for easy additional machining (turning/milling). Shaft diameter φ12mm, lead 2mm. 3×1 ball circuit. Grease pre-packed nut. Induction-hardened thread surface only — shaft ends remain machinable. Ca=1.7kN, C0a=3.6kN.

5 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
MDK1202-3+165	THK MDK1202-3, φ12 Lead2, L=165mm	THK	Shaft Diameter: φ12mm \| Lead: 2mm \| Shaft Total Length L: 165mm \| Nut Length L1: 22mm \| Ball Circuit: 3×1 \| Ca: 1.7kN \| C0a: 3.6kN \| Nut OD D: 19mm \| Flange D1: 36mm \| Type: Unfinished Shaft End, Grease Pre-packed
MDK1202-3+215	THK MDK1202-3, φ12 Lead2, L=215mm	THK	Shaft Diameter: φ12mm \| Lead: 2mm \| Shaft Total Length L: 215mm \| Nut Length L1: 22mm \| Ball Circuit: 3×1 \| Ca: 1.7kN \| C0a: 3.6kN \| Nut OD D: 19mm \| Flange D1: 36mm \| Type: Unfinished Shaft End, Grease Pre-packed
MDK1202-3+265	THK MDK1202-3, φ12 Lead2, L=265mm	THK	Shaft Diameter: φ12mm \| Lead: 2mm \| Shaft Total Length L: 265mm \| Nut Length L1: 22mm \| Ball Circuit: 3×1 \| Ca: 1.7kN \| C0a: 3.6kN \| Nut OD D: 19mm \| Flange D1: 36mm \| Type: Unfinished Shaft End, Grease Pre-packed
MDK1202-3+315	THK MDK1202-3, φ12 Lead2, L=315mm	THK	Shaft Diameter: φ12mm \| Lead: 2mm \| Shaft Total Length L: 315mm \| Nut Length L1: 22mm \| Ball Circuit: 3×1 \| Ca: 1.7kN \| C0a: 3.6kN \| Nut OD D: 19mm \| Flange D1: 36mm \| Type: Unfinished Shaft End, Grease Pre-packed
MDK1202-3+365	THK MDK1202-3, φ12 Lead2, L=365mm	THK	Shaft Diameter: φ12mm \| Lead: 2mm \| Shaft Total Length L: 365mm \| Nut Length L1: 22mm \| Ball Circuit: 3×1 \| Ca: 1.7kN \| C0a: 3.6kN \| Nut OD D: 19mm \| Flange D1: 36mm \| Type: Unfinished Shaft End, Grease Pre-packed
