Ball Screws
THK

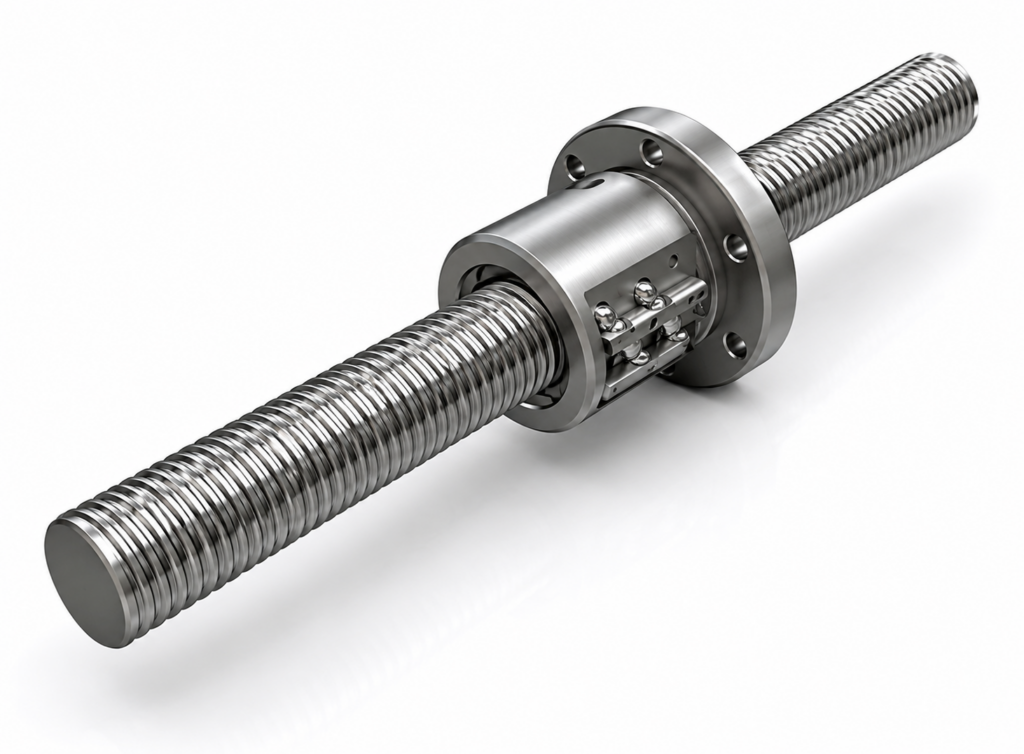

[THK] — BIF3205V-10 Ball Screw Nut Unit (Small, Shaft φ32, Lead 5mm)
Family ID: THK-BIF3205V-10
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ32mm, lead 5mm. 2×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=18.5kN, static C0a=56.3kN, rigidity K=1110N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3205V-10+930 | THK BIF3205V-10, φ32 Lead5, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 930mm | Nut Length L1: 86mm | Ball Circuit: 2×2.5 | Ca: 18.5kN | C0a: 56.3kN | K: 1110N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3205V-10+1430 | THK BIF3205V-10, φ32 Lead5, L=1430mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 1430mm | Nut Length L1: 86mm | Ball Circuit: 2×2.5 | Ca: 18.5kN | C0a: 56.3kN | K: 1110N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3205V-10+1830 | THK BIF3205V-10, φ32 Lead5, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 1830mm | Nut Length L1: 86mm | Ball Circuit: 2×2.5 | Ca: 18.5kN | C0a: 56.3kN | K: 1110N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End |
