Ball Screws
THK

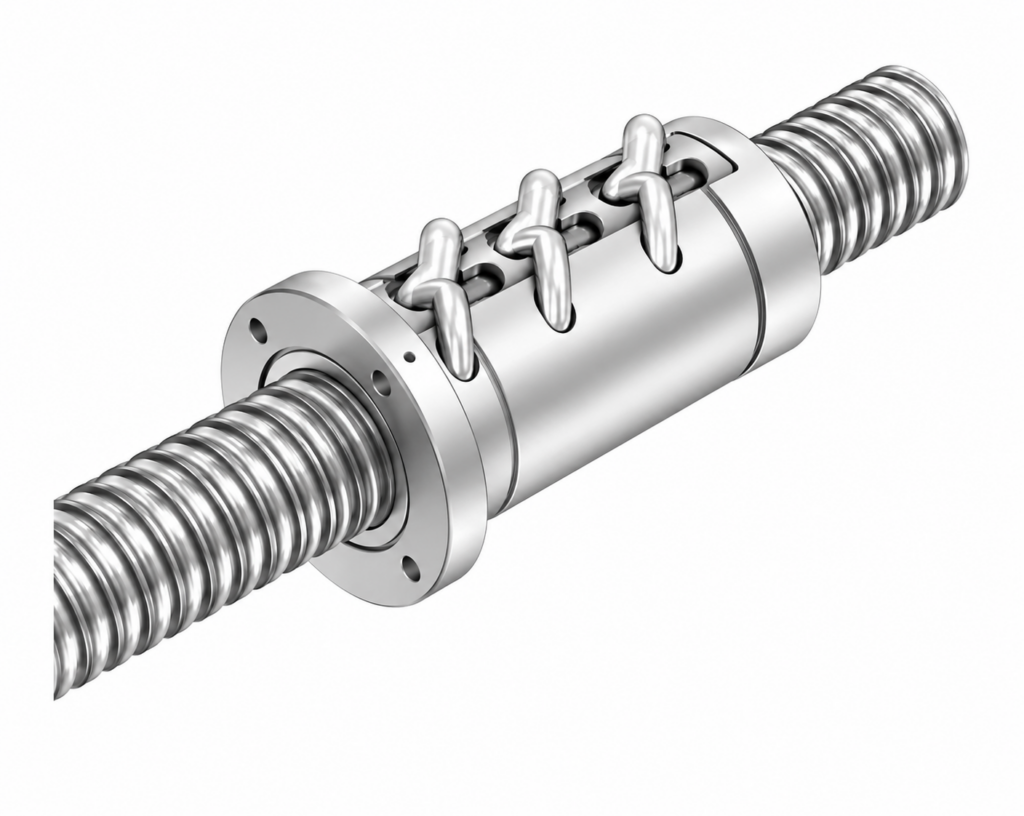

[THK] — HBN10020K-7 Ball Screw (Heavy Load, Shaft φ100, Lead 20mm)
Family ID: THK-HBN10020K-7
THK HBN-K Series Precision Ground Ball Screw with Ball Retainer. High load capacity — over 2× higher dynamic load rating vs. conventional products. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter φ100mm, lead 20mm, 7 ball circuits. Ca=674kN, C0a=1956kN.
1 product code available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HBN10020K-7 | THK HBN10020K-7, φ100 Lead20, Ca=674kN | THK | Shaft Diameter: φ100mm | Lead: 20mm | Ball Circuits: 7 | Ca: 674kN | C0a: 1956kN | Nut OD D: 154mm | Flange D1: 194mm | Nut Length L1: 232mm | Type: Heavy Load, Ball Retainer (HBN-K) |
