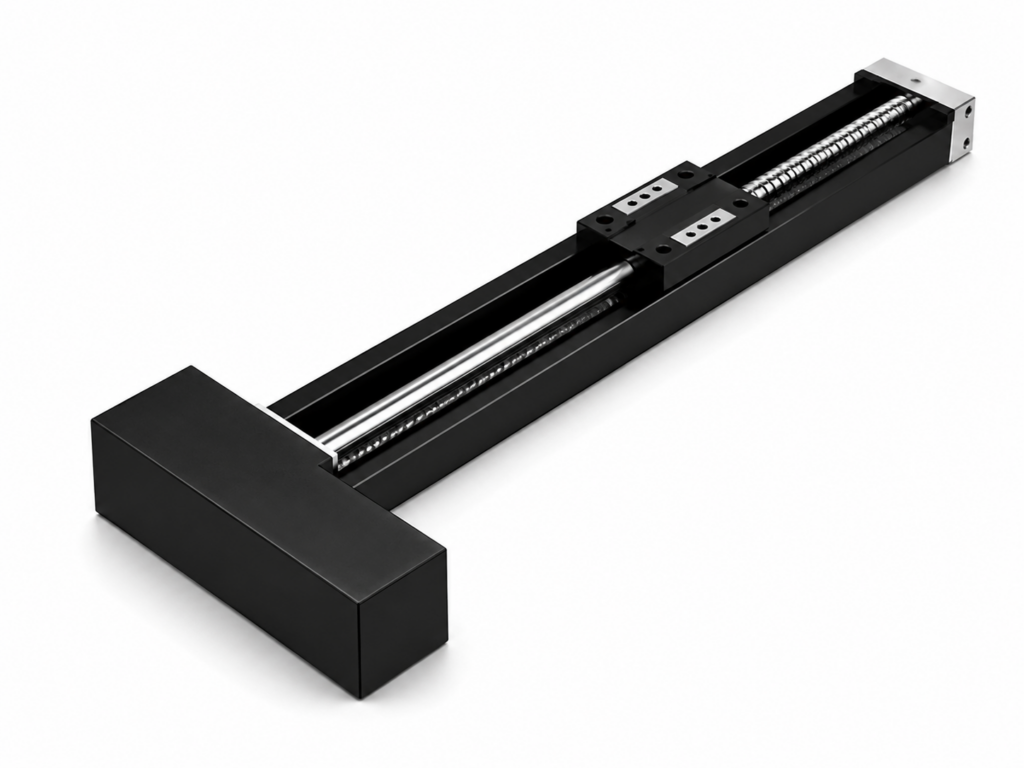

[THK] — KR15 LM Guide Actuator, With Cover, Motor Parallel (Long Block ×2)
LM Guide Actuators THK

[THK] — KR15 LM Guide Actuator, With Cover, Motor Parallel (Long Block ×2)

Family ID: THK-KR15-C_PAR-B

THK KR15 LM Guide Actuator. With Cover, motor parallel configuration. Long Block ×2 (long type). Integrated LM block and ball screw nut for compact design. Equal load capacity in 4 directions. Stroke range: 40–115 mm. See model number configuration guide A2-136.

4 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
KR1531B-0040 KR15 With Cover Parallel, Long Block ×2, Stroke 40mm THK Model: KR15, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️ A2-136 confirm required) | Stroke: 40 mm | Outer Rail Length: 125 mm | Overall Length L1: 169.8 mm | C: 100 mm | G: 12.5 mm | Mounting Holes n: 3 | Mass: 0.56 kg
KR1531B-0065 KR15 With Cover Parallel, Long Block ×2, Stroke 65mm THK Model: KR15, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️ A2-136 confirm required) | Stroke: 65 mm | Outer Rail Length: 150 mm | Overall Length L1: 194.8 mm | C: 100 mm | G: 25.0 mm | Mounting Holes n: 3 | Mass: 0.6 kg
KR1531B-0090 KR15 With Cover Parallel, Long Block ×2, Stroke 90mm THK Model: KR15, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️ A2-136 confirm required) | Stroke: 90 mm | Outer Rail Length: 175 mm | Overall Length L1: 219.8 mm | C: 150 mm | G: 12.5 mm | Mounting Holes n: 4 | Mass: 0.63 kg
KR1531B-0115 KR15 With Cover Parallel, Long Block ×2, Stroke 115mm THK Model: KR15, Long Block ×2 | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️ A2-136 confirm required) | Stroke: 115 mm | Outer Rail Length: 200 mm | Overall Length L1: 244.8 mm | C: 150 mm | G: 25.0 mm | Mounting Holes n: 4 | Mass: 0.66 kg
