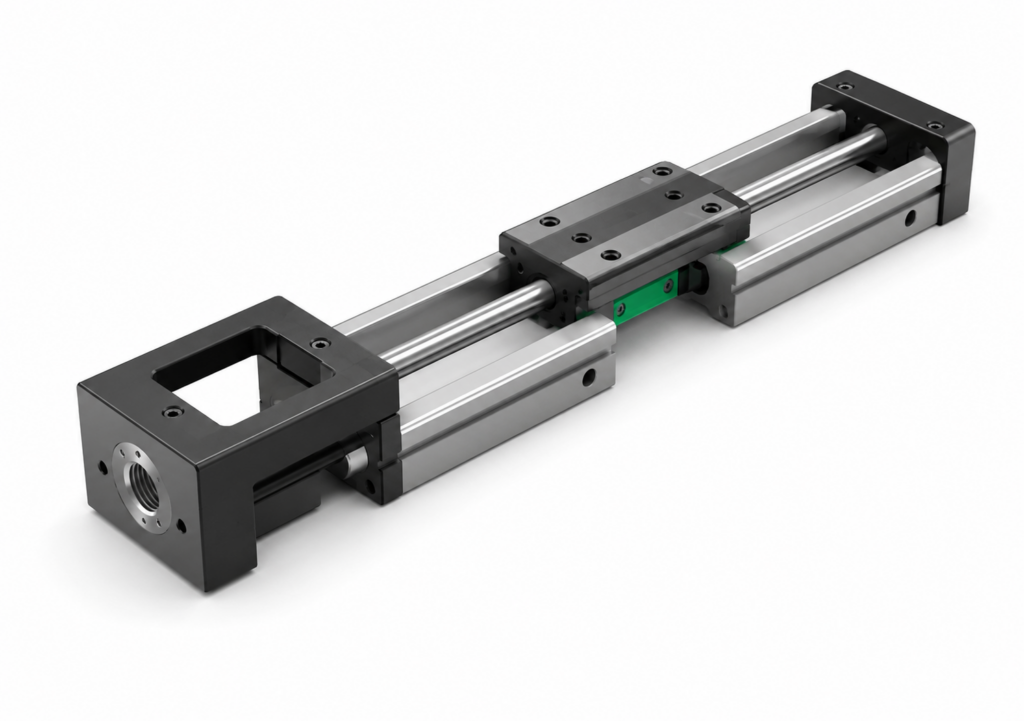

[THK] — SKR20 LM Guide Actuator, Motor Inline (With Cover, φ20)
LM Guide Actuators THK

[THK] — SKR20 LM Guide Actuator, Motor Inline (With Cover, φ20)

Family ID: THK-SKR20-C

THK SKR20 Series LM Guide Actuator with inline motor mount (with cover). LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. A-type: 1 long block; B-type: 2 long blocks. Stroke range 30~130mm.

5 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
SKR20CA-0030 THK SKR20, With Cover, 1 Long Block, Stroke 30mm THK Stroke: 30mm | Mech Stopper Stroke: 40.9mm | Outer Rail Length: 100mm | Total Length L: 159mm | G: 20mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 0.55kg | Motor Mount: Inline | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20CA-0080 THK SKR20, With Cover, 1 Long Block, Stroke 80mm THK Stroke: 80mm | Mech Stopper Stroke: 90.9mm | Outer Rail Length: 150mm | Total Length L: 209mm | G: 15mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 0.69kg | Motor Mount: Inline | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20CA-0130 THK SKR20, With Cover, 1 Long Block, Stroke 130mm THK Stroke: 130mm | Mech Stopper Stroke: 140.9mm | Outer Rail Length: 200mm | Total Length L: 259mm | G: 40mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 0.84kg | Motor Mount: Inline | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20CB-0035 THK SKR20, With Cover, 2 Long Blocks, Stroke 35mm THK Stroke: 35mm | Mech Stopper Stroke: 44.9mm | Outer Rail Length: 150mm | Total Length L: 209mm | G: 15mm | Block Type: B-type (2 Long Blocks) | Cover: With Cover | Mass: 0.81kg | Motor Mount: Inline | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20CB-0085 THK SKR20, With Cover, 2 Long Blocks, Stroke 85mm THK Stroke: 85mm | Mech Stopper Stroke: 94.9mm | Outer Rail Length: 200mm | Total Length L: 259mm | G: 40mm | Block Type: B-type (2 Long Blocks) | Cover: With Cover | Mass: 0.96kg | Motor Mount: Inline | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
