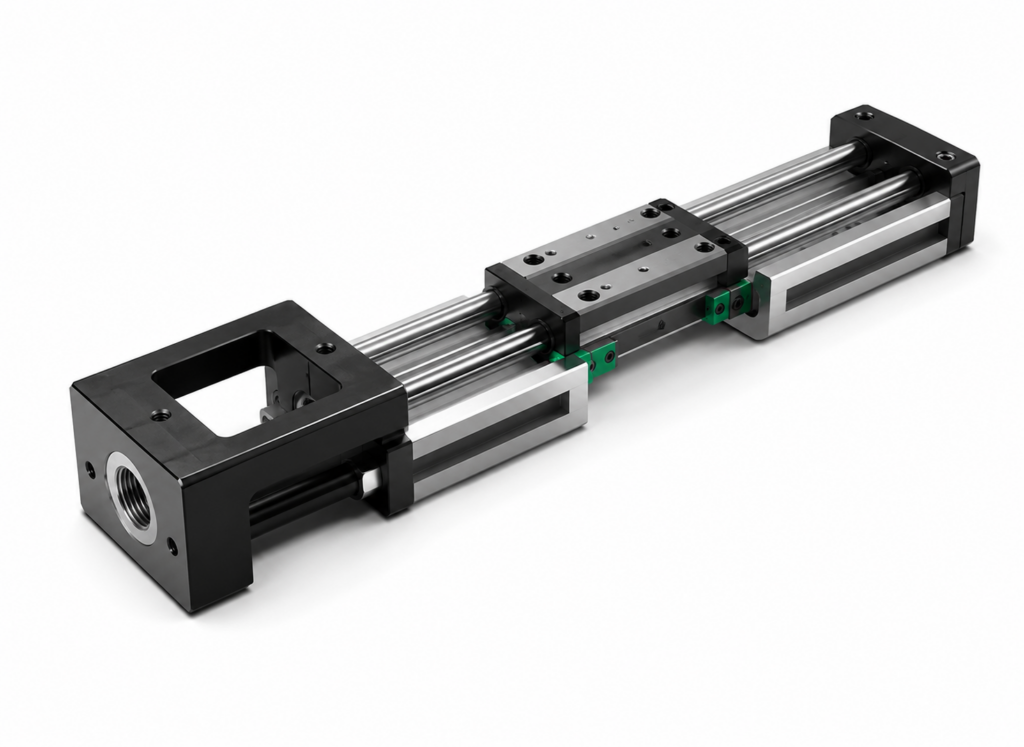

[THK] — SKR26 LM Guide Actuator, Motor Inline (With Cover, φ26)
Family ID: THK-SKR26-C
THK SKR26 Series LM Guide Actuator with inline motor mount (with cover). LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. A-type: 1 long block; B-type: 2 long blocks. Stroke range 60~210mm.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SKR26CA-0060 | THK SKR26, With Cover, 1 Long Block, Stroke 60mm | THK | Stroke: 60mm | Mech Stopper Stroke: 68.4mm | Outer Rail Length: 150mm | Total Length L: 220mm | G: 35mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 1.17kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CA-0110 | THK SKR26, With Cover, 1 Long Block, Stroke 110mm | THK | Stroke: 110mm | Mech Stopper Stroke: 118.4mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 1.39kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CA-0160 | THK SKR26, With Cover, 1 Long Block, Stroke 160mm | THK | Stroke: 160mm | Mech Stopper Stroke: 168.4mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 1.61kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CA-0210 | THK SKR26, With Cover, 1 Long Block, Stroke 210mm | THK | Stroke: 210mm | Mech Stopper Stroke: 218.4mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: A-type (1 Long Block) | Cover: With Cover | Mass: 1.83kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CB-0045 | THK SKR26, With Cover, 2 Long Blocks, Stroke 45mm | THK | Stroke: 45mm | Mech Stopper Stroke: 54.2mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: B-type (2 Long Blocks) | Cover: With Cover | Mass: 1.64kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CB-0095 | THK SKR26, With Cover, 2 Long Blocks, Stroke 95mm | THK | Stroke: 95mm | Mech Stopper Stroke: 104.2mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: B-type (2 Long Blocks) | Cover: With Cover | Mass: 1.86kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) | ||
| SKR26CB-0145 | THK SKR26, With Cover, 2 Long Blocks, Stroke 145mm | THK | Stroke: 145mm | Mech Stopper Stroke: 154.2mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: B-type (2 Long Blocks) | Cover: With Cover | Mass: 2.08kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26) |
