[THK] — SDA-V/VZ Ball Screw (Shaft φ10~16, Preloaded/Non-preloaded)
Family ID: THK-SDA-V-10-16

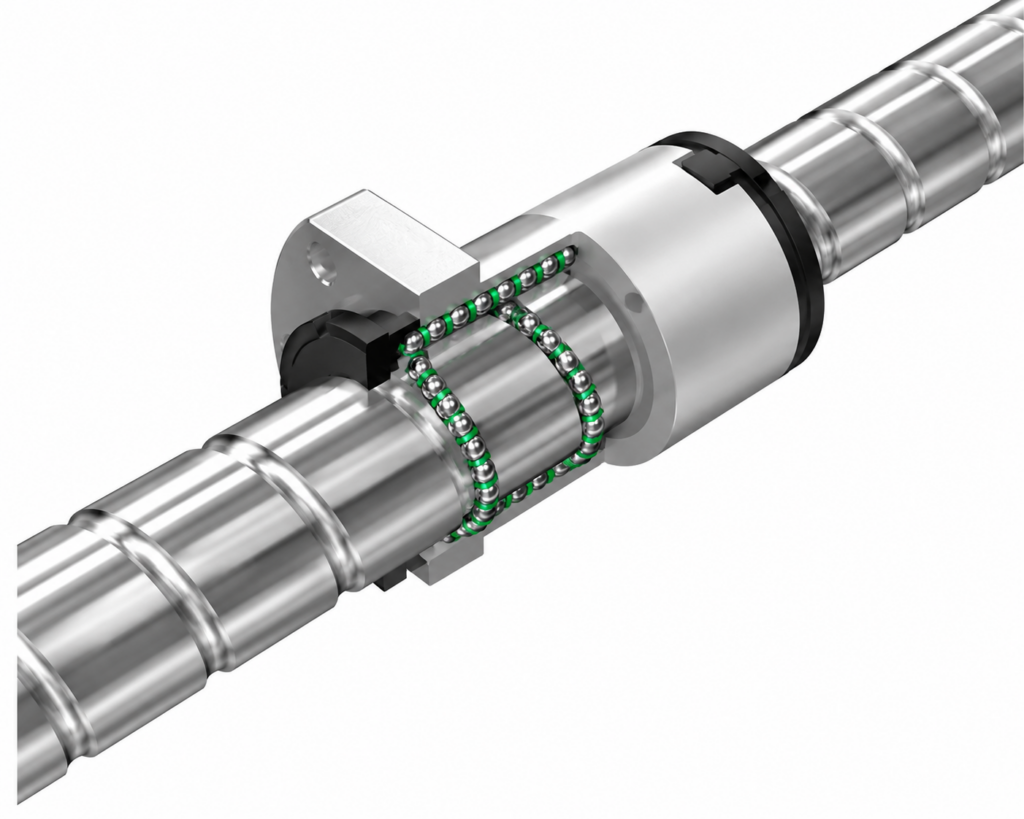

THK SDA-V/VZ Series High-Speed Precision Ground Ball Screw with Ball Retainer. Preloaded and non-preloaded variants available. Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation. Shaft diameter range φ10~16mm. V/VZ types.
15 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SDA1004VZ-4 | THK SDA1004VZ-4, φ10 Lead4, Ca=3.54kN | THK | Shaft Diameter: φ10mm | Lead: 4mm | V type: N/A | Ca(VZ)=3.54kN / C0a(VZ)=5.42kN | Nut OD D: 19mm | Flange D1: 36mm | Nut Length L1: 24mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1005VZ-4 | THK SDA1005VZ-4, φ10 Lead5, Ca=3.53kN | THK | Shaft Diameter: φ10mm | Lead: 5mm | V type: N/A | Ca(VZ)=3.53kN / C0a(VZ)=5.44kN | Nut OD D: 19mm | Flange D1: 36mm | Nut Length L1: 28mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1010VZ-3 | THK SDA1010VZ-3, φ10 Lead10, Ca=2.63kN | THK | Shaft Diameter: φ10mm | Lead: 10mm | V type: N/A | Ca(VZ)=2.63kN / C0a(VZ)=3.86kN | Nut OD D: 19mm | Flange D1: 36mm | Nut Length L1: 37mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1205VZ-3 | THK SDA1205VZ-3, φ12 Lead5, Ca=4.99kN | THK | Shaft Diameter: φ12mm | Lead: 5mm | V type: N/A | Ca(VZ)=4.99kN / C0a(VZ)=7.02kN | Nut OD D: 24mm | Flange D1: 40mm | Nut Length L1: 25mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1210VZ-2 | THK SDA1210VZ-2, φ12 Lead10, Ca=3.31kN | THK | Shaft Diameter: φ12mm | Lead: 10mm | V type: N/A | Ca(VZ)=3.31kN / C0a(VZ)=4.25kN | Nut OD D: 24mm | Flange D1: 40mm | Nut Length L1: 29mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1220VZ-2 | THK SDA1220VZ-2, φ12 Lead20, Ca=3.13kN | THK | Shaft Diameter: φ12mm | Lead: 20mm | V type: N/A | Ca(VZ)=3.13kN / C0a(VZ)=4.63kN | Nut OD D: 24mm | Flange D1: 40mm | Nut Length L1: 47mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1230VZ-2 | THK SDA1230VZ-2, φ12 Lead30, Ca=2.92kN | THK | Shaft Diameter: φ12mm | Lead: 30mm | V type: N/A | Ca(VZ)=2.92kN / C0a(VZ)=4.14kN | Nut OD D: 24mm | Flange D1: 40mm | Nut Length L1: 65mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1405V-4 | THK SDA1405V-4, φ14 Lead5, Ca=7.4kN | THK | Shaft Diameter: φ14mm | Lead: 5mm | Ca(V)=7.4kN / C0a(V)=10.1kN | Ca(VZ)=7.1kN / C0a(VZ)=11.3kN | Nut OD D: 26mm | Flange D1: 48mm | Nut Length L1: 30mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1505V-3 | THK SDA1505V-3, φ15 Lead5, Ca=5.9kN | THK | Shaft Diameter: φ15mm | Lead: 5mm | Ca(V)=5.9kN / C0a(V)=7.9kN | Ca(VZ)=5.6kN / C0a(VZ)=8.8kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 25mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1510V-3 | THK SDA1510V-3, φ15 Lead10, Ca=5.8kN | THK | Shaft Diameter: φ15mm | Lead: 10mm | Ca(V)=5.8kN / C0a(V)=7.6kN | Ca(VZ)=5.5kN / C0a(VZ)=8.4kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 38mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1520V-4 | THK SDA1520V-4, φ15 Lead20, Ca=6.8kN | THK | Shaft Diameter: φ15mm | Lead: 20mm | Ca(V)=6.8kN / C0a(V)=10.1kN | Ca(VZ)=6.5kN / C0a(VZ)=11.2kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 46mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1530V-4 | THK SDA1530V-4, φ15 Lead30, Ca=6.5kN | THK | Shaft Diameter: φ15mm | Lead: 30mm | Ca(V)=6.5kN / C0a(V)=8.8kN | Ca(VZ)=6.2kN / C0a(VZ)=9.7kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 65mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1605V-3 | THK SDA1605V-3, φ16 Lead5, Ca=6.0kN | THK | Shaft Diameter: φ16mm | Lead: 5mm | Ca(V)=6.0kN / C0a(V)=8.4kN | Ca(VZ)=5.8kN / C0a(VZ)=9.4kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 25mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1610V-3 | THK SDA1610V-3, φ16 Lead10, Ca=6.0kN | THK | Shaft Diameter: φ16mm | Lead: 10mm | Ca(V)=6.0kN / C0a(V)=8.1kN | Ca(VZ)=5.7kN / C0a(VZ)=9.0kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 39mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) | ||
| SDA1616V-3 | THK SDA1616V-3, φ16 Lead16, Ca=5.9kN | THK | Shaft Diameter: φ16mm | Lead: 16mm | Ca(V)=5.9kN / C0a(V)=8.4kN | Ca(VZ)=5.6kN / C0a(VZ)=9.2kN | Nut OD D: 28mm | Flange D1: 48mm | Nut Length L1: 56mm | Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ) |
