Ball Screws
THK

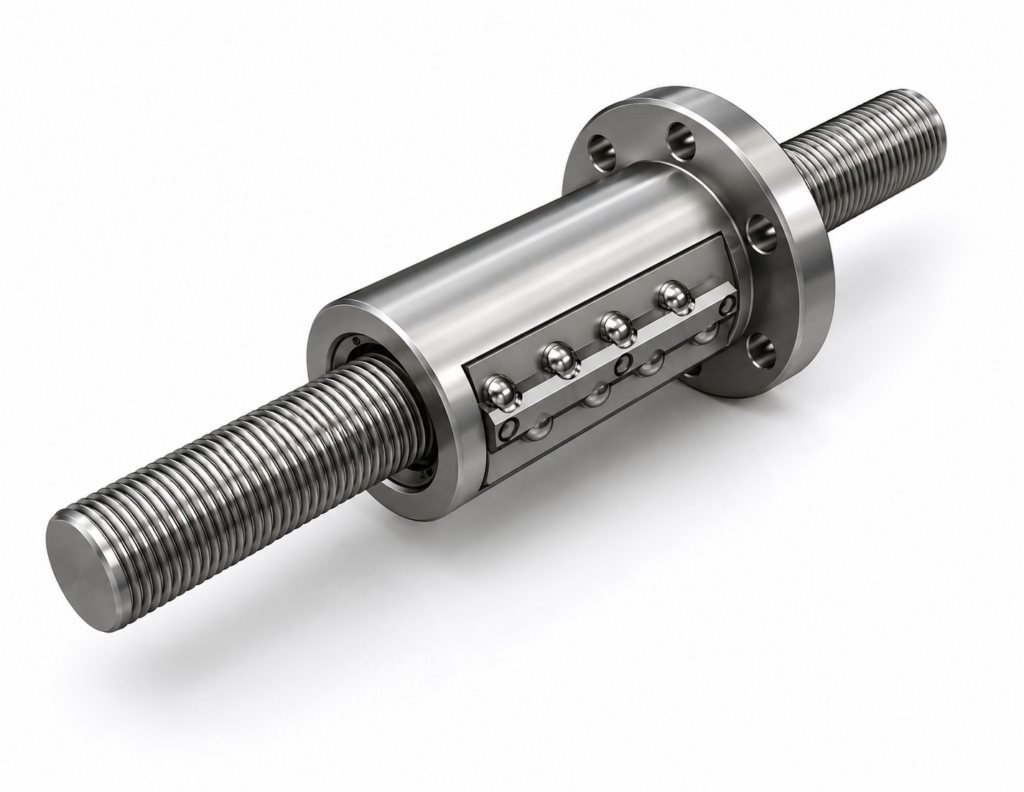

[THK] — BIF3210V-10 Ball Screw Nut Unit (Medium, Shaft φ32, Lead 10mm)
Family ID: THK-BIF3210V-10
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ32mm, lead 10mm. 2×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=47.3kN, static C0a=112.3kN, rigidity K=1128N/μm.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3210V-10+930 | THK BIF3210V-10, φ32 Lead10, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 930mm | Nut Length L1: 160mm | Ball Circuit: 2×2.5 | Ca: 47.3kN | C0a: 112.3kN | K: 1128N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3210V-10+1830 | THK BIF3210V-10, φ32 Lead10, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 10mm | Shaft Total Length L: 1830mm | Nut Length L1: 160mm | Ball Circuit: 2×2.5 | Ca: 47.3kN | C0a: 112.3kN | K: 1128N/μm | Nut OD D: 74mm | Flange D1: 108mm | Type: Preloaded, Unfinished Shaft End |
