Roller Chains
TSUBAKI

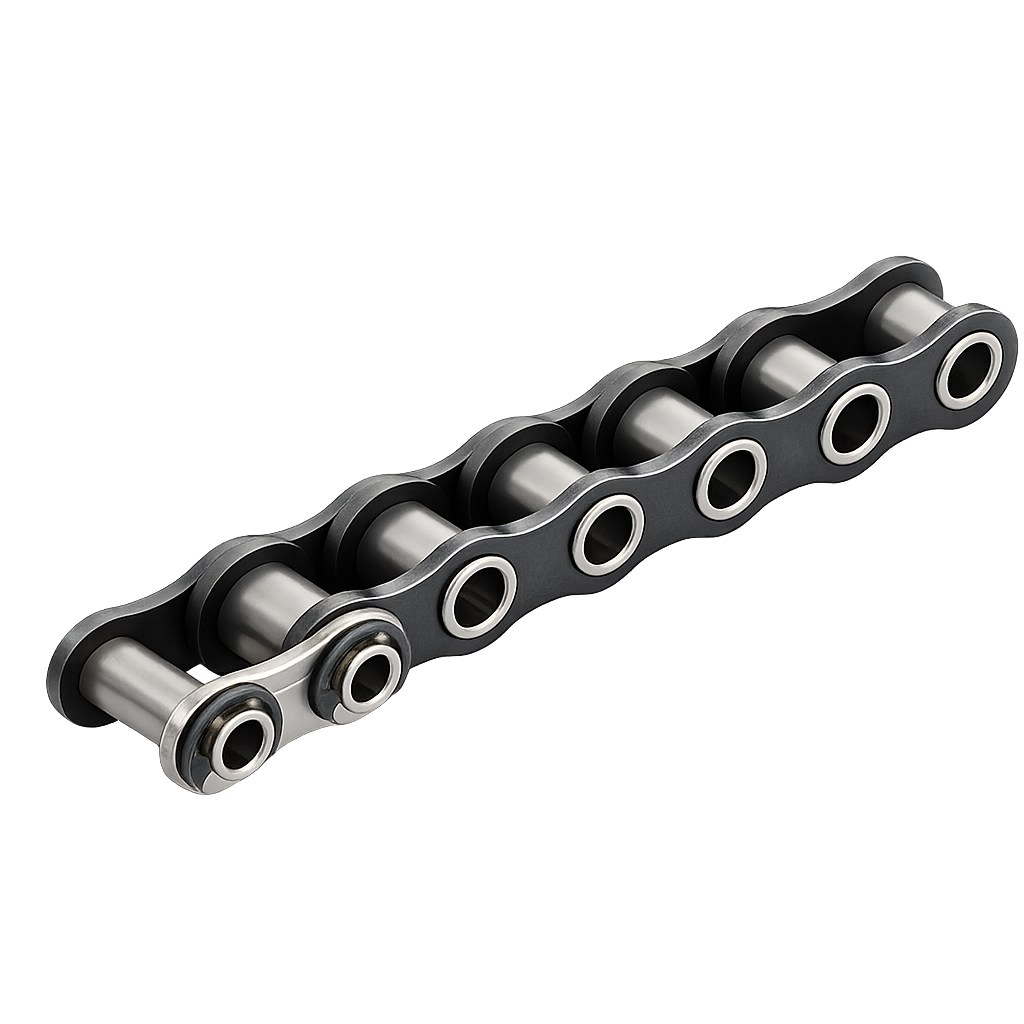

[Tsubaki] — RS40-LMC-HP Lambda Hollow Pin RS Conveyor Chain
Family ID: TSB-RS40-LMC-HP
Tsubaki Lambda Hollow Pin RS Chain (LMC-HP) — RS-type attachment conveyor chain with hollow pins for versatile attachment mounting through the pin bore. Special sintered bushings for oil-free, maintenance-free operation. Wear life 2x longer than standard RS attachment chain. Suitable for clean, oil-free conveying with cross-rod or custom attachments.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RS40-HP-U | Standard (Unit Link) | Tsubaki | Series: RS40-LMC-HP | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS40 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Standard (Unit Link) | ||
| RS40-HP-JL | Connecting Link (Joint Link) | Tsubaki | Series: RS40-LMC-HP | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS40 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Connecting Link (Joint Link) |
