Chains & Wires
UDT

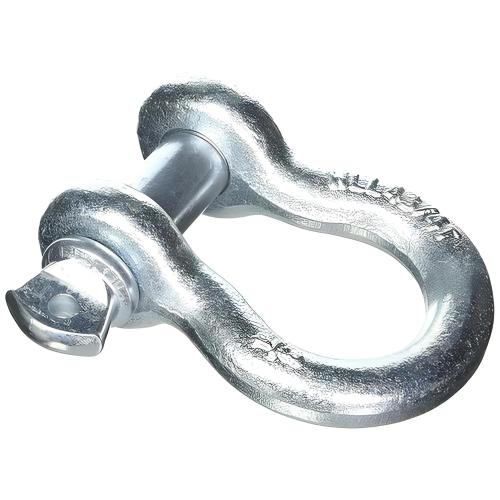

[UDT] — 520-7680 Shackle Forged Shackle (FBC)
Family ID: 520-7680
UDT 520-7680 Forged Shackle (FBC) is a heavy-duty forged shackle designed for secure load connection and rigging applications, sourced direct from Korea. Forged shackles of this type are widely used in lifting, towing, and load-securing operations across construction, marine, and industrial environments where reliable connections under tension are critical. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 520-7680 | — | UDT | 6.4mm (1/4') | Spec: 1/4 | Weight: 0.05 | L: 4.85 | Safe Working Load: 0.50 | A: 11.90 | C: 28.70 | D: 6.35 | E: 19.80 | F: 15.50 | G: 32.50 | P: 6.35 | M: 35.10 | H: 45.20 | B: 7.85 | ||
| 520-7699 | — | UDT | 7.9mm (5/16') | Spec: 5/16 | Weight: 0.09 | L: 5.60 | Safe Working Load: 0.75 | A: 13.50 | C: 31.00 | D: 7.85 | E: 21.30 | F: 19.10 | G: 37.30 | P: 6.35 | M: 42.20 | H: 53.00 | B: 9.65 | ||
| 520-7705 | — | UDT | 9.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | L: 6.35 | Safe Working Load: 1.00 | A: 16.80 | C: 36.60 | D: 9.65 | E: 26.20 | F: 23.10 | G: 45.20 | P: 9.65 | M: 51.50 | H: 63.00 | B: 11.20 | ||
| 520-7714 | — | UDT | 13mm (1/2') | Spec: 1/2 | Weight: 0.32 | L: 9.65 | Safe Working Load: 2.00 | A: 20.60 | C: 47.80 | D: 12.70 | E: 33.30 | F: 30.20 | G: 58.50 | P: 12.70 | M: 68.50 | H: 83.50 | B: 16.00 | ||
| 520-7723 | — | UDT | 16mm (5/8') | Spec: 5/8 | Weight: 0.61 | L: 11.20 | Safe Working Load: 3.25 | A: 26.90 | C: 60.50 | D: 16.00 | E: 42.90 | F: 38.10 | G: 74.50 | P: 17.50 | M: 85.00 | H: 106.00 | B: 19.10 | ||
| 520-7732 | — | UDT | 19mm (3/4') | Spec: 3/4 | Weight: 1.03 | L: 12.70 | Safe Working Load: 4.75 | A: 31.80 | C: 71.50 | D: 19.10 | E: 51.00 | F: 46.00 | G: 89.00 | P: 20.60 | M: 101.00 | H: 126.00 | B: 22.40 | ||
| 520-7741 | — | UDT | 22mm (7/8') | Spec: 7/8 | Weight: 1.52 | L: 12.70 | Safe Working Load: 6.50 | A: 36.60 | C: 84.00 | D: 22.40 | E: 58.00 | F: 53.00 | G: 102.00 | P: 24.60 | M: 114.00 | H: 148.00 | B: 25.40 | ||
| 520-7750 | — | UDT | 25mm (1') | Spec: 1 | Weight: 2.25 | L: 14.20 | Safe Working Load: 8.50 | A: 42.90 | C: 95.50 | D: 25.40 | E: 68.50 | F: 60.50 | G: 119.00 | P: 26.90 | M: 129.00 | H: 167.00 | B: 28.70 |
