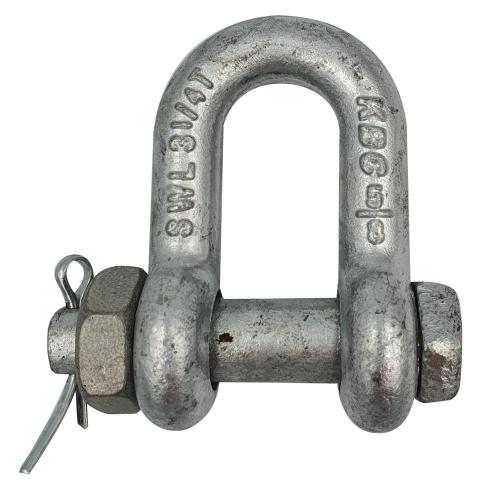

[KBC] — 560-1992 Forged Shackle (FSB)
Family ID: 560-1992
The KBC 560-1992 Forged Shackle (FSB) is a heavy-duty lifting and rigging connector sourced direct from Korea. Forged shackles of this type are widely used in construction, marine, and industrial lifting applications to securely connect chains, wire ropes, slings, and hooks under load. Request a quote today for export-ready supply at competitive pricing, fulfilled by a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-1992 | — | KBC | 13mm (1/2') | Spec: 1/2 | Weight: 0.34 | A: 20.57 | D: 12.70 | F: 30.23 | G: 42.16 | K: 76.96 | Max Load: 2.00 | B: 16.26 | ||
| 560-2007 | — | KBC | 16mm (5/8') | Spec: 5/8 | Weight: 0.67 | A: 26.92 | D: 16.00 | F: 38.10 | G: 51.82 | K: 95.50 | Max Load: 3.25 | B: 19.56 | ||
| 560-2016 | — | KBC | 19mm (3/4') | Spec: 3/4 | Weight: 1.14 | A: 31.75 | D: 19.05 | F: 45.97 | G: 60.96 | K: 115.06 | Max Load: 4.75 | B: 22.61 | ||
| 560-2025 | — | KBC | 22mm (7/8') | Spec: 7/8 | Weight: 1.75 | A: 36.58 | D: 22.35 | F: 53.09 | G: 72.64 | K: 135.38 | Max Load: 6.50 | B: 25.91 | ||
| 560-2034 | — | KBC | 25mm (1') | Spec: 1 | Weight: 2.52 | A: 42.93 | D: 25.40 | F: 60.45 | G: 82.30 | K: 150.88 | Max Load: 8.50 | B: 29.21 | ||
| 560-2061 | — | KBC | 9.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | A: 16.76 | D: 9.65 | F: 23.11 | G: 32.51 | K: 58.67 | Max Load: 1.00 | B: 11.18 |
