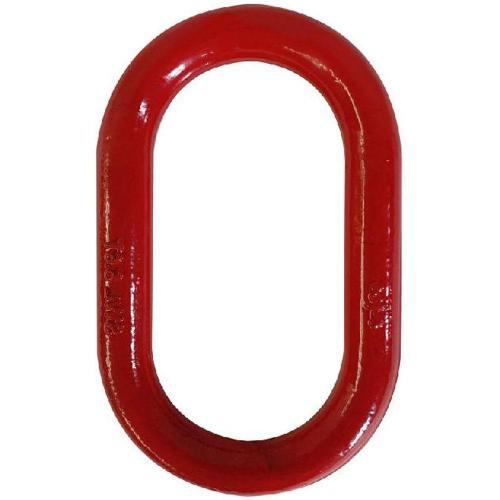

[UDT] — 520-8175 Shackle Master Link
Family ID: 520-8175
The UDT 520-8175 Shackle Master Link is a connecting link designed to join and secure chain assemblies, sourced direct from Korea. Shackle master links are commonly used in lifting, rigging, and load-securing applications where a reliable, re-openable connection point between chain sections is required. Request a quote today for export-ready supply at competitive pricing, fulfilled by a KITA-registered Korean exporter.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 520-8175 | — | UDT | 13mm (1/2') | Spec: 1/2 | Weight: 0.45 | Safe Working Load: 2.00 | A: 14 | C: 64 | B: 127 | ||
| 520-8184 | — | UDT | 16mm (5/8') | Spec: 5/8 | Weight: 0.70 | Safe Working Load: 3.25 | A: 16 | C: 76 | B: 152 | ||
| 520-8193 | — | UDT | 19mm (3/4') | Spec: 13/4 | Weight: 1.04 | Safe Working Load: 4.75 | A: 19 | C: 80 | B: 140 | ||
| 520-8209 | — | UDT | 22mm (7/8') | Spec: 7/8 | Weight: 1.57 | Safe Working Load: 8.00 | A: 22 | C: 90 | B: 160 | ||
| 520-8218 | — | UDT | 25mm (1') | Spec: 1 | Weight: 2.10 | Safe Working Load: 11.00 | A: 25 | C: 89 | B: 178 |
