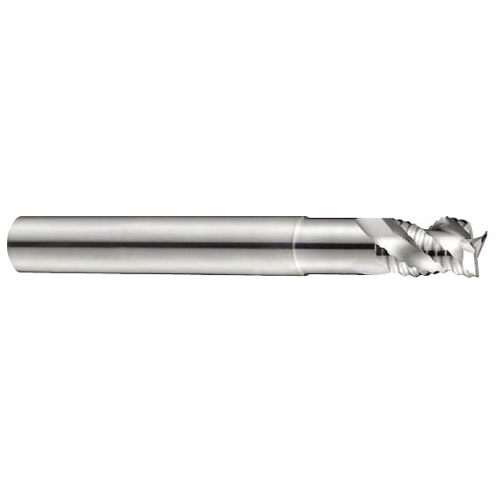

[YG-1] — E5D73120 Carbide End Mill Carbide Lapping End Mill (ALU-CUT)
End Mills YG-1

[YG-1] — E5D73120 Carbide End Mill Carbide Lapping End Mill (ALU-CUT)

Family ID: 306-8485

Carbide Lapping End Mill (ALU-CUT) from YG-1, sourced from Korea.

9 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
306-8485 E5D73120 YG-1 12*12*30*80MM(E5D73120) | Spec: 12 | Flute Length: 30 | Overall Length: 80 | Shank d: 12
306-8704 E5D73120B YG-1 12*12*14(36)*100MM(E5D73120B) | Spec: 12 | Flute Length: 14(36) | Overall Length: 100 | Shank: 12
306-9420 E5D73160B YG-1 16*16*18(46)*120MM(E5D73160B) | Spec: 16 | Flute Length: 18(46) | Overall Length: 120 | Shank: 16
306-9606 E5D73160 YG-1 16*16*42*100MM(E5D73160) | Spec: 16 | Flute Length: 42 | Overall Length: 100 | Shank d: 16
307-0046 E5D73140 YG-1 14*16*35*90MM(E5D73140) | Spec: 14 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 16
307-1267 E5D73120C YG-1 12*12*50*110MM(E5D73120C) | Spec: 12 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 12
307-3131 E5D73200 YG-1 20*20*48*100MM(E5D73200) | Spec: 20 | Flute Length: 48 | Overall Length: 100 | Shank Diameter: 20
307-3186 E5D73160C YG-1 16*16*52*150MM(E5D73160C) | Spec: 16 | Flute Length: 52 | Overall Length: 150 | Shank Diameter: 16
307-4404 E5D73200C YG-1 20*20*55*160MM(E5D73200C) | Spec: 20 | Flute Length: 55 | Overall Length: 160 | Shank Dia: 20
