End Mills
YG-1

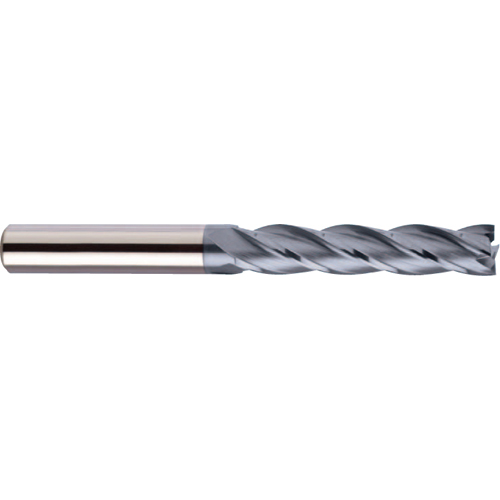

[YG-1] — SEM81710035 Carbide End Mill Carbide Long End Mill (X-POWER S)
Family ID: 304-4652
Carbide Long End Mill (X-POWER S) from YG-1, sourced from Korea.
29 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-4652 | SEM81710035 | YG-1 | 4F-10*10*35*90MM(SEM81710035) | Spec: 10.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 10 | ||
| 304-4689 | SEM81704020 | YG-1 | 4F-4*6*20*60MM(SEM81704020) | Spec: 4.0 | Flute Length: 20 | Overall Length: 60 | Shank Diameter: 6 | ||
| 304-5475 | SEM81710040 | YG-1 | 4F-10*10*40*100MM(SEM81710040) | Spec: 10.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 10 | ||
| 304-5925 | SEM81704030 | YG-1 | 4F-4*6*30*80MM(SEM81704030) | Spec: 4.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 6 | ||
| 304-5934 | SEM81708035 | YG-1 | 4F-8*8*35*90MM(SEM81708035) | Spec: 8.0 | Flute Length: 35 | Overall Length: 90 | Shank d: 8 | ||
| 304-5943 | SEM81708040 | YG-1 | 4F-8*8*40*100MM(SEM81708040) | Spec: 8.0 | Flute Length: 40 | Overall Length: 100 | Shank d: 8 | ||
| 304-5952 | SEM81710045 | YG-1 | 4F-10*10*45*110MM(SEM81710045) | Spec: 10.0 | Flute Length: 45 | Overall Length: 110 | Shank d: 10 | ||
| 304-5961 | SEM81710050 | YG-1 | 4F-10*10*50*120MM(SEM81710050) | Spec: 10.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 10 | ||
| 304-6003 | SEM81703025 | YG-1 | 4F-3*6*25*70MM(SEM81703025) | Spec: 3.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 6 | ||
| 304-6146 | SEM81703020 | YG-1 | 4F-3*6*20*65MM(SEM81703020) | Spec: 3.0 | Flute Length: 20 | Overall Length: 65 | Shank Diameter: 6 | ||
| 304-6173 | SEM81706030 | YG-1 | 4F-6*6*30*80MM(SEM81706030) | Spec: 6.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 6 | ||
| 304-6191 | SEM81705030 | YG-1 | 4F-5*6*30*80MM(SEM81705030) | Spec: 5.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 6 | ||
| 304-6234 | SEM81702012 | YG-1 | 4F-2*6*12*60MM(SEM81702012) | Spec: 2.0 | Flute Length: 12 | Overall Length: 60 | Shank Diameter: 6 | ||
| 304-7534 | SEM81703015 | YG-1 | 4F-3*6*15*60MM(SEM81703015) | Spec: 3.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | ||
| 304-7543 | SEM81705025 | YG-1 | 4F-5*6*25*70MM(SEM81705025) | Spec: 5.0 | Flute Length: 25 | Overall Length: 70 | Shank d: 6 | ||
| 304-7552 | SEM81706025 | YG-1 | 4F-6*6*25*70MM(SEM81706025) | Spec: 6.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 6 | ||
| 304-7561 | SEM81708030 | YG-1 | 4F-8*8*30*80MM(SEM81708030) | Spec: 8.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 8 | ||
| 304-8205 | SEM81702008 | YG-1 | 4F-2*6*8*60MM(SEM81702008) | Spec: 2.0 | Flute Length: 8 | Overall Length: 60 | Shank d: 6 | ||
| 304-8339 | SEM81704025 | YG-1 | 4F-4*6*25*70MM(SEM81704025) | Spec: 4.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 6 | ||
| 305-4817 | SEM81702016 | YG-1 | 4F-2*6*16*60MM(SEM81702016) | Spec: 2.0 | Flute Length: 16 | Overall Length: 60 | Shank Diameter: 6 | ||
| 305-4844 | SEM81705035 | YG-1 | 4F-5*6*35*90MM(SEM81705035) | Spec: 5.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 6 | ||
| 305-4853 | SEM81705040 | YG-1 | 4F-5*6*40*100MM(SEM81705040) | Spec: 5.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 6 | ||
| 305-4862 | SEM81706035 | YG-1 | 4F-6*6*35*100MM(SEM81706035) | Spec: 6.0 | Flute Length: 35 | Overall Length: 100 | Shank Diameter: 6 | ||
| 305-4871 | SEM81706040 | YG-1 | 4F-6*6*40*120MM(SEM81706040) | Spec: 6.0 | Flute Length: 40 | Overall Length: 120 | Shank Dia: 6 | ||
| 305-4880 | SEM81706045 | YG-1 | 4F-6*6*45*150MM(SEM81706045) | Spec: 6.0 | Flute Length: 45 | Overall Length: 150 | Shank D: 6 | ||
| 305-4899 | SEM81708045 | YG-1 | 4F-8*8*45*120MM(SEM81708045) | Spec: 8.0 | Flute Length: 45 | Overall Length: 120 | Shank d: 8 | ||
| 305-4905 | SEM81708050 | YG-1 | 4F-8*8*50*150MM(SEM81708050) | Spec: 8.0 | Flute Length: 50 | Overall Length: 150 | Shank Diameter: 8 | ||
| 305-4914 | SEM81710055 | YG-1 | 4F-10*10*55*150MM(SEM81710055) | Spec: 10.0 | Flute Length: 55 | Overall Length: 150 | Shank Diameter: 10 | ||
| 305-4923 | SEM81710060 | YG-1 | 4F-10*10*60*200MM(SEM81710060) | Spec: 10.0 | Flute Length: 60 | Overall Length: 200 | Shank Diameter: 10 |
