End Mills
YG-1

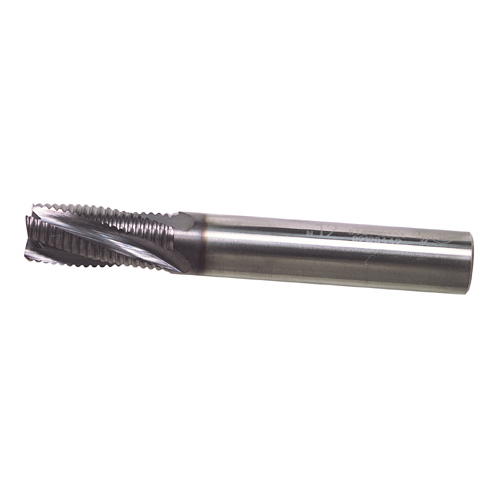

[YG-1] — SEM814140 Carbide End Mill Carbide Lapping End Mill (X-POWER S)
Family ID: 304-4591
Carbide Lapping End Mill (X-POWER S) from YG-1, sourced from Korea.
27 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-4591 | SEM814140 | YG-1 | 14*16*35*100MM(SEM814140) | Spec: 14.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank D: 16 | ||
| 304-5305 | SEM814120 | YG-1 | 12*12*30*80MM(SEM814120) | Spec: 12.0 | Flute Length: 30 | Flutes: 4 | Overall Length: 80 | Shank Diameter: 12 | ||
| 304-5448 | SEM814100 | YG-1 | 10*10*25*70MM(SEM814100) | Spec: 10.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 70 | Shank d: 10 | ||
| 304-5457 | SEM814160 | YG-1 | 16*16*40*100MM(SEM814160) | Spec: 16.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16 | ||
| 304-5642 | SEM8140708S | YG-1 | 7*8*18*70MM(SEM8140708S) | Spec: 7.0 | Flute Length: 18 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6 | ||
| 304-5651 | SEM814080 | YG-1 | 8*8*20*65MM(SEM814080) | Spec: 8.0 | Flute Length: 20 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8 | ||
| 304-5660 | SEM814200 | YG-1 | 20*20*50*100MM(SEM814200) | Spec: 20.0 | Flute Length: 50 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20 | ||
| 304-7604 | SEM814060 | YG-1 | 6*6*15*60MM(SEM814060) | Spec: 6.0 | Flute Length: 15 | Flutes: 3 | Overall Length: 60 | Shank Diameter: 6 | ||
| 305-4367 | SEM814030 | YG-1 | 3*6*8*50MM(SEM814030) | Spec: 3.0 | Flute Length: 8 | Flute Count: 3 | Overall Length: 80 | Shank Diameter: 6 | ||
| 305-4376 | SEM814040 | YG-1 | 4*6*10*50MM(SEM814040) | Spec: 4.0 | Flute Length: 10 | Number of Flutes: 3 | Overall Length: 50 | Shank D: 6 | ||
| 305-4385 | SEM814050 | YG-1 | 5*6*13*50MM(SEM814050) | Spec: 5.0 | Flute Length: 13 | Number of Flutes: 3 | Overall Length: 50 | Shank d: 6 | ||
| 305-4394 | SEM81406009 | YG-1 | 6*6*9*60MM(SEM81406009) | Spec: 6.0 | Flute Length: 9 | Number of Flutes: 3 | Overall Length: 60 | Shank Diameter: 6 | ||
| 305-4400 | SEM81407011 | YG-1 | 7*6*11*70MM(SEM81407011) | Spec: 7.0 | Flute Length: 11 | Number of Flutes: 3 | Overall Length: 70 | Shank Diameter: 6 | ||
| 305-4419 | SEM81408012 | YG-1 | 8*8*12*65MM(SEM81408012) | Spec: 8.0 | Flute Length: 12 | Number of Flutes: 3 | Overall Length: 65 | Shank Diameter: 8 | ||
| 305-4428 | SEM81409014 | YG-1 | 9*10*14*70MM(SEM81409014) | Spec: 9.0 | Flute Length: 14 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10 | ||
| 305-4437 | SEM814090 | YG-1 | 9*10*22*70MM(SEM814090) | Spec: 9.0 | Flute Length: 22 | Flute Count: 4 | Overall Length: 70 | Shank Diameter: 10 | ||
| 305-4446 | SEM81410015 | YG-1 | 10*10*15*70MM(SEM81410015) | Spec: 10.0 | Flute Length: 15 | Number of Flutes: 4 | Overall Length: 70 | Shank Diameter: 10 | ||
| 305-4455 | SEM81411017 | YG-1 | 11*12*17*80MM(SEM81411017) | Spec: 11.0 | Flute Length: 17 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12 | ||
| 305-4464 | SEM814110 | YG-1 | 11*12*27*80MM(SEM814110) | Spec: 11.0 | Flute Length: 27 | Number of Flutes: 4 | Overall Length: 80 | Shank Diameter: 12 | ||
| 305-4482 | SEM814130 | YG-1 | 13*12*35*100MM(SEM814130) | Spec: 13.0 | Flute Length: 35 | Number of Flutes: 4 | Overall Length: 100 | Shank d: 12 | ||
| 305-4491 | SEM81414025 | YG-1 | 14*14*25*100MM(SEM81414025) | Spec: 14.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 14 | ||
| 305-4507 | SEM81418030 | YG-1 | 18*16*30*100MM(SEM81418030) | Spec: 18.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16 | ||
| 305-4516 | SEM814180 | YG-1 | 18*18*40*100MM(SEM814180) | Spec: 18.0 | Flute Length: 40 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 18 | ||
| 305-4525 | SEM81420030 | YG-1 | 20*20*30*100MM(SEM81420030) | Spec: 20.0 | Flute Length: 30 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 20 | ||
| 305-4534 | SEM81425038 | YG-1 | 25*25*38*100MM(SEM81425038) | Spec: 25.0 | Flute Length: 38 | Number of Flutes: 5 | Overall Length: 100 | Shank Diameter: 25 | ||
| 305-4543 | SEM814250 | YG-1 | 25*25*50*100MM(SEM814250) | Spec: 25.0 | Flute Length: 50 | Flute Count: 5 | Overall Length: 100 | Shank Diameter: 25 | ||
| 305-5180 | SEM81416025 | YG-1 | 16*16*25*100MM(SEM81416025) | Spec: 16.0 | Flute Length: 25 | Number of Flutes: 4 | Overall Length: 100 | Shank Diameter: 16 |
