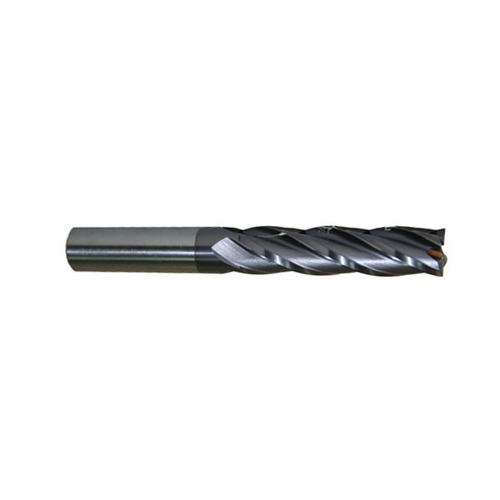

[YG-1] — EQ659020K End Mill HSS Long End Mill (Coated)
End Mills YG-1

[YG-1] — EQ659020K End Mill HSS Long End Mill (Coated)

Family ID: 301-5924

HSS Long End Mill (Coated) from YG-1, sourced from Korea.

35 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
301-5924 EQ659020K YG-1 4F-2*6*10*60MM TIALN (EQ659020K) | Spec: 2 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
301-5933 EQ659030K YG-1 4F-3*6*15*60MM TIALN (EQ659030K) | Spec: 3 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6
301-5942 EQ659040K YG-1 4F-4*8*20*70MM TIALN (EQ659040K) | Spec: 4 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8
301-5951 EQ659050K YG-1 4F-5*8*25*75MM TIALN (EQ659050K) | Spec: 5 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 8
301-5960 EQ659060K YG-1 4F-6*8*25*75MM TIALN (EQ659060K) | Spec: 6 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 8
301-5979 EQ659070K YG-1 4F-7*10*35*90MM TIALN (EQ659070K) | Spec: 7 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 10
301-5988 EQ659080K YG-1 4F-8*10*35*90MM TIALN (EQ659080K) | Spec: 8 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 10
301-5997 EQ659090K YG-1 4F-9*10*45*100MM TIALN (EQ659090K) | Spec: 9 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 10
301-6002 EQ659100K YG-1 4F-10*10*45*100MM TIALN (EQ659100K) | Spec: 10 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 10
301-6011 EQ659110K YG-1 4F-11*12*55*115MM TIALN (EQ659110K) | Spec: 11 | Flute Length: 55 | Overall Length: 115 | Shank d: 12
301-6020 EQ659120K YG-1 4F-12*12*55*115MM TIALN (EQ659120K) | Spec: 12 | Flute Length: 55 | Overall Length: 115 | Shank Diameter: 12
301-6039 EQ659130K YG-1 4F-13*12*55*115MM TIALN (EQ659130K) | Spec: 13 | Flute Length: 55 | Overall Length: 115 | Shank Diameter: 12
301-6048 EQ659140K YG-1 4F-14*16*55*120MM TIALN (EQ659140K) | Spec: 14 | Flute Length: 55 | Overall Length: 120 | Shank Diameter: 16
301-6057 EQ659150K YG-1 4F-15*16*65*130MM TIALN (EQ659150K) | Spec: 15 | Flute Length: 65 | Overall Length: 130 | Shank d: 16
301-6066 EQ659160K YG-1 4F-16*16*65*130MM TIALN (EQ659160K) | Spec: 16 | Flute Length: 65 | Overall Length: 130 | Shank Diameter: 16
301-6075 EQ659170K YG-1 4F-17*16*65*130MM TIALN (EQ659170K) | Spec: 17 | Flute Length: 65 | Overall Length: 130 | Shank Diameter: 16
301-6084 EQ659180K YG-1 4F-18*16*65*130MM TIALN (EQ659180K) | Spec: 18 | Flute Length: 65 | Overall Length: 130 | Shank Diameter: 16
301-6093 EQ659190K YG-1 4F-19*20*75*145MM TIALN (EQ659190K) | Spec: 19 | Flute Length: 75 | Overall Length: 145 | Shank Diameter: 20
301-6109 EQ659200K YG-1 4F-20*20*75*145MM TIALN (EQ659200K) | Spec: 20 | Flute Length: 75 | Overall Length: 145 | Shank d: 20
301-6118 EQ659210K YG-1 4F-21*20*75*145MM TIALN (EQ659210K) | Spec: 21 | Flute Length: 75 | Overall Length: 145 | Shank Diameter: 20
301-6127 EQ659220K YG-1 4F-22*20*75*145MM TIALN (EQ659220K) | Spec: 22 | Flute Length: 75 | Overall Length: 145 | Shank Diameter: 20
301-6136 EQ659230K YG-1 4F-23*25*90*165MM TIALN (EQ659230K) | Spec: 23 | Flute Length: 90 | Overall Length: 165 | Product Type: Coated 4F | Shank Diameter: 25
301-6145 EQ659240K YG-1 4F-24*25*90*165MM TIALN (EQ659240K) | Spec: 24 | Flute Length: 90 | Overall Length: 165 | Product Name: 4F Coating | Shank Diameter: 25
301-6154 EQ659250K YG-1 4F-25*25*90*165MM TIALN (EQ659250K) | Spec: 25 | Flute Length: 90 | Overall Length: 165 | Product Name: Coated 4F | Shank Diameter: 25
301-6163 EQ659260K YG-1 4F-26*25*90*165MM TIALN (EQ659260K) | Spec: 26 | Flute Length: 90 | Overall Length: 165 | Product Name: Coated 4F | Shank D: 25
301-6172 EQ659270K YG-1 4F-27*25*90*165MM TIALN (EQ659270K) | Spec: 27 | Flute Length: 90 | Overall Length: 165 | Product Name: Coated 4F | Shank d: 25
301-6181 EQ659280K YG-1 4F-28*25*90*165MM TIALN (EQ659280K) | Spec: 28 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-6190 EQ659290K YG-1 4F-29*25*90*165MM TIALN (EQ659290K) | Spec: 29 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-6206 EQ659300K YG-1 4F-30*25*90*165MM TIALN (EQ659300K) | Spec: 30 | Flute Length: 90 | Overall Length: 165 | Shank Diameter: 25
301-6224 EQ659320K YG-1 4F-32*32*95*180MM TIALN (EQ659320K) | Spec: 32 | Flute Length: 95 | Overall Length: 180 | Shank Diameter: 32
301-6233 EQ659330K YG-1 4F-33*32*100*185MM TIALN (EQ659330K) | Spec: 33 | Flute Length: 100 | Overall Length: 185 | Shank D: 32
301-6242 EQ659340K YG-1 4F-34*32*100*185MM TIALN (EQ659340K) | Spec: 34 | Flute Length: 100 | Overall Length: 185 | Shank d: 32
301-6251 EQ659350K YG-1 4F-35*32*100*185MM TIALN (EQ659350K) | Spec: 35 | Flute Length: 100 | Overall Length: 185 | Shank d: 32
301-6260 EQ659360K YG-1 4F-36*32*105*190MM TIALN (EQ659360K) | Spec: 36 | Flute Length: 105 | Overall Length: 190 | Shank d: 32
301-6303 EQ659400K YG-1 4F-40*32*110*195MM TIALN (EQ659400K) | Spec: 40 | Flute Length: 110 | Overall Length: 195 | Shank Diameter: 32
