![[YG-1] — EMD82060 Carbide End Mill Carbide End Mill (SUS-CUT)](https://img.prosourcemro.com/2026/05/3225984-1-1.jpg)
End Mills
YG-1

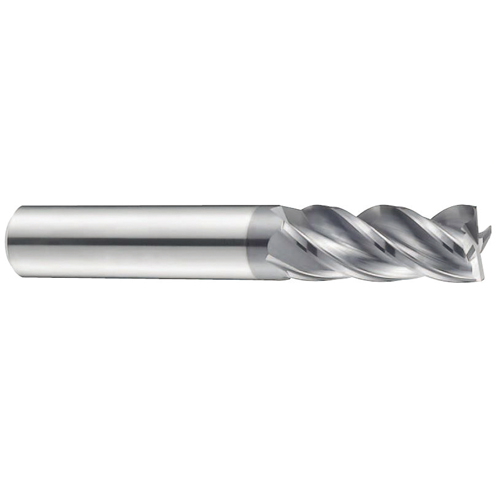

[YG-1] — EMD82060 Carbide End Mill Carbide End Mill (SUS-CUT)
Family ID: 306-8254
Carbide End Mill (SUS-CUT) from YG-1, sourced from Korea.
29 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 306-8254 | EMD82060 | YG-1 | 4F-6*6*15*60MM(EMD82060) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank d: 6 | ||
| 306-8500 | EMD8204012 | YG-1 | 4F-4*6*12*60MM(EMD8204012) | Spec: 4.0 | Flute Length: 12 | Overall Length: 60 | Shank D: 6 | ||
| 306-8519 | EMD82050 | YG-1 | 4F-5*6*15*55MM(EMD82050) | Spec: 5.0 | Flute Length: 15 | Overall Length: 55 | Shank Diameter: 6 | ||
| 306-8528 | EMD82080 | YG-1 | 4F-8*8*20*70MM(EMD82080) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank d: 8 | ||
| 306-8537 | EMD82100 | YG-1 | 4F-10*10*25*75MM(EMD82100) | Spec: 10.0 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 10 | ||
| 306-8546 | EMD82120 | YG-1 | 4F-12*12*30*80MM(EMD82120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank d: 12 | ||
| 306-8555 | EMD82160 | YG-1 | 4F-16*16*42*100MM(EMD82160) | Spec: 16.0 | Flute Length: 42 | Overall Length: 100 | Shank Diameter: 16 | ||
| 306-8564 | EMD82200 | YG-1 | 4F-20*20*48*100MM(EMD82200) | ||
| 306-9147 | EMD82010 | YG-1 | 4F-1*6*2.5*50MM(EMD82010) | ||
| 306-9156 | EMD82030 | YG-1 | 4F-3*6*8*55MM(EMD82030) | ||
| 306-9165 | EMD82040 | YG-1 | 4F-4*6*10*55MM(EMD82040) | ||
| 306-9369 | EMD82020 | YG-1 | 4F-2*6*6*50MM(EMD82020) | ||
| 306-9493 | EMD8203010 | YG-1 | 4F-3*6*10*60MM(EMD8203010) | ||
| 306-9581 | EMD82015 | YG-1 | 4F-1.5*6*4*50MM(EMD82015) | ||
| 307-1382 | EMD82070 | YG-1 | 4F-7*8*20*80MM(EMD82070) | ||
| 307-1391 | EMD82090 | YG-1 | 4F-9*10*25*80MM(EMD82090) | ||
| 307-3344 | EMD82140 | YG-1 | 4F-14*16*35*90MM(EMD82140) | ||
| 307-3380 | EMD82025 | YG-1 | 4F-2.5*6*7*50MM(EMD82025) | ||
| 307-5591 | EMD8206020 | YG-1 | 4F-6*6*20*65MM(EMD8206020) | ||
| 307-7128 | EMD8212040 | YG-1 | 4F-12*12*40*90MM(EMD8212040) | ||
| 308-1839 | EMD82045 | YG-1 | 4F-4.5*6*12*55MM(EMD82045) | ||
| 308-1848 | EMD82065 | YG-1 | 4F-6.5*8*15*60MM(EMD82065) | ||
| 308-1857 | EMD8208030 | YG-1 | 4F-8*8*30*80MM(EMD8208030) | ||
| 308-1866 | EMD82085 | YG-1 | 4F-8.5*10*20*70MM(EMD82085) | ||
| 308-1875 | EMD8210035 | YG-1 | 4F-10*10*35*85MM(EMD8210035) | ||
| 308-7958 | EMD82180 | YG-1 | 4F-18*16*45*100MM(EMD82180) | ||
| 322-2047 | EMD82012 | YG-1 | 4F-1.2*6*3.0*50MM(EMD82012) | ||
| 322-2056 | EMD82055 | YG-1 | 4F-5.5*6*15*60MM(EMD82055) | ||
| 322-2427 | EMD82035 | YG-1 | 4F-3.5*6*10*55MM(EMD82035) |
