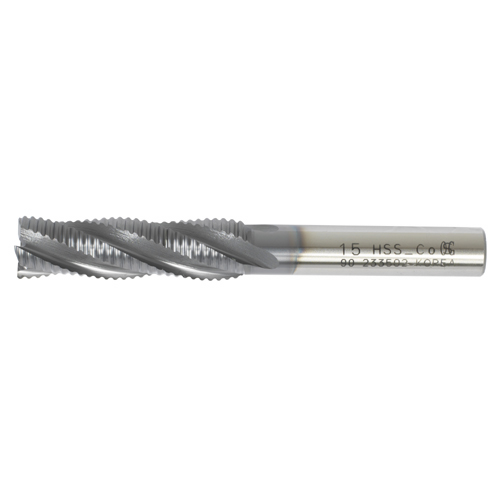

[OSG] — 680846K Long Flapping End Mill (Coated)
End Mills OSG

[OSG] — 680846K Long Flapping End Mill (Coated)

Family ID: 311-9141

OSG 680846K Long Flute End Mill with coating delivers precise material removal in deep-cavity and contour milling applications, sourced direct from Korea. The extended flute length makes it well-suited for reaching deep pockets, stepped features, and complex profiles that standard-length end mills cannot access, commonly used in mold, die, and precision part machining. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

36 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-9141 680846K OSG 6MM(TICN-REEL)(680846K) | Spec: 6 | Flute Length: 24 | Overall Length: 68 | Product Name: Coating (TiCN) | Shank Diameter: 6
311-9150 680848K OSG 8MM(TICN-REEL)(680848K) | Spec: 8 | Flute Length: 38 | Overall Length: 88 | Product Name: Coated (TiCN) | Shank Diameter: 10
311-9178 680852K OSG 12MM(TICN-REEL)(680852K) | Spec: 12 | Flute Length: 53 | Overall Length: 110 | Description: Coating(TiCN) | Shank d: 12
311-9187 680855K OSG 15MM(TICN-REEL)(680855K) | Spec: 15 | Flute Length: 53 | Overall Length: 110 | Product Name: Coating (TiCN) | Shank d: 12
311-9196 680856K OSG 16MM(TICN-REEL)(680856K) | Spec: 16 | Flute Length: 63 | Overall Length: 123 | Description: Coating (TiCN) | Shank Diameter: 16
311-9220 680860K OSG 20MM(TICN-REEL)(680860K) | Spec: 20 | Flute Length: 75 | Overall Length: 141 | Product Name: Coating (TiCN) | Shank Diameter: 20
311-9257 680866K OSG 26MM(TICN-REEL)(680866K) | Spec: 26 | Flute Length: 90 | Overall Length: 166 | Product Name: Coating (TiCN) | Shank Diameter: 25
311-9266 680868K OSG 28MM(TICN-REEL)(680868K) | Spec: 28 | Flute Length: 90 | Overall Length: 166 | Product Name: Coated (TiCN) | Shank Diameter: 25
312-8468 680875K OSG 35MM(TICN-REEL)(680875K) | Spec: 35 | Flute Length: 106 | Overall Length: 186 | Product Name: Coated (TiCN) | Shank Diameter: 32
312-8477 680847K OSG 7MM(TICN-REEL)(680847K) | Spec: 7 | Flute Length: 30 | Overall Length: 80 | Product Name: Coating (TiCN) | Shank Diameter: 10
312-9087 680865K OSG 25MM(TiCN-REEL)(680865K) | Spec: 25 | Flute Length: 90 | Overall Length: 166 | Product Name: Coating (TiCN) | Shank d: 25
313-9039 680849K OSG 9MM(TICN-REEL)(680849K) | Spec: 9 | Flute Length: 38 | Overall Length: 88 | Product Name: Coating (TiCN) | Shank Diameter: 10
313-9048 680850K OSG 10MM(TICN-REEL)(680850K) | Spec: 10 | Flute Length: 45 | Overall Length: 95 | Product Name: Coating (TiCN) | Shank Diameter: 10
313-9057 680853K OSG 13MM(TICN-REEL)(680853K) | Spec: 13 | Flute Length: 53 | Overall Length: 110 | Product Name: Coating (TiCN) | Shank Diameter: 12
313-9066 680854K OSG 14MM(TICN-REEL)(680854K) | Spec: 14 | Flute Length: 53 | Overall Length: 110 | Product Name: Coated (TiCN) | Shank Diameter: 12
313-9075 680857K OSG 17MM(TICN-REEL)(680857K) | Spec: 17 | Flute Length: 63 | Overall Length: 123 | Product Type: Coated (TiCN) | Shank Diameter: 16
313-9093 680863K OSG 23MM(TICN-REEL)(680863K) | Spec: 23 | Flute Length: 75 | Overall Length: 141 | Product Name: Coated (TiCN) | Shank Diameter: 20
313-9109 680864K OSG 24MM(TICN-REEL)(680864K) | Spec: 24 | Flute Length: 90 | Overall Length: 166 | Product Name: Coated (TiCN) | Shank Diameter: 25
313-9118 680867K OSG 27MM(TICN-REEL)(680867K) | Spec: 27 | Flute Length: 90 | Overall Length: 166 | Description: Coating (TiCN) | Shank Diameter: 25
313-9127 680869K OSG 29MM(TICN-REEL)(680869K) | Spec: 29 | Flute Length: 90 | Overall Length: 166 | Product Name: Coated (TiCN) | Shank Diameter: 25
313-9136 680870K OSG 30MM(TICN-REEL)(680870K) | Spec: 30 | Flute Length: 90 | Overall Length: 166 | Product Name: Coated (TiCN) | Shank Diameter: 25
313-9145 680871K OSG 31MM(TICN-REEL)(680871K) | Spec: 31 | Flute Length: 106 | Overall Length: 186 | Product Name: Coated (TiCN) | Shank Diameter: 32
313-9154 680873K OSG 33MM(TICN-REEL)(680873K) | Spec: 33 | Flute Length: 106 | Overall Length: 186 | Product Name: Coated (TiCN) | Shank Diameter: 32
313-9163 680874K OSG 34MM(TICN-REEL)(680874K) | Spec: 34 | Flute Length: 106 | Overall Length: 186 | Product Name: Coating (TiCN) | Shank d: 32
313-9181 680877K OSG 37MM(TICN-REEL)(680877K) | Spec: 37 | Flute Length: 106 | Overall Length: 186 | Product Name: Coated (TiCN) | Shank Diameter: 32
313-9190 680879K OSG 39MM(TICN-REEL)(680879K) | Spec: 39 | Flute Length: 125 | Overall Length: 205 | Product Name: Coated (TiCN) | Shank Diameter: 32
313-9206 680880K OSG 40MM(TICN-REEL)(680880K) | Spec: 40 | Flute Length: 125 | Overall Length: 205 | Product Name: Coating (TiCN) | Shank Diameter: 32
313-9215 680881K OSG 41MM(TICN-REEL)(680881K) | Spec: 41 | Flute Length: 125 | Overall Length: 227 | Description: Coated (TiCN) | Shank Diameter: 42
313-9224 680882K OSG 42MM(TICN-REEL)(680882K) | Spec: 42 | Flute Length: 125 | Overall Length: 227 | Product Name: Coated (TiCN) | Shank Diameter: 42
313-9233 680883K OSG 43MM(TICN-REEL)(680883K) | Spec: 43 | Flute Length: 125 | Overall Length: 227 | Product Name: Coated(TiCN) | Shank Diameter: 42
313-9242 680884K OSG 44MM(TICN-REEL)(680884K) | Spec: 44 | Flute Length: 125 | Overall Length: 227 | Product Name: Coating (TiCN) | Shank d: 42
313-9251 680885K OSG 45MM(TICN-REEL)(680885K) | Spec: 45 | Flute Length: 125 | Overall Length: 227 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-9260 680886K OSG 46MM(TICN-REEL)(680886K) | Spec: 46 | Flute Length: 125 | Overall Length: 227 | Product Name: Coating (TiCN) | Shank Diameter: 42
313-9279 680887K OSG 47MM(TICN-REEL)(680887K) | Spec: 47 | Flute Length: 125 | Overall Length: 227 | Product Name: Coated (TiCN) | Shank Diameter: 42
313-9288 680888K OSG 48MM(TICN-REEL)(680888K) | Spec: 48 | Flute Length: 150 | Overall Length: 252 | Product Name: Coated (TiCN) | Shank Diameter: 42
313-9297 680889K OSG 49MM(TICN-REEL)(680889K) | Spec: 49 | Flute Length: 150 | Overall Length: 252 | Product Name: Coating (TiCN) | Shank d: 42
