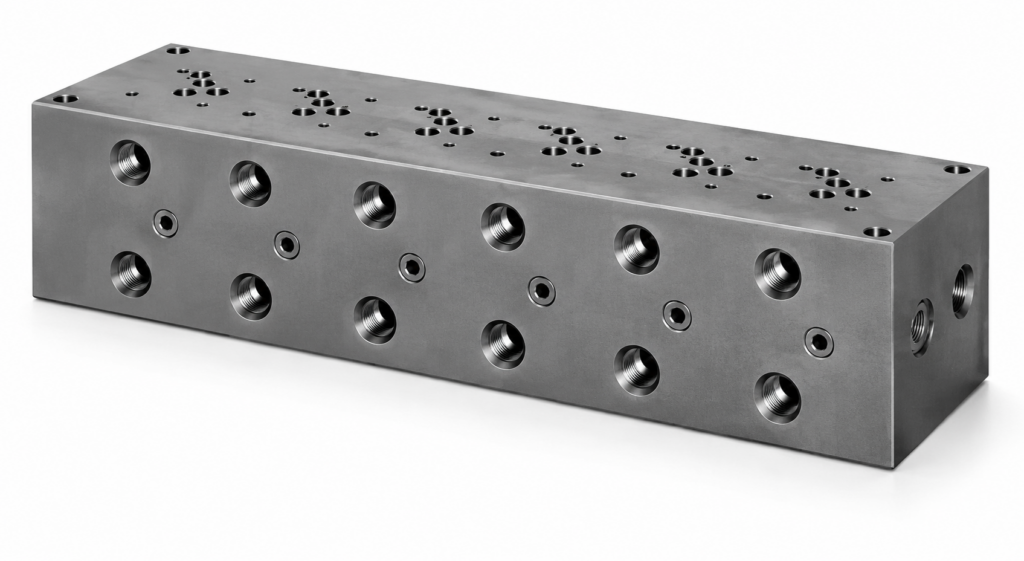

Yuken — 03 Series Modular Base Plate
Family ID: YUK-FMOD-03-BASEPLATE
03 Series Modular Valves — Modular Base Plate. Sandwich/stack mounting. Detailed specifications by inquiry.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MMC-03-T-*-21 | Base plate 03 | Yuken | Series: 03 Modular | Type: Base plate | Max Pressure: 35 MPa | Port Option: RFQ | ||
| MMC-03-T-1-21 | Modular base plate, threaded, 1-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 1 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-2-21 | Modular base plate, threaded, 2-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 2 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-3-21 | Modular base plate, threaded, 3-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 3 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-4-21 | Modular base plate, threaded, 4-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 4 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-5-21 | Modular base plate, threaded, 5-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 5 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-6-21 | Modular base plate, threaded, 6-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 6 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa | ||
| MMC-03-T-7-21 | Modular base plate, threaded, 7-station | Yuken | Series: 03 (3/8) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Base plate (sub-plate) | Piping: T: threaded | Stations: 7 | Ports: Rc 3/4 (P/T), Rc 1/2 (A/B) | Max Pressure: 25 MPa |
