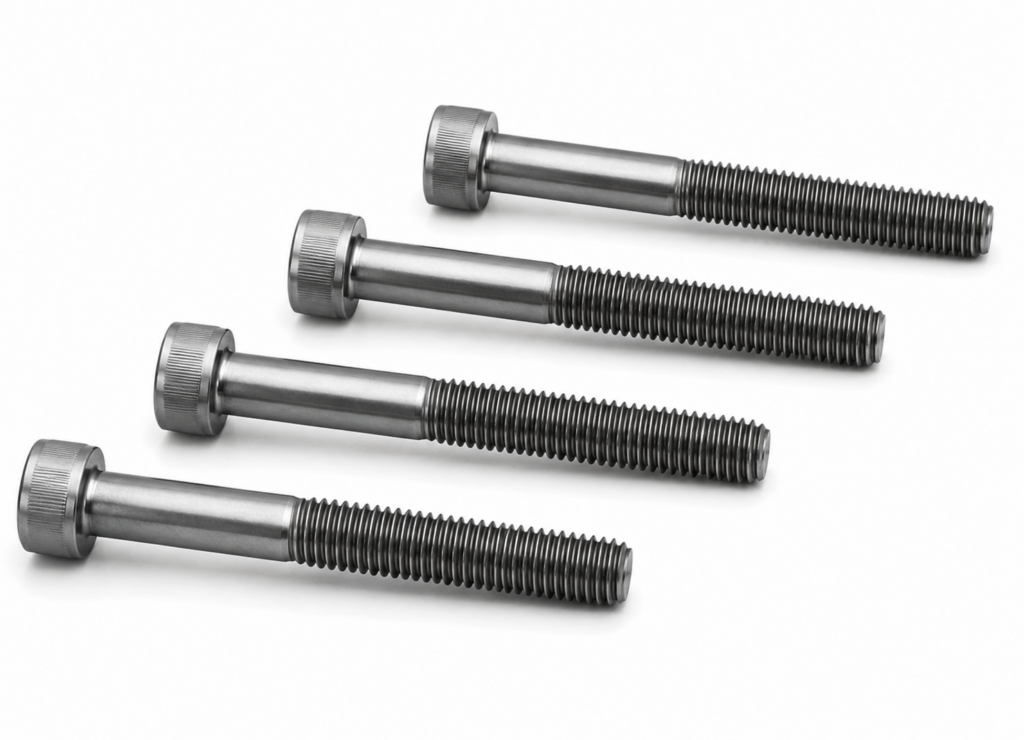

Yuken — 04 Series Modular Mounting Bolt Kit
Family ID: YUK-FMOD-04-BOLTKIT
04 Series Modular Valves — Modular Mounting Bolt Kit. Sandwich/stack mounting. Detailed specifications by inquiry.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MBK-04-01-10 | Mounting bolt kit, code 01 | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (M6×2 + M10×4 studs + nuts / set) | Bolt Code: 01: M6 125 / M10 140 mm (1 valve) | ||
| MBK-04-02-10 | Mounting bolt kit, code 02 | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (M6×2 + M10×4 studs + nuts / set) | Bolt Code: 02: M6 195 / M10 210 mm (2) | ||
| MBK-04-03-10 | Mounting bolt kit, code 03 | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (M6×2 + M10×4 studs + nuts / set) | Bolt Code: 03: M6 265 / M10 280 mm (3) | ||
| MBK-04-04-10 | Mounting bolt kit, code 04 | Yuken | Series: 04 (1/2) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Mounting bolt kit (M6×2 + M10×4 studs + nuts / set) | Bolt Code: 04: M6 335 / M10 350 mm (4) |
