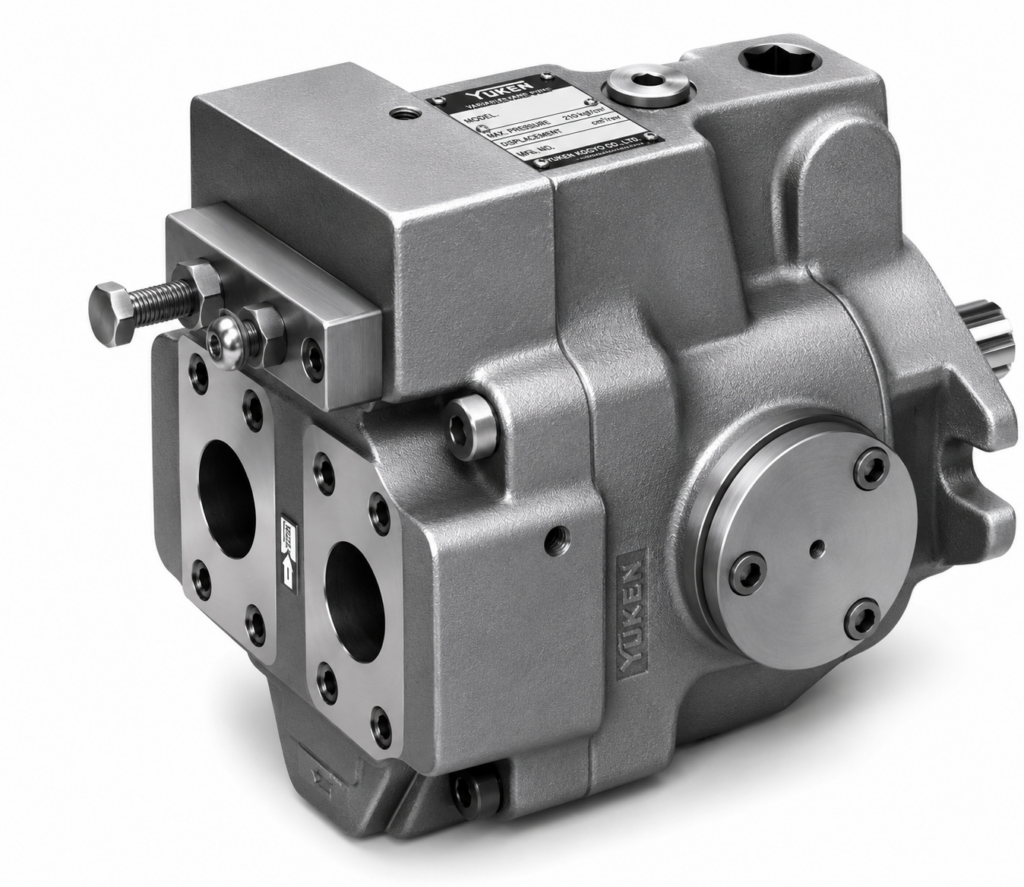

[Yuken] — A Series A10 Variable Displacement Piston Pump (Pressure Compensator, 10.0 cm3/rev)
Piston Pumps Yuken

[Yuken] — A Series A10 Variable Displacement Piston Pump (Pressure Compensator, 10.0 cm3/rev)

Family ID: YUKEN-A-A10

"A" Series Variable Displacement Piston Pumps - Single Pump, Pressure Compensator Type.

3 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
A10-FR01B-13 Yuken A10 (10.0 cm3/rev), Flange mount, Axial port, pressure range B (1.2-7 MPa) Yuken Series: A | Frame: A10 | Geometric Displacement: 10.0 cm3/rev | Min. Adjustment Flow: 2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator (01) | Pressure Adjustment Range: 1.2-7 MPa (B) | Port Position: Axial port | Design Number: 13 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Mass: 8.5 kg
A10-FR01C-13 Yuken A10 (10.0 cm3/rev), Flange mount, Axial port, pressure range C (2.0-16 MPa) Yuken Series: A | Frame: A10 | Geometric Displacement: 10.0 cm3/rev | Min. Adjustment Flow: 2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator (01) | Pressure Adjustment Range: 2.0-16 MPa (C) | Port Position: Axial port | Design Number: 13 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Mass: 8.5 kg
A10-FR01H-13 Yuken A10 (10.0 cm3/rev), Flange mount, Axial port, pressure range H (2.0-21 MPa) Yuken Series: A | Frame: A10 | Geometric Displacement: 10.0 cm3/rev | Min. Adjustment Flow: 2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator (01) | Pressure Adjustment Range: 2.0-21 MPa (H) | Port Position: Axial port | Design Number: 13 | Rated Pressure: 16 MPa | Max. Working Pressure: 21 MPa | Allowable Speed: 600-1800 r/min | Mass: 8.5 kg
