Piston Pumps Yuken

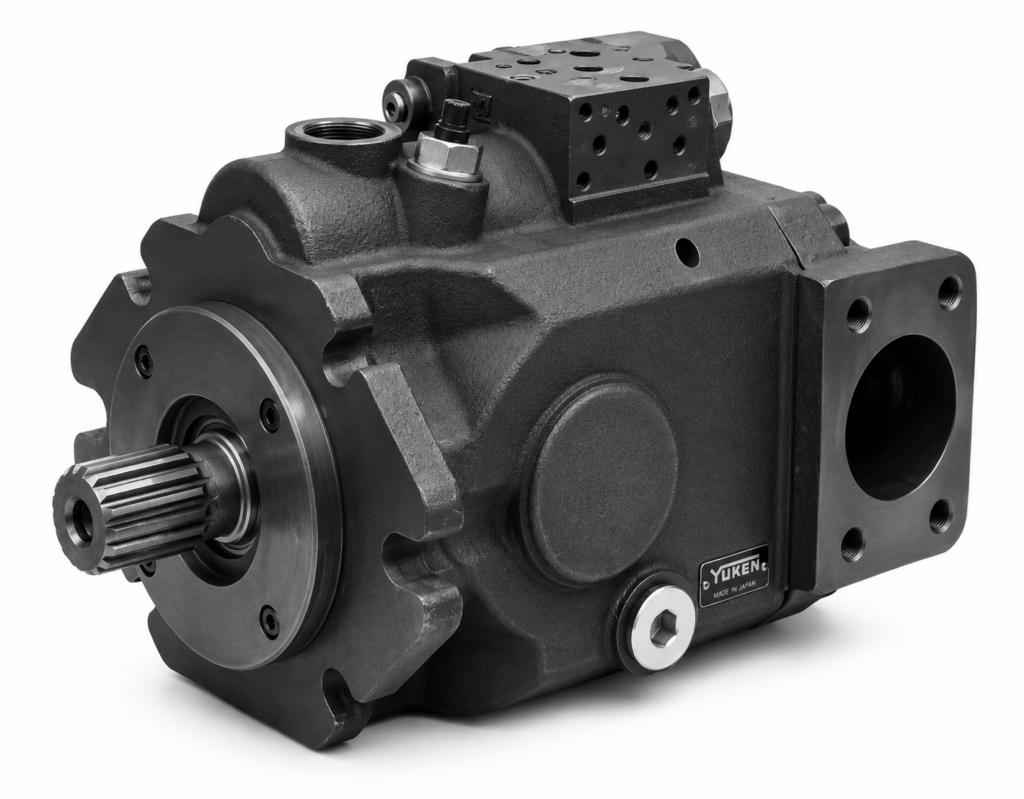

[Yuken] — A3HM Series High Pressure Variable Displacement Piston Pump (Load Sensing, 18.6-100.7 cm3/rev)

Family ID: YUKEN-A3HM-14

"A3HM" Series Variable Displacement Piston Pumps - Single Pump, Load Sensing Type.

6 product codes available in this family

Product Codes & Specifications

	Product Code	Description	Brand	Spec
	A3HM18-R14	Yuken A3HM18 (18.6 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM18 \| Geometric Displacement: 18.6 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-3400 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 12 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
	A3HM28-R14	Yuken A3HM28 (28.7 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM28 \| Geometric Displacement: 28.7 cm3/rev \| Min. Adjustment Flow: 17.8 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-3200 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 14 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
	A3HM45-R14	Yuken A3HM45 (45.7 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM45 \| Geometric Displacement: 45.7 cm3/rev \| Min. Adjustment Flow: 27.5 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-2700 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 21 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
	A3HM63-R14	Yuken A3HM63 (63.5 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM63 \| Geometric Displacement: 63.5 cm3/rev \| Min. Adjustment Flow: 44.0 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-2600 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 24.5/25 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
	A3HM85-R14	Yuken A3HM85 (85.6 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM85 \| Geometric Displacement: 85.6 cm3/rev \| Min. Adjustment Flow: 61.3 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-2500 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 36 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
	A3HM100-R14	Yuken A3HM100 (100.7 cm3/rev) Load Sensing; full code per configuration (RFQ)	Yuken	Series: A3HM \| Frame: A3HM100 \| Geometric Displacement: 100.7 cm3/rev \| Min. Adjustment Flow: 70.5 cm3/rev \| Direction of Rotation: Clockwise (viewed from shaft end) \| Control Type: Load Sensing (14) \| Pressure Adjustment Range: 3.0-31.5 MPa \| Rated Pressure: 31.5 MPa \| Max. Working Pressure: 35 MPa \| Allowable Speed: 600-2300 r/min \| Suction Pressure: -20 kPa to +400 kPa \| Seal: FKM (fluororubber) \| Mass: 36 kg \| Note: Mobile/engine-driven high-pressure pump; thru-drive standard \| Full Model Code: Mounting/shaft/port/design specified at order (catalog: contact supplier) (RFQ)
