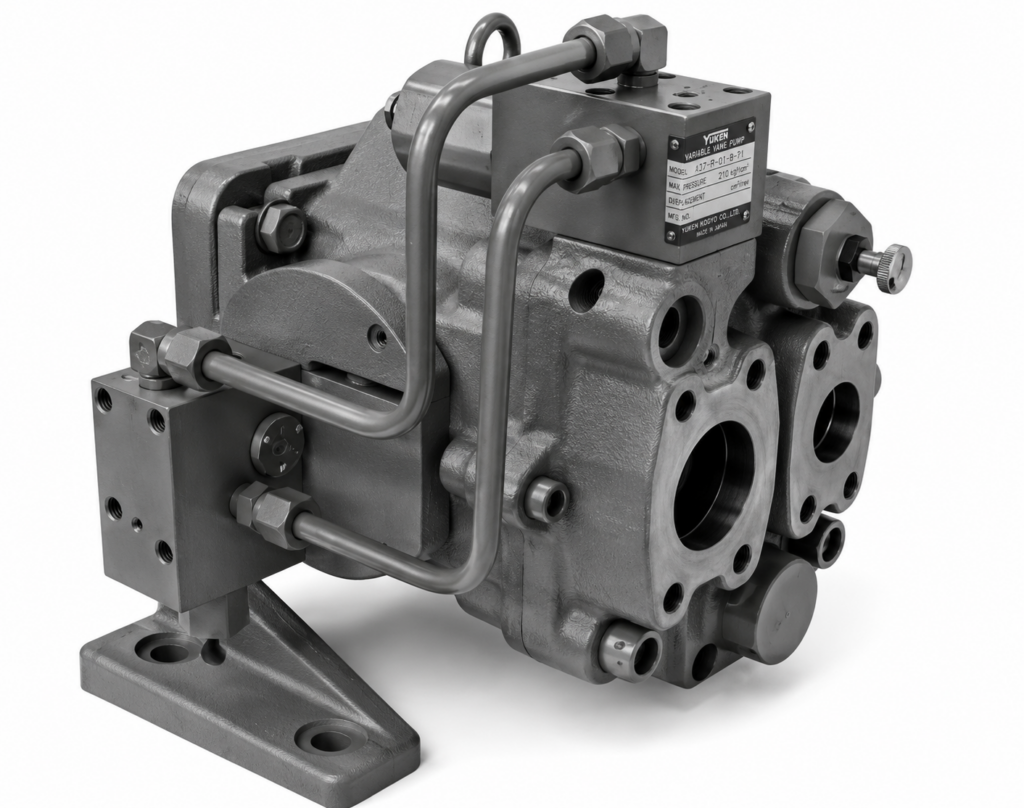

[Yuken] — A3H Series High Pressure Variable Displacement Piston Pump (Constant Power/Torque Control, 37.1-180.7 cm3/rev)
Piston Pumps Yuken

[Yuken] — A3H Series High Pressure Variable Displacement Piston Pump (Constant Power/Torque Control, 37.1-180.7 cm3/rev)

Family ID: YUKEN-A3H-09

"A3H" Series Variable Displacement Piston Pumps - Single Pump, Constant Power(Torque) Control Type.

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
A3H37-FR09K-10 Yuken A3H37 (37.1 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H37 | Geometric Displacement: 37.1 cm3/rev | Min. Adjustment Flow: 16.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2700 r/min | Mass: 23.0 kg (flange) / 30.5 kg (foot)
A3H37-LR09K-10 Yuken A3H37 (37.1 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H37 | Geometric Displacement: 37.1 cm3/rev | Min. Adjustment Flow: 16.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2700 r/min | Mass: 23.0 kg (flange) / 30.5 kg (foot)
A3H56-FR09K-10 Yuken A3H56 (56.3 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H56 | Geometric Displacement: 56.3 cm3/rev | Min. Adjustment Flow: 35.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2500 r/min | Mass: 29.0 kg (flange) / 36.5 kg (foot)
A3H56-LR09K-10 Yuken A3H56 (56.3 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H56 | Geometric Displacement: 56.3 cm3/rev | Min. Adjustment Flow: 35.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2500 r/min | Mass: 29.0 kg (flange) / 36.5 kg (foot)
A3H71-FR09K-10 Yuken A3H71 (70.7 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H71 | Geometric Displacement: 70.7 cm3/rev | Min. Adjustment Flow: 45.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2300 r/min | Mass: 38.0 kg (flange) / 45.5 kg (foot)
A3H71-LR09K-10 Yuken A3H71 (70.7 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H71 | Geometric Displacement: 70.7 cm3/rev | Min. Adjustment Flow: 45.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2300 r/min | Mass: 38.0 kg (flange) / 45.5 kg (foot)
A3H100-FR09K-10 Yuken A3H100 (100.5 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H100 | Geometric Displacement: 100.5 cm3/rev | Min. Adjustment Flow: 63.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2100 r/min | Mass: 48.3 kg (flange) / 76.3 kg (foot)
A3H100-LR09K-10 Yuken A3H100 (100.5 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H100 | Geometric Displacement: 100.5 cm3/rev | Min. Adjustment Flow: 63.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-2100 r/min | Mass: 48.3 kg (flange) / 76.3 kg (foot)
A3H145-FR09K-10 Yuken A3H145 (145.2 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H145 | Geometric Displacement: 145.2 cm3/rev | Min. Adjustment Flow: 95.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-1800 r/min | Mass: 63.0 kg (flange) / 91.0 kg (foot)
A3H145-LR09K-10 Yuken A3H145 (145.2 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H145 | Geometric Displacement: 145.2 cm3/rev | Min. Adjustment Flow: 95.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-1800 r/min | Mass: 63.0 kg (flange) / 91.0 kg (foot)
A3H180-FR09K-10 Yuken A3H180 (180.7 cm3/rev) high-pressure Constant Power/Torque Control, Flange mount Yuken Series: A3H | Frame: A3H180 | Geometric Displacement: 180.7 cm3/rev | Min. Adjustment Flow: 130.0 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-1800 r/min | Mass: 74.2 kg (flange) / 102.2 kg (foot)
A3H180-LR09K-10 Yuken A3H180 (180.7 cm3/rev) high-pressure Constant Power/Torque Control, Foot mount Yuken Series: A3H | Frame: A3H180 | Geometric Displacement: 180.7 cm3/rev | Min. Adjustment Flow: 130.0 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power (Torque) Control (09) | Torque Setting: Specify at order (RFQ) | Shaft End: Parallel key (K) | Design Number: 10 | Max. Working Pressure: 35 MPa | Allowable Speed: 600-1800 r/min | Mass: 74.2 kg (flange) / 102.2 kg (foot)
