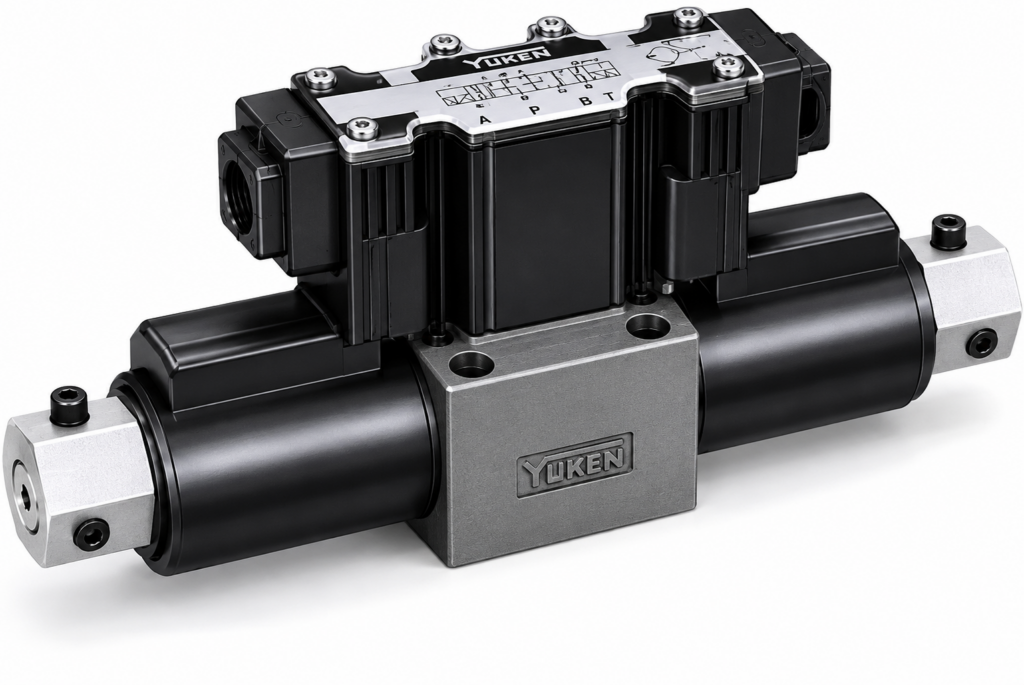

[Yuken] — EHDFG-01 Proportional Directional & Flow Control Valve (25 MPa, rated 30 L/min, size 01)
Family ID: YK-EHDFG-01
Proportional Electro-Hydraulic Directional and Flow Control Valves. Combines speed (flow) control and directional control in a single valve, so that an actuator's speed and direction can both be handled without a separate directional valve, simplifying the hydraulic circuit and reducing cost. Sub-plate mounting, valve size 01. Max operating pressure 25 MPa, tank port pressure 7 MPa, rated flow 30 L/min at 6.7 MPa valve pressure drop. Spool forms 3C2 and 3C40; meter-in (Y), meter-out (X) and meter-in/out (XY) control. Coil 10.5Ω, supply DC24V (40 W max).
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EHDFG-01-30-3C2-XY-30 | EHDFG-01 Directional&Flow, 3C2, Meter-in / Meter-out control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C2 | Control Direction: Meter-in / Meter-out control (XY) | Coil: 10.5Ω, DC24V | Design No.: 30 | ||
| EHDFG-01-30-3C2-X-30 | EHDFG-01 Directional&Flow, 3C2, Meter-out control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C2 | Control Direction: Meter-out control (X) | Coil: 10.5Ω, DC24V | Design No.: 30 | ||
| EHDFG-01-30-3C2-Y-30 | EHDFG-01 Directional&Flow, 3C2, Meter-in control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C2 | Control Direction: Meter-in control (Y) | Coil: 10.5Ω, DC24V | Design No.: 30 | ||
| EHDFG-01-30-3C40-XY-30 | EHDFG-01 Directional&Flow, 3C40, Meter-in / Meter-out control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C40 | Control Direction: Meter-in / Meter-out control (XY) | Coil: 10.5Ω, DC24V | Design No.: 30 | ||
| EHDFG-01-30-3C40-X-30 | EHDFG-01 Directional&Flow, 3C40, Meter-out control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C40 | Control Direction: Meter-out control (X) | Coil: 10.5Ω, DC24V | Design No.: 30 | ||
| EHDFG-01-30-3C40-Y-30 | EHDFG-01 Directional&Flow, 3C40, Meter-in control, rated 30L/min | Yuken | Type: Proportional Directional & Flow Control Valve | Series: EHDFG | Mounting: Sub-plate (G) | Valve Size: 01 | Rated Flow: 30 L/min (@6.7 MPa drop) | Max Pressure: 25 MPa | Tank Port Pressure: 7 MPa | Spool Form: 3C40 | Control Direction: Meter-in control (Y) | Coil: 10.5Ω, DC24V | Design No.: 30 |
