Single Vane Pumps
Yuken

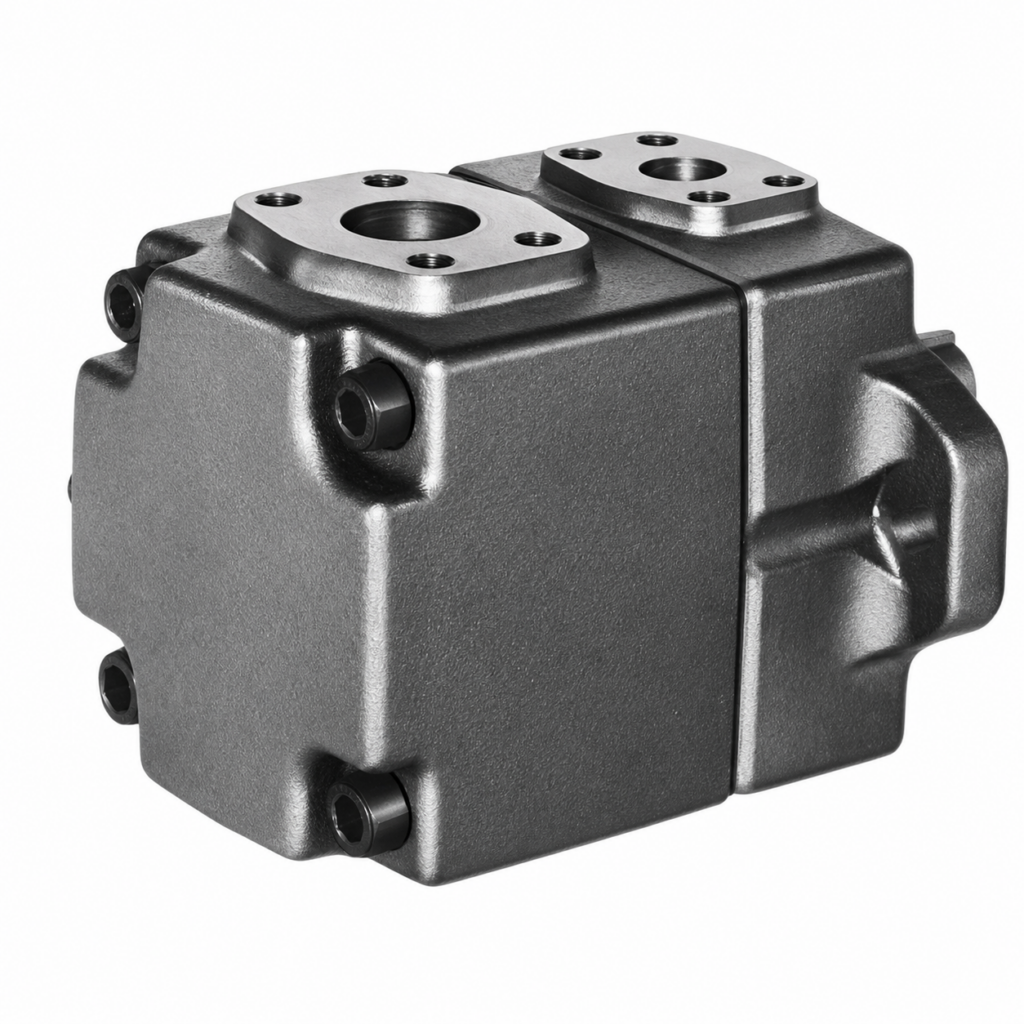

[Yuken] — PV2R3 Series Single Vane Pump (high-pressure/high-performance, 21 MPa)
Family ID: YKN-PV2R3-VANE
PV2R Series Single Vane Pumps. A high-pressure, high-performance pump developed especially for low-noise applications, usable over a wide range with discharge 5.8 to 237 cm3/rev. Cartridge-kit internals for very easy maintenance. Max working pressure 21 MPa. Foot and flange mounting types. Clockwise rotation standard; top discharge/suction ports standard.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| PV2R3-76-L-RAA-31 | PV2R3 single vane pump, 76 cm3/rev, Foot mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 76 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R3-76-F-RAA-31 | PV2R3 single vane pump, 76 cm3/rev, Flange mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 76 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R3-94-L-RAA-31 | PV2R3 single vane pump, 94 cm3/rev, Foot mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 94 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R3-94-F-RAA-31 | PV2R3 single vane pump, 94 cm3/rev, Flange mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 94 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R3-116-L-RAA-31 | PV2R3 single vane pump, 116 cm3/rev, Foot mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 116 cm3/rev | Max Working Pressure: 21 MPa | Mounting: L = Foot type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) | ||
| PV2R3-116-F-RAA-31 | PV2R3 single vane pump, 116 cm3/rev, Flange mount, 21 MPa | Yuken | Series: PV2R3 | Type: Single Vane Pump | Theoretical Displacement: 116 cm3/rev | Max Working Pressure: 21 MPa | Mounting: F = Flange type | Rotation: R = Clockwise (standard, viewed from shaft end) | Discharge Port: A = Top (standard) | Suction Port: A = Top (standard) | Design No: 31 | Options: Counter-clockwise (reverse) rotation available to order (RFQ); Phosphate-ester fluid version available: prefix model code with 'F-' (fluoro-rubber seals) |
