• Autonics BJX Series Rectangular Photoelectric Sensors
1 1

Autonics BJX Series Rectangular Photoelectric Sensors

Autonics BJX Series Rectangular Photoelectric Sensors

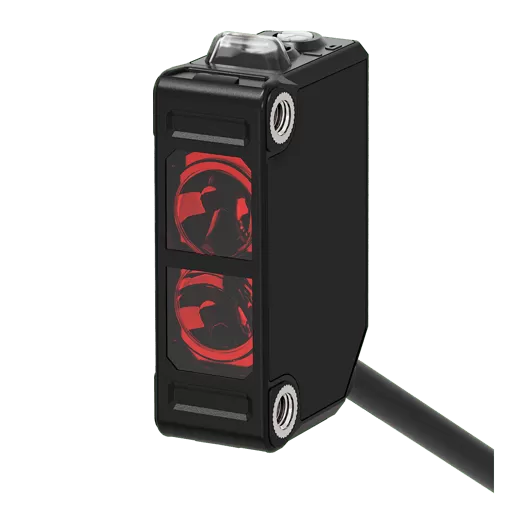

Rectangular photoelectric sensors W 11 x H 32 x L 20 mm with through-beam, polarized retroreflective, and diffuse reflective types.

Key features

  • Mirror Surface Rejection (M.S.R.) function on polarized type
  • Light/Dark ON switch
  • IP65 rated
  • Cable and M8 connector type variants
BJX7M-TDT-1 Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX7M-TDT-2 Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX7M-TDT-C1 Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX7M-TDT-C2 Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX10M-TDT-1 Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX10M-TDT-2 Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX10M-TDT-C1 Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX10M-TDT-C2 Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX15M-TDT-1 Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX15M-TDT-2 Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX15M-TDT-C1 Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX15M-TDT-C2 Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX3M-PDT-1 Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX3M-PDT-2 Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX3M-PDT-C1 Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX3M-PDT-C2 Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX100-DDT-1 Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX100-DDT-2 Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX100-DDT-C1 Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX100-DDT-C2 Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX300-DDT-1 Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX300-DDT-2 Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX300-DDT-C1 Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX300-DDT-C2 Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX1M-DDT-1 Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX1M-DDT-2 Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX1M-DDT-C1 Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX1M-DDT-C2 Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
PhotoelectricAutonics
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics BJX Series Rectangular Photoelectric Sensors

Brand Autonics·Photoelectric

Available part numbers (28)

BJX7M-TDT-1, BJX7M-TDT-2, BJX7M-TDT-C1, BJX7M-TDT-C2, BJX10M-TDT-1, BJX10M-TDT-2, BJX10M-TDT-C1, BJX10M-TDT-C2, BJX15M-TDT-1, BJX15M-TDT-2 + 18 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BJX7M-TDT-1Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX7M-TDT-2Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX7M-TDT-C1Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX7M-TDT-C2Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX10M-TDT-1Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX10M-TDT-2Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX10M-TDT-C1Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX10M-TDT-C2Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX15M-TDT-1Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX15M-TDT-2Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX15M-TDT-C1Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX15M-TDT-C2Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX3M-PDT-1Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX3M-PDT-2Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX3M-PDT-C1Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX3M-PDT-C2Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX100-DDT-1Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX100-DDT-2Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX100-DDT-C1Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX100-DDT-C2Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX300-DDT-1Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX300-DDT-2Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX300-DDT-C1Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX300-DDT-C2Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX1M-DDT-1Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX1M-DDT-2Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function
BJX1M-DDT-C1Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
BJX1M-DDT-C2Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function
