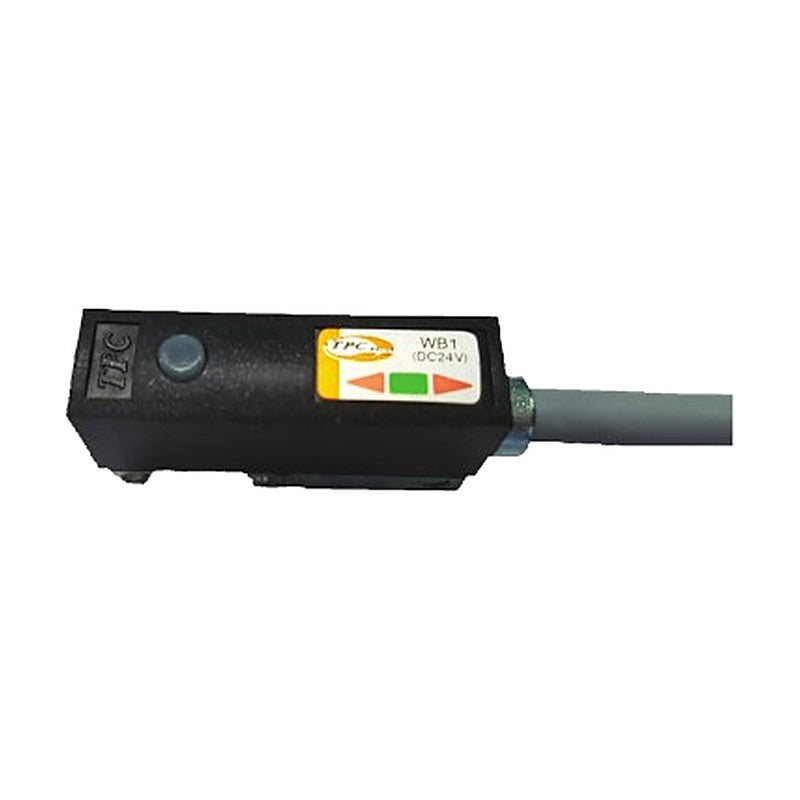

TPC Mechatronics WB1 Series Auto Switch (Magnetic Field Resistant, Solid-State 2-Wire)

TPC Mechatronics WB1 Series Auto Switch (Magnetic Field Resistant, Solid-State 2-Wire)

The WB1 is a magnetic-field-resistant solid-state 2-wire (non-polar) auto switch with a grommet lead for use near single-phase AC welders.

Key features

  • It is not suitable for DC inverter welders (including rectifier type), arc welders or capacitor welders
  • A two-color red/green/red LED shows the optimum setting position
  • Rated DC24V, 2-40 mA load current, IP67, 30G shock resistance, ambient temperature -10 to 80 C
  • Lead wire length (L: 3 m, Z: 5 m) and an optional transparent switch cover (C) are specified at order

Specifications

Contact Solid-state, 2-wire non-polar
Load voltage DC24V +/-15%
Load current 2-40 mA
Leakage current 0.6 mA
Max sensitivity position 17.5 mm
Operating range 8-10 mm
WB1 Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Leakage current: 0.6 mA | Max sensitivity position: 17.5 mm | Operating range: 8-10 mm
Auto SwitchesTPC Mechatronics
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics WB1 Series Auto Switch (Magnetic Field Resistant, Solid-State 2-Wire)

Brand TPC Mechatronics·Auto Switches

Available part numbers (1)

WB1

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WB1Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Leakage current: 0.6 mA | Max sensitivity position: 17.5 mm | Operating range: 8-10 mm
