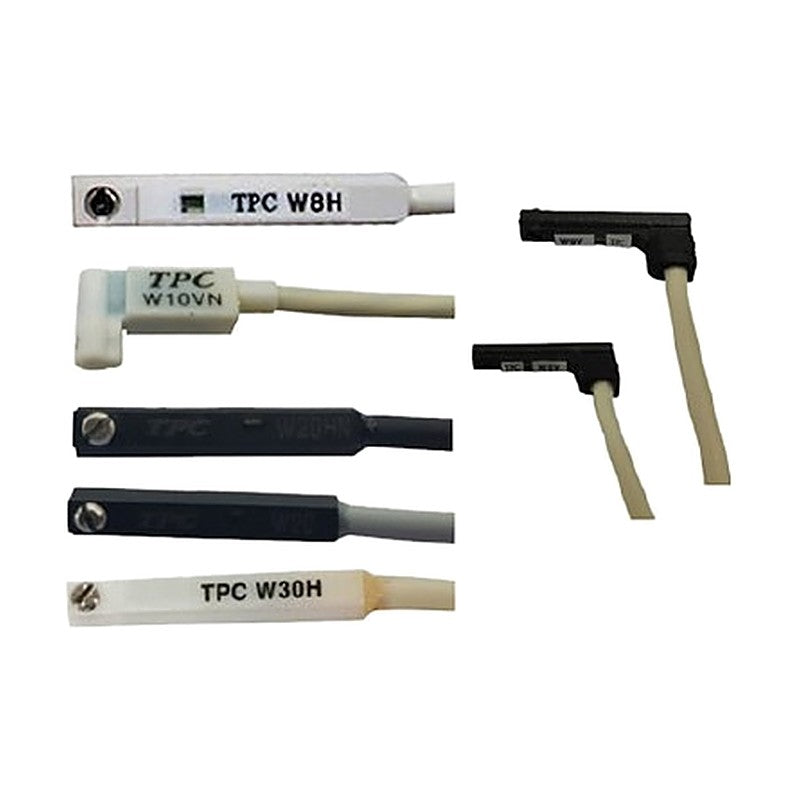

TPC Mechatronics W8 / W30 Series Compact Auto Switch (Direct Mount, Reed 2-Wire)

TPC Mechatronics W8 / W30 Series Compact Auto Switch (Direct Mount, Reed 2-Wire)

The W8 and W30 are compact 4 mm diameter reed 2-wire auto switches fixed directly in the cylinder switch groove with an M2.5 screw (0.05-0.1 Nm tightening torque).

Key features

  • A red LED lights when ON; operating time is 1.2 ms or less, with minimum operating flux 62 G and maximum 320 G
  • The W8 is available with horizontal (H) or vertical (V) lead wire, and the W30H is a horizontal-lead version rated IP69K
  • Standard lead wire is 1 m; a 3 m lead wire is available with the L suffix at order

Specifications

Contact Reed, 2-wire
Load voltage DC24V / AC110V
Load current 5-40 mA (DC24V) / 5-20 mA (AC110V)
Max sensitivity position 13 mm
Sensing range 7-11 mm
W8H Contact: Reed, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.4 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: Not stated
W8V Contact: Reed, 2-wire | Lead wire direction: Vertical | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.4 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: Not stated
W30H Contact: Reed, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.7 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: IP69K
Auto SwitchesTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics W8 / W30 Series Compact Auto Switch (Direct Mount, Reed 2-Wire)

Brand TPC Mechatronics·Auto Switches

Available part numbers (3)

W8H, W8V, W30H

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W8HContact: Reed, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.4 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: Not stated
W8VContact: Reed, 2-wire | Lead wire direction: Vertical | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.4 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: Not stated
W30HContact: Reed, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V / AC110V | Load current: 5-40 mA (DC24V) / 5-20 mA (AC110V) | Internal voltage drop: 2.7 V max | Max sensitivity position: 13 mm | Sensing range: 7-11 mm | Waterproofing: IP69K
