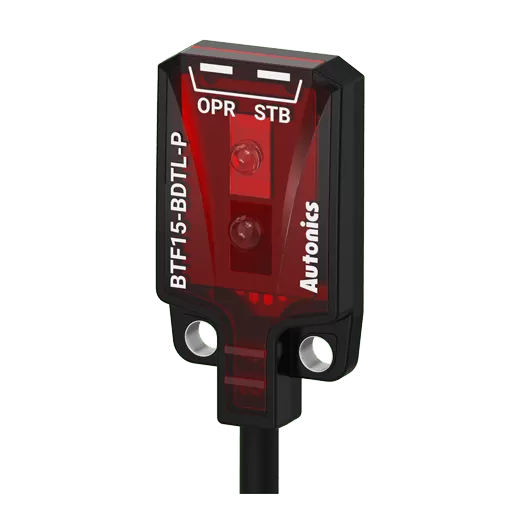

Autonics BTF Series L 3.7 mm Flat Photoelectric Sensors

Autonics BTF Series L 3.7 mm Flat Photoelectric Sensors

Ultra-thin L 3.7 mm flat photoelectric sensors.

Key features

  • Through-beam, BGS reflective, and diffuse reflective sensing types
  • Ideal for narrow-space installation
  • Cable type connection
BTF1M-TDT-1 Photoelectric sensor | BTF Series | Through-beam | 1 m | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF1M-TDT-2 Photoelectric sensor | BTF Series | Through-beam | 1 m | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF15-BDT-1 Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF15-BDT-2 Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF30-DDT-1 Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF30-DDT-2 Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
PhotoelectricAutonics
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics BTF Series L 3.7 mm Flat Photoelectric Sensors

Brand Autonics·Photoelectric

Available part numbers (6)

BTF1M-TDT-1, BTF1M-TDT-2, BTF15-BDT-1, BTF15-BDT-2, BTF30-DDT-1, BTF30-DDT-2

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTF1M-TDT-1Photoelectric sensor | BTF Series | Through-beam | 1 m | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF1M-TDT-2Photoelectric sensor | BTF Series | Through-beam | 1 m | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF15-BDT-1Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF15-BDT-2Photoelectric sensor | BTF Series | BGS reflective | up to 15 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF30-DDT-1Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | NPN open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
BTF30-DDT-2Photoelectric sensor | BTF Series | Diffuse reflective | 30 mm | PNP open collector | 12-24 VDC | Cable type | - | L 3.7 mm flat body
