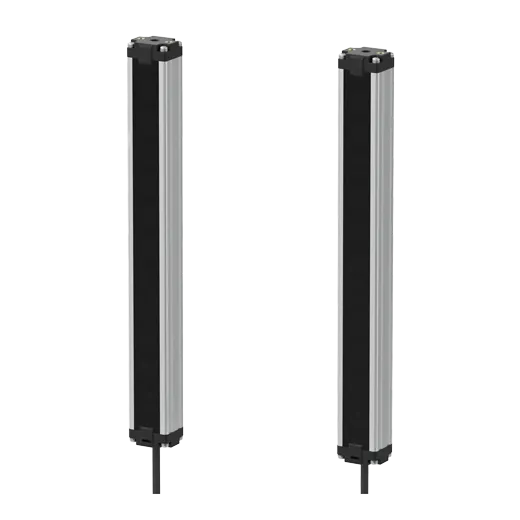

Autonics BW Series Single-Beam Area Sensors

Single-beam (parallel) area sensors with multiple optical axes (8 to 40 axes).

Key features

Standard area detection for general-purpose use
Adjustable mounting brackets
NPN/PNP output
IP54 rated

BW20-08		Area sensor \| BW Series \| Single-beam through-beam \| 8 axes / 140 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-08P		Area sensor \| BW Series \| Single-beam through-beam \| 8 axes / 140 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-12		Area sensor \| BW Series \| Single-beam through-beam \| 12 axes / 220 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-12P		Area sensor \| BW Series \| Single-beam through-beam \| 12 axes / 220 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-16		Area sensor \| BW Series \| Single-beam through-beam \| 16 axes / 300 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-16P		Area sensor \| BW Series \| Single-beam through-beam \| 16 axes / 300 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-20		Area sensor \| BW Series \| Single-beam through-beam \| 20 axes / 380 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-20P		Area sensor \| BW Series \| Single-beam through-beam \| 20 axes / 380 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-24		Area sensor \| BW Series \| Single-beam through-beam \| 24 axes / 460 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-24P		Area sensor \| BW Series \| Single-beam through-beam \| 24 axes / 460 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-32		Area sensor \| BW Series \| Single-beam through-beam \| 32 axes / 620 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-32P		Area sensor \| BW Series \| Single-beam through-beam \| 32 axes / 620 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-40		Area sensor \| BW Series \| Single-beam through-beam \| 40 axes / 780 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
BW20-40P		Area sensor \| BW Series \| Single-beam through-beam \| 40 axes / 780 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose

Area SensorAutonics

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics BW Series Single-Beam Area Sensors

Brand Autonics·Area Sensor

Available part numbers (14)

BW20-08, BW20-08P, BW20-12, BW20-12P, BW20-16, BW20-16P, BW20-20, BW20-20P, BW20-24, BW20-24P + 4 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	BW20-08	Area sensor \| BW Series \| Single-beam through-beam \| 8 axes / 140 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-08P	Area sensor \| BW Series \| Single-beam through-beam \| 8 axes / 140 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-12	Area sensor \| BW Series \| Single-beam through-beam \| 12 axes / 220 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-12P	Area sensor \| BW Series \| Single-beam through-beam \| 12 axes / 220 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-16	Area sensor \| BW Series \| Single-beam through-beam \| 16 axes / 300 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-16P	Area sensor \| BW Series \| Single-beam through-beam \| 16 axes / 300 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-20	Area sensor \| BW Series \| Single-beam through-beam \| 20 axes / 380 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-20P	Area sensor \| BW Series \| Single-beam through-beam \| 20 axes / 380 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-24	Area sensor \| BW Series \| Single-beam through-beam \| 24 axes / 460 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-24P	Area sensor \| BW Series \| Single-beam through-beam \| 24 axes / 460 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-32	Area sensor \| BW Series \| Single-beam through-beam \| 32 axes / 620 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-32P	Area sensor \| BW Series \| Single-beam through-beam \| 32 axes / 620 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-40	Area sensor \| BW Series \| Single-beam through-beam \| 40 axes / 780 mm \| NPN open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
	BW20-40P	Area sensor \| BW Series \| Single-beam through-beam \| 40 axes / 780 mm \| PNP open collector \| 12-24 VDC \| Cable type \| IP54 \| parallel beam general purpose
