• Autonics PRFD Series Cylindrical Inductive Full-Metal Long-Distance Proximity Sensors
1 1

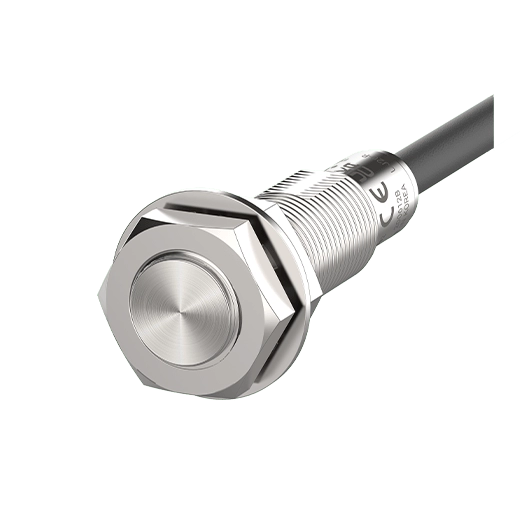

Autonics PRFD Series Cylindrical Inductive Full-Metal Long-Distance Proximity Sensors

Autonics PRFD Series Cylindrical Inductive Full-Metal Long-Distance Proximity Sensors

Full-metal stainless body cylindrical inductive proximity sensors for harsh environments.

Key features

  • Long-distance sensing
  • DC 3-wire (NPN/PNP), DC 2-wire, and IO-Link variants
  • M8/M12/M18/M30 sizes
  • IP67 rated
PRFD8-2DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD8-2DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM8-2DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM8-2DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD12-4DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD12-4DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM12-4DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM12-4DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD18-7DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD18-7DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM18-7DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM18-7DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD30-15DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD30-15DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM30-15DN Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM30-15DP Inductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD12-4A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM12-4A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFD18-7A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM18-7A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFD30-15A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM30-15A Inductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFDCM12-4DI Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M12, 4 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal
PRFDCM18-7DI Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M18, 7 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal
PRFDCM30-15DI Inductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M30, 15 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal
ProximityAutonics
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics PRFD Series Cylindrical Inductive Full-Metal Long-Distance Proximity Sensors

Brand Autonics·Proximity

Available part numbers (25)

PRFD8-2DN, PRFD8-2DP, PRFDCM8-2DN, PRFDCM8-2DP, PRFD12-4DN, PRFD12-4DP, PRFDCM12-4DN, PRFDCM12-4DP, PRFD18-7DN, PRFD18-7DP + 15 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PRFD8-2DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD8-2DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM8-2DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM8-2DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M8, 2 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD12-4DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD12-4DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM12-4DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM12-4DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M12, 4 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD18-7DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD18-7DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM18-7DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM18-7DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M18, 7 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD30-15DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFD30-15DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | Cable type | IP67 | stainless full-metal body
PRFDCM30-15DNInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire NPN open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFDCM30-15DPInductive proximity sensor | PRFD Series | Long-distance full-metal flush | M30, 15 mm | DC 3-wire PNP open collector | 10-30 VDC | M12 connector type | IP67 | stainless full-metal body
PRFD12-4AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM12-4AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M12, 4 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFD18-7AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM18-7AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M18, 7 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFD30-15AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | Cable type | IP67 | 2-wire full-metal
PRFDCM30-15AInductive proximity sensor | PRFD Series | Long-distance full-metal flush DC 2-wire | M30, 15 mm | DC 2-wire | 10-30 VDC | M12 connector type | IP67 | 2-wire full-metal
PRFDCM12-4DIInductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M12, 4 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal
PRFDCM18-7DIInductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M18, 7 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal
PRFDCM30-15DIInductive proximity sensor | PRFD Series | Long-distance full-metal flush IO-Link | M30, 15 mm | IO-Link / SIO mode | 10-30 VDC | M12 connector type | IP67 | IO-Link full-metal

Need a different model, or a part not listed here? Send us your parts list →
