• Autonics PSAN Series Display Type Pressure Sensors
1 1

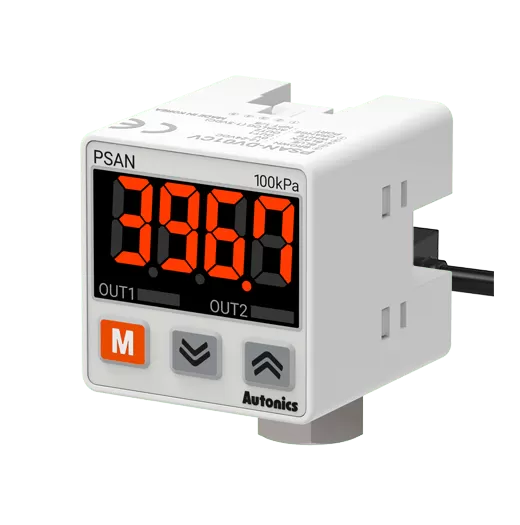

Autonics PSAN Series Display Type Pressure Sensors

Autonics PSAN Series Display Type Pressure Sensors

Display type pressure sensors with 7-segment LED 4½ digit display.

Key features

  • Negative, positive low, high pressure, and compound pressure variants
  • Pneumatic (air) and fluid (SUS316L) body types
  • Auto-shift function for original pressure changes
  • Hold function and external input
  • NPN/PNP and optional analog output
PSAN-CV01P-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CV01PA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-CV01N-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CV01NA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-BV01CP-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BV01CPA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-BV01CN-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BV01CNA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-C01P-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C01PA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-C01N-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C01NA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-B01CP-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B01CPA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-B01CN-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B01CNA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-C1P-A Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C1PA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-C1N-A Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C1NA-A Pressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-B1CP-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B1CPA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-B1CN-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B1CNA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-CC01P-A Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CC01PA-A Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-CC01N-A Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CC01NA-A Pressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-BC01CP-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BC01CPA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-BC01CN-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BC01CNA-A Pressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
Pressure SensorAutonics
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics PSAN Series Display Type Pressure Sensors

Brand Autonics·Pressure Sensor

Available part numbers (32)

PSAN-CV01P-A, PSAN-CV01PA-A, PSAN-CV01N-A, PSAN-CV01NA-A, PSAN-BV01CP-A, PSAN-BV01CPA-A, PSAN-BV01CN-A, PSAN-BV01CNA-A, PSAN-C01P-A, PSAN-C01PA-A + 22 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSAN-CV01P-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CV01PA-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-CV01N-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CV01NA-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-BV01CP-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BV01CPA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-BV01CN-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BV01CNA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to -101.3 kPa (Negative pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-C01P-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C01PA-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-C01N-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C01NA-APressure sensor | PSAN Series | Display type pneumatic body | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-B01CP-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B01CPA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-B01CN-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B01CNA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0.0 to 100.0 kPa (Static positive low) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-C1P-APressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C1PA-APressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-C1N-APressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-C1NA-APressure sensor | PSAN Series | Display type pneumatic body | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-B1CP-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B1CPA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-B1CN-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-B1CNA-APressure sensor | PSAN Series | Display type fluid body SUS316L | 0 to 1000 kPa (Static high pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-CC01P-APressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CC01PA-APressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-CC01N-APressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP40 | single display
PSAN-CC01NA-APressure sensor | PSAN Series | Display type pneumatic body | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP40 | single display with analog output
PSAN-BC01CP-APressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BC01CPA-APressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | PNP open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
PSAN-BC01CN-APressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector no analog | 12-24 VDC | Connector/Cable | IP65 | single display
PSAN-BC01CNA-APressure sensor | PSAN Series | Display type fluid body SUS316L | -101.3 to 100.0 kPa (Compound pressure) | NPN open collector + analog 4-20 mA + 1-5 V | 12-24 VDC | Connector/Cable | IP65 | single display with analog output
