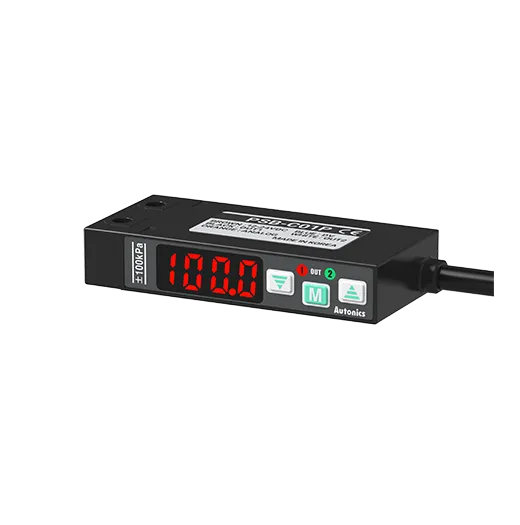

Autonics PSB Series Display Type Pressure Sensors

Autonics PSB Series Display Type Pressure Sensors

Compact display type pressure sensors with 4-digit LED display.

Key features

  • Negative, positive, and compound pressure variants
  • Pneumatic body for air and non-corrosive gas
  • Cost-effective alternative to PSAN Series with similar performance
PSB-V01P Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-V01P-A Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-V01N Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-V01N-A Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-01P Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-01P-A Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-01N Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-01N-A Pressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-1P Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-1P-A Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-1N Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-1N-A Pressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-C01P Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-C01P-A Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-C01N Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-C01N-A Pressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
Pressure SensorAutonics
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics PSB Series Display Type Pressure Sensors

Brand Autonics·Pressure Sensor

Available part numbers (16)

PSB-V01P, PSB-V01P-A, PSB-V01N, PSB-V01N-A, PSB-01P, PSB-01P-A, PSB-01N, PSB-01N-A, PSB-1P, PSB-1P-A + 6 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PSB-V01PPressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-V01P-APressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-V01NPressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-V01N-APressure sensor | PSB Series | Compact display pneumatic | 0.0 to -101.3 kPa (Negative) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-01PPressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-01P-APressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-01NPressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-01N-APressure sensor | PSB Series | Compact display pneumatic | 0.0 to 100.0 kPa (Positive low) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-1PPressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-1P-APressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-1NPressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-1N-APressure sensor | PSB Series | Compact display pneumatic | 0 to 1000 kPa (Positive high) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-C01PPressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-C01P-APressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | PNP open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
PSB-C01NPressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector | 12-24 VDC | Connector | IP40 | compact body
PSB-C01N-APressure sensor | PSB Series | Compact display pneumatic | -101.3 to 100.0 kPa (Compound) | NPN open collector + analog | 12-24 VDC | Connector | IP40 | compact body with analog
