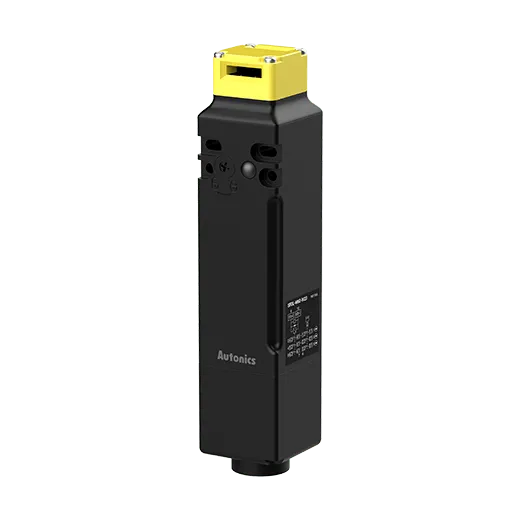

Autonics SFDL Series Safety Door Lock Switches

Safety door lock switches with rotatable head for 5-direction operation key insertion. 4/5/6-contact options, terminal and M12 connector types.

Key features

Manual unlock function (release key)
Locking pullout strength ≥ 1300 N
Mechanical life ≥ 1,000,000 operations
Standard cross-type and special rotating release keys
IEC/EN 60947-5-1, EN ISO 14119, GS-ET-15, UL 508, S-Mark certified
IP67 rated

SFDL-MAA-24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
SFDL-MAA-C24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
SFDL-MBB-24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2B2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
SFDL-MBB-C24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2B2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
SFDL-MAB-24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
SFDL-MAB-C24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
SFDL-SAA-24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
SFDL-SAA-C24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
SFDL-SAB-24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
SFDL-SAB-C24		Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion

Door SwitchAutonics

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics SFDL Series Safety Door Lock Switches

Brand Autonics·Door Switch

Available part numbers (10)

SFDL-MAA-24, SFDL-MAA-C24, SFDL-MBB-24, SFDL-MBB-C24, SFDL-MAB-24, SFDL-MAB-C24, SFDL-SAA-24, SFDL-SAA-C24, SFDL-SAB-24, SFDL-SAB-C24

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	SFDL-MAA-24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
	SFDL-MAA-C24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
	SFDL-MBB-24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2B2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
	SFDL-MBB-C24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 4-contact 2B2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
	SFDL-MAB-24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
	SFDL-MAB-C24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| power-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
	SFDL-SAA-24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
	SFDL-SAA-C24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 4-contact 2A2B 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
	SFDL-SAB-24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| Terminal \| IP67 \| metallic head 5-direction insertion
	SFDL-SAB-C24	Safety door lock switch \| SFDL Series \| Door lock with rotatable head \| spring-to-unlock 5-contact 2A2B+1A 24 VDC \| Mechanical contact \| 24 VDC solenoid \| M12 connector \| IP67 \| metallic head 5-direction insertion
