• Autonics TC Series Single Display PID Temperature Controllers
1 1

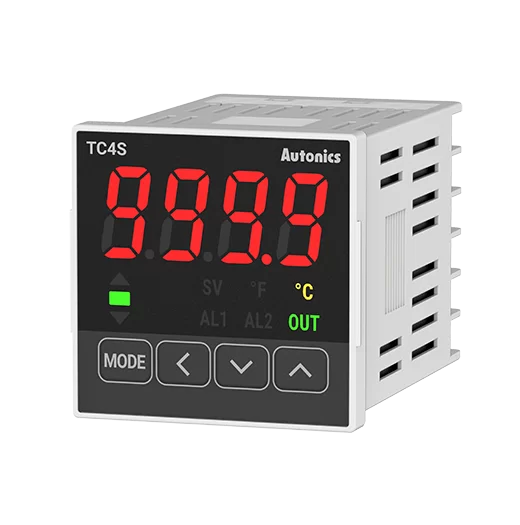

Autonics TC Series Single Display PID Temperature Controllers

Autonics TC Series Single Display PID Temperature Controllers

Single display PID temperature controllers.

Key features

  • Cost-effective basic temperature control with auto-tuning PID
  • Universal input
  • Various sizes
  • Front-side parameter setting
TC-4S-R Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-S Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-V Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-C Temperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-R Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-S Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-V Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-C Temperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-R Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-S Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-V Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-C Temperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-R Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-S Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-V Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-C Temperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-R Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-S Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-V Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-C Temperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
Temperature ControllerAutonics
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics TC Series Single Display PID Temperature Controllers

Brand Autonics·Temperature Controller

Available part numbers (20)

TC-4S-R, TC-4S-S, TC-4S-V, TC-4S-C, TC-4M-R, TC-4M-S, TC-4M-V, TC-4M-C, TC-4Y-R, TC-4Y-S + 10 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TC-4S-RTemperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-STemperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-VTemperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4S-CTemperature controller | TC Series | PID W 48 x H 96 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-RTemperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-STemperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-VTemperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4M-CTemperature controller | TC Series | PID W 48 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-RTemperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-STemperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-VTemperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4Y-CTemperature controller | TC Series | PID W 72 x H 36 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-RTemperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-STemperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-VTemperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4W-CTemperature controller | TC Series | PID W 96 x H 48 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-RTemperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Relay | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-STemperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (12 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-VTemperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | SSR drive (24 VDC) | 100-240 VAC | Screw terminal | IP50 front | display + setting
TC-4N-CTemperature controller | TC Series | PID W 48 x H 24 mm panel mount | universal RTD/TC input | Current 4-20 mA | 100-240 VAC | Screw terminal | IP50 front | display + setting
